Product Details | CARTRIDGE FUSE

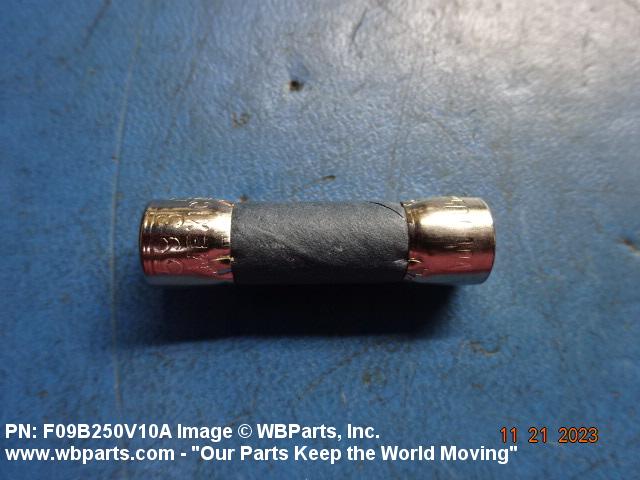

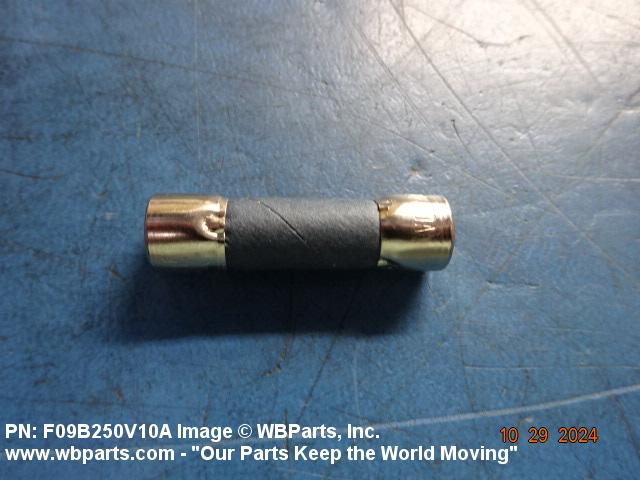

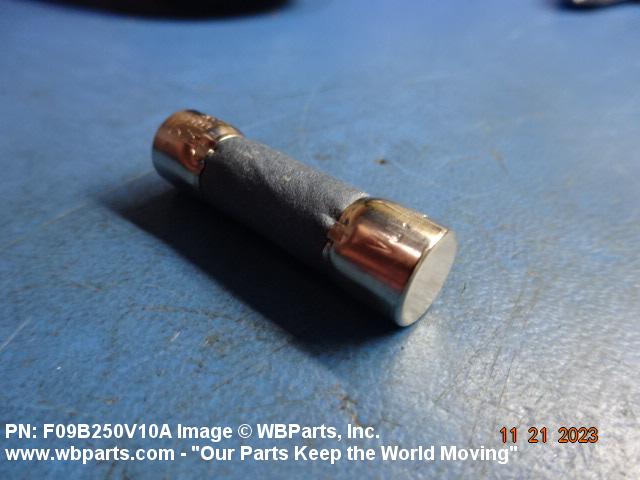

5920-00-688-4085 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: MS9008311, MS90083-11, MS9008566, MS90085-66, MEN10, MEN-10, BAF10, S11500332, S115-0033-2, STC010080019, STC10080019, W1050215, W-10502-15, X01482, X014-8-2, QL0009226, F02B250V10A, F07A10R0B, F07B32V10A, F09B250V 10A, F09B250V10A, FLM10, FNM10, MILF1516007, MILF15160-07, MILF151609, MILF15160-9, MIL-PRF-15160/9, MILPRF151609, MIL-PRF-15160G/9, MILPRF15160G9, 0107669, 10 AMPFU3-4, 10080019, 107669, 10AMPFU34, 11022791, 182099F1C , 23601018, 2360-1018, 2R83P131, 0010080019, 4914875-03, 85-33033-02, 90659001, 90659-001, 5920-00-688-4085, 00-688-4085, 5920006884085, 006884085, 853303302, 491487503
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-688-4085 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-688-4085
Demand History | NSN 5920-00-688-4085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F09B250V10A | 2023-10-284 | 7 | United States |
| F09B250V10A | 2023-10-284 | 60 | United States |
| 5920-00-688-4085 | 2022-12-346 | 1442 | DIBBS |
| 5920-00-688-4085 | 2020-05-139 | 1529 | DIBBS |
| 5920-00-688-4085 | 2020-05-124 | 1529 | DIBBS |
| 5920006884085 | 2018-03-67 | 100 | US |
| 5920-00-688-4085 | 2016-12-355 | 1121 | DIBBS |
| 5920006884085 | 2016-11-335 | 10 | France |
| 5920-00-688-4085 | 2011-01-24 | 1531 | DIBBS |
| 5920-00-688-4085 | 2010-10-301 | 1749 | DIBBS |
| 5920-00-688-4085 | 2010-08-239 | 1265 | DIBBS |
| 5920-00-688-4085 | 2007-09-250 | 3334 | DIBBS |
Cross Reference | NSN 5920-00-688-4085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0010080019 | 55299 | STORAGE TECHNOLOGY CORPORATION DBA STORAGETEK |
| 0107669 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 10 AMPFU3-4 | 71400 | COOPER BUSSMANN INC |
| 10080019 | 55299 | STORAGE TECHNOLOGY CORPORATION DBA STORAGETEK |
| 107669 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 11022791 | 59678 | US ARMY ARMAMENT RESEARCH DEVELOPEMENT ENGINEERING |
| 14582 | 75377 | KURZ & ROOT GENERATOR COMPANY LLC |
| 2360-1018 | 94080 | AIRCO WELDING PRODUCTS DIV OF BOC GROUP INC |
| 2R83P131 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 4914875-03 | 50544 | I S S DIV OF SPERRY UNIVAC |
| 85-33033-02 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 90659-001 | 29834 | GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION |
| BAF10 | 71400 | COOPER BUSSMANN INC |
| F02B250V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F07A10R0B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F07B32V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F09B250V 10A | 71400 | COOPER BUSSMANN INC |
| F09B250V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FLM10 | 75915 | LITTELFUSE, INC. |
| FNM10 | 71400 | COOPER BUSSMANN INC |
| MEN-10 | 71956 | RELIANCE ELECTRIC COMPANY DBA RELIANCE & DODGE BRANDS |
| MEN10 | 72076 | FEDERAL PACIFIC ELECTRIC CO ECONOMY FUSE DIV |
| MIL-PRF-15160/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-15160G/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF15160-07 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF15160-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS90083-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS90085-66 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| QL0009226 | 64145 | ILFORD PHOTO CORP |
| S115-0033-2 | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| STC010080019 | 33322 | GETRONICS GOVERNMENT SOLUTIONS LLC |
| STC10080019 | 33322 | GETRONICS GOVERNMENT SOLUTIONS LLC |
| TRM10 | 71424 | FERRAZ SHAWMUT INC |
| W-10502-15 | 28835 | HOBART BROS CO |
| X014-8-2 | 28398 | ENERSYS INC. DIV HERTNER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-688-4085
Related Products | NSN 5920-00-688-4085
Technical Data | NSN 5920-00-688-4085
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

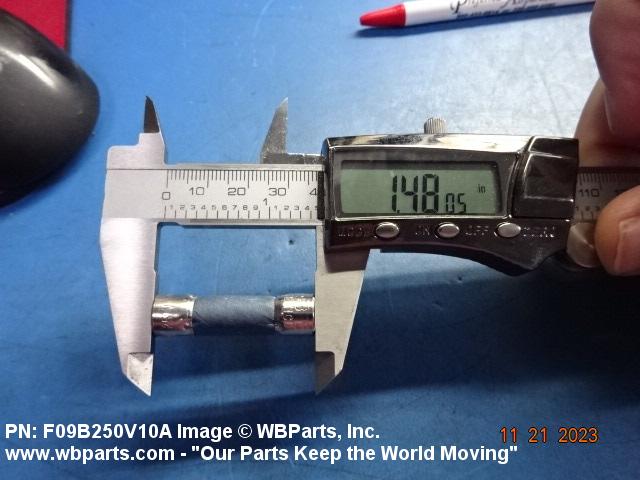

| OVERALL LENGTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |

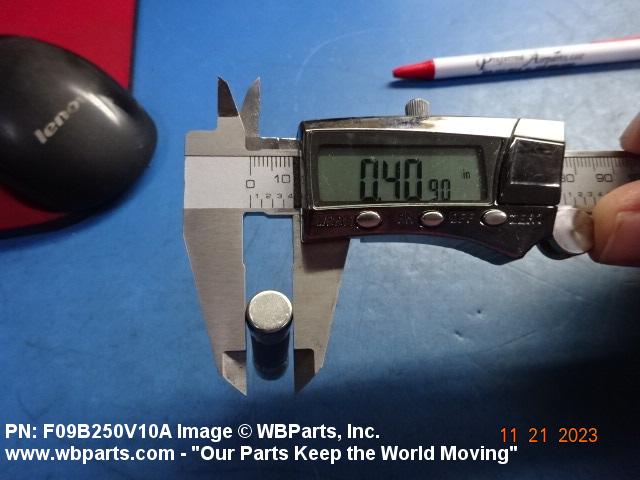

| OVERALL DIAMETER | 0.402 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
