NSN 5920-00-687-1896 ASC1562095, HPC-D, HPCHRSTAA77

Product Details | EXTRACTOR POST FUSEHOLDER

5920-00-687-1896 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).

Part Alternates: ASC1562095, HPC-D, HPCHRSTAA77, HPCHRSTAA7-7, MIL-F-19207/13, MILF1920713, MIL-PRF-19207/13, MILPRF1920713, PL1975349 IT. 17, PL1975349IT17, PL1976054 IT. 7, PL1976054IT7, VBE861N23W, XNC024X147, XNC24X147, FHN236, FHN23W, FHN23WB, HPCD, 4134600-17, 4197302, 419730-2, 422761, 571006, 10399010124, 1039-90101-24, 1090459, 2218632, 3440022, 344-0022, 3465089001 , 352250005285, 00-344138-00003, 377-160-165, 4134600017, 4134600-017, 5944621, 594462-1, 632779, 5920-00-687-1896, 00-687-1896, 0034413800003, 5920006871896, 006871896, 413460017, 377160165

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-687-1896	28909 ( FUSEHOLDER, EXTRACTOR POST )

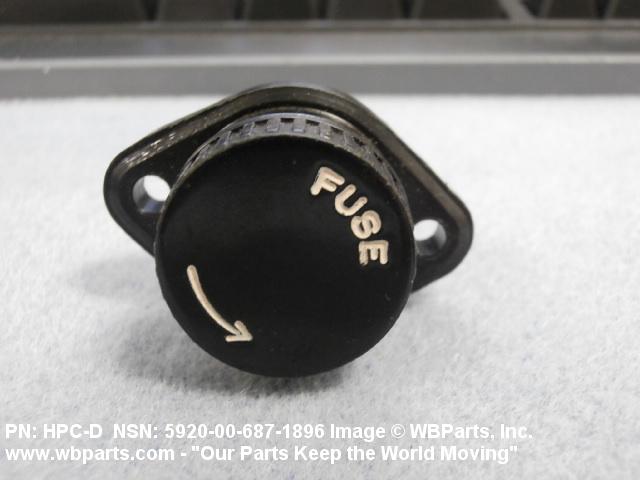

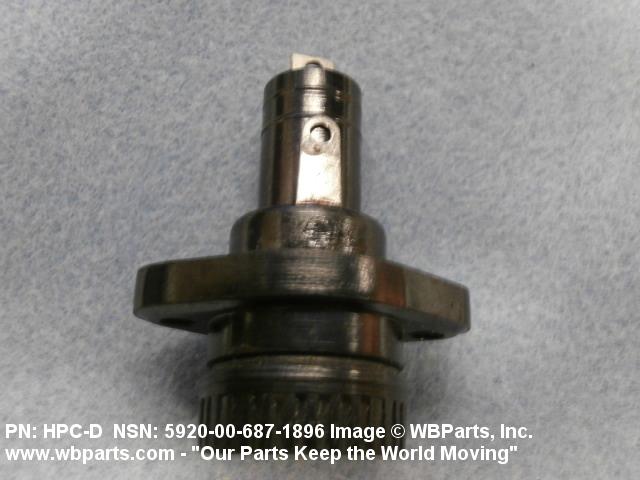

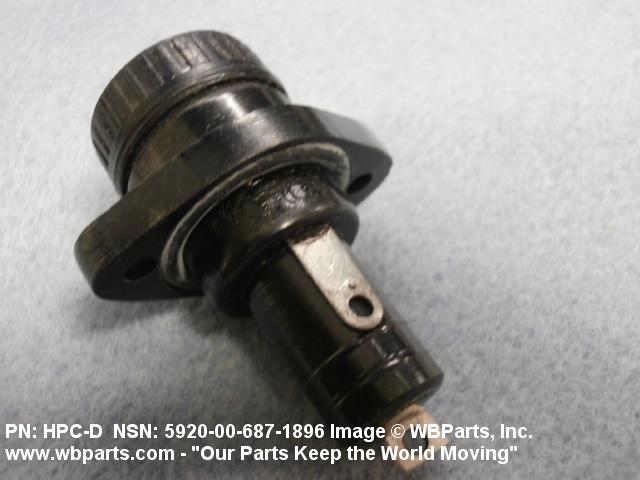

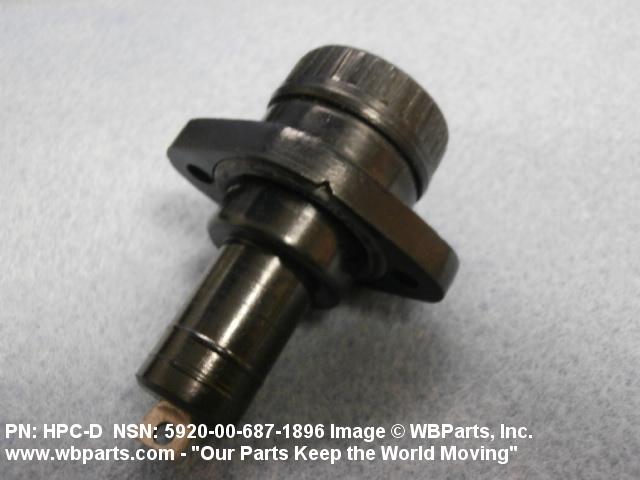

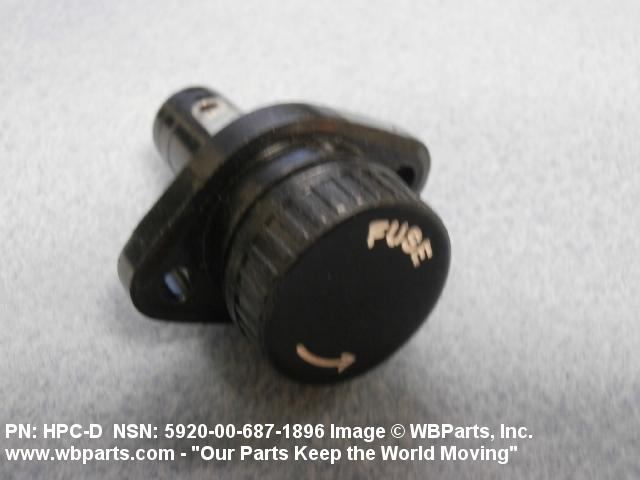

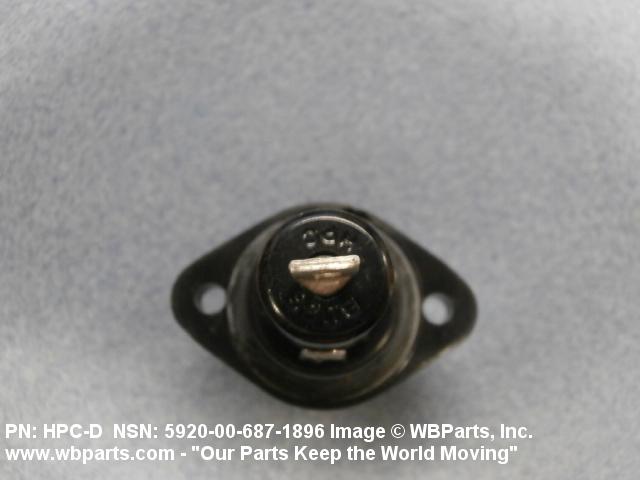

Drawings & Photos | NSN 5920-00-687-1896

Part Number	Request Date	QTY	Origin
5920-00-687-1896	2020-08-232	6	United States
5920-00-687-1896	2020-08-232	15	United States
5920-00-687-1896	2020-08-232	26	United States
5920-00-687-1896	2020-08-232	51	United States
5920-00-687-1896	2014-01-09	88	DIBBS
5920-00-687-1896	2013-09-268	59	DIBBS
5920-00-687-1896	2013-07-212	80	DIBBS
5920-00-687-1896	2013-06-167	76	DIBBS
5920-00-687-1896	2013-02-58	53	DIBBS
5920-00-687-1896	2012-05-151	135	DIBBS
5920-00-687-1896	2010-12-342	20	United States
5920-00-687-1896	2010-10-299	5	ES
5920-00-687-1896	2010-08-242	68	DIBBS
5920-00-687-1896	2009-10-275	79	DIBBS
5920-00-687-1896	2009-09-271	81	DIBBS
5920-00-687-1896	2008-09-270	158	DIBBS
5920-00-687-1896	2007-02-51	128	DIBBS
5920-00-687-1896	2006-06-170	20	DIBBS
5920-00-687-1896	2006-06-165	0	DIBBS

Cross Reference | NSN 5920-00-687-1896

Part Number	Cage Code	Manufacturer
00-344138-00003	28873	HOBART CORPORATION DBA HOBART
1039-90101-24	53529	JBF SCIENTIFIC CORP
1090459	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
2218632	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
344-0022	50664	SYSTEM INDUSTRIES INC
3465089001	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
352250005285	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
377-160-165	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
4134600-017	05869	RAYTHEON COMPANY DBA RAYTHEON
4134600-17	05869	RAYTHEON COMPANY DBA RAYTHEON
419730-2	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
422761	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
571006	75915	LITTELFUSE, INC.
594462-1	49956	RAYTHEON COMPANY DBA RAYTHEON
632779	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
ASC1562095	Z4779	ASC PTY LTD
FHN236	71400	COOPER BUSSMANN INC
FHN23W	71400	COOPER BUSSMANN INC
FHN23W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FHN23WB	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
HPC-D	54426	BUSS SYSTEMS INC
HPCHRSTAA7-7	71400	COOPER BUSSMANN INC
MIL-F-19207/13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-19207/13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PL1975349 IT. 17	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
PL1976054 IT. 7	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
VBE861N23W	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
XNC024X147	28873	HOBART CORPORATION DBA HOBART
XNC24X147	28873	HOBART CORPORATION DBA HOBART

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-687-1896

Compare

Related Products | NSN 5920-00-687-1896

5920-00-687-1928, 5920-00-687-2025, 5920-00-687-2064, 5920-00-687-2066, 5920-00-687-2198

Technical Data | NSN 5920-00-687-1896

Characteristic	Specifications
FUSE ACCOMMODATION QUANTITY	1
CURRENT CARRYING RATING IN AMPS	30.0
VOLTAGE IN VOLTS	250.0
FUSE TERMINAL TYPE ACCOMMODATED	FERRULE
TERMINAL TYPE AND QUANTITY	2 TAB, SOLDER LUG
CONTACT MATERIAL	ANY ACCEPTABLE
CONTACT SURFACE TREATMENT	SILVER PLATED, QQ-S-365
BODY STYLE	D19 FRONT PANEL MOUNTED TYPE
OVERALL LENGTH	2.484 INCHES MAXIMUM
OVERALL HEIGHT	1.760 INCHES MINIMUM AND 1.800 INCHES MAXIMUM
OVERALL WIDTH	1.180 INCHES MINIMUM AND 1.220 INCHES MAXIMUM
LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE	0.830 INCHES MINIMUM AND 0.870 INCHES MAXIMUM
CAP DIAMETER	1.010 INCHES MINIMUM AND 1.050 INCHES MAXIMUM
MOUNTING HOLE STYLE	F15 BUSHING MOUNTING W/2 HOLES
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH	1.307 INCHES MINIMUM AND 1.317 INCHES MAXIMUM
BUSHING HOLE DIAMETER	0.870 INCHES MINIMUM AND 0.910 INCHES MAXIMUM
MOUNTING HOLE QUANTITY	2
MOUNTING HOLE DIAMETER	0.170 INCHES MINIMUM AND 0.210 INCHES MAXIMUM
ACCOMMODATED FUSE LENGTH	1.500 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER	0.406 INCHES NOMINAL
ENVIRONMENTAL PROTECTION	WATERTIGHT
TEST DATA DOCUMENT	81349-MIL-F-19207/13 SPECIFICATION
III TERMINAL SURFACE TREATMENT	SOLDER DIP AND TIN PLATED
III BODY MATERIAL	PLASTIC, DIALLYL PHTHALATE, MIL-M-14, TYPE SDG
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FHN23W
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-19207/13

Restrictions/Controls & Freight Information | NSN 5920-00-687-1896

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5920-00-687-1896

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
