Product Details | BLOCK FUSEHOLDER
5920-00-686-0374 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: 456010, 5920-00-686-0374, 00-686-0374, 5920006860374, 006860374
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-686-0374 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-00-686-0374
Cross Reference | NSN 5920-00-686-0374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 456010 | 75915 | LITTELFUSE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-686-0374
Related Products | NSN 5920-00-686-0374
Technical Data | NSN 5920-00-686-0374
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 10 |
| CURRENT CARRYING RATING IN AMPS | 3.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 20 SCREW |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER PLATED |
| BODY STYLE | C9 CLIP CONNECTED TYPE |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.844 INCHES NOMINAL |
| OVERALL WIDTH | 2.469 INCHES NOMINAL |
| BASE THICKNESS | 0.219 INCHES NOMINAL |

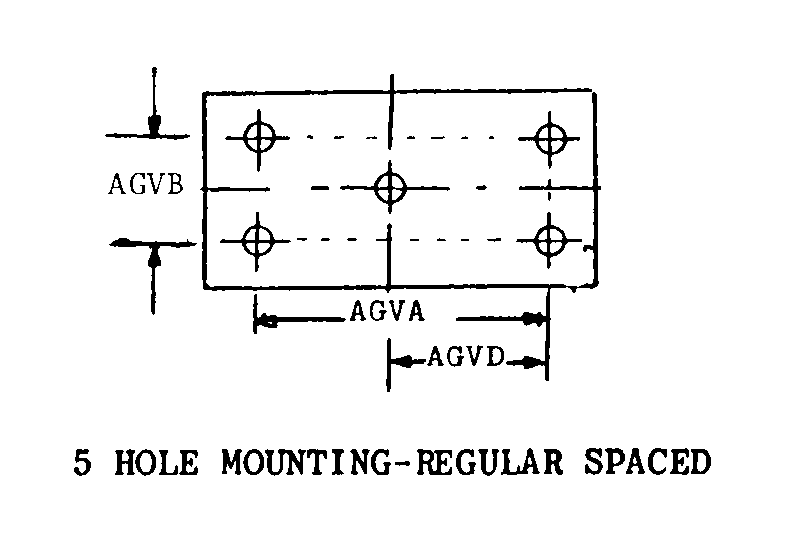

| MOUNTING HOLE STYLE | F10 5 HOLE MOUNTING-REGULAR SPACED |
