NSN 5920-00-564-3549 WF791, W-F-791, WF7913028
Product Details | PLUG FUSE
5920-00-564-3549 A fuse which mounts by means of a screw base.
Part Alternates: WF791, W-F-791, WF7913028, W-F-791-3-028, S14, 5920-00-564-3549, 00-564-3549, 5920005643549, 005643549
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-564-3549 | 00388 ( FUSE, PLUG ) |

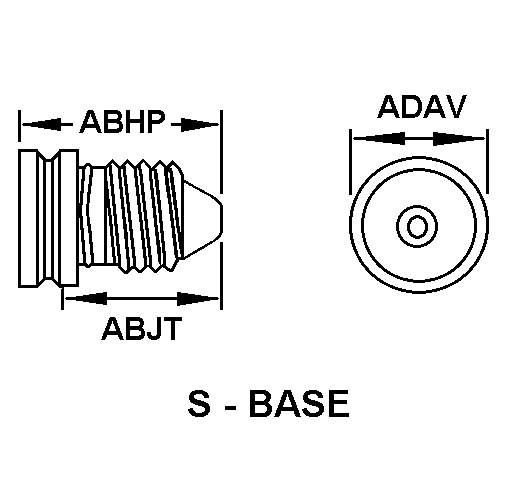

Drawings & Photos | NSN 5920-00-564-3549
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-564-3549
Related Products | NSN 5920-00-564-3549
Technical Data | NSN 5920-00-564-3549
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2E S-BASE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| TERMINAL LENGTH | 0.687 INCHES MINIMUM AND 0.719 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 14.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 30.0 250 PCT OF CURRENT RATING |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TEST DATA DOCUMENT | 81348-WF791-3-028 SPECIFICATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-F-791 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-F-791-3-028 |
Restrictions/Controls & Freight Information | NSN 5920-00-564-3549
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
