NSN 5920-00-510-7620 8719, 00-510-7620, 005107620
Product Details | RECEPTACLE FUSEHOLDER
5920-00-510-7620 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.
Part Alternates: 8719, 5920-00-510-7620, 00-510-7620, 5920005107620, 005107620
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-510-7620 | 28910 ( FUSEHOLDER, RECEPTACLE ) |
Drawings & Photos | NSN 5920-00-510-7620
Cross Reference | NSN 5920-00-510-7620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8719 | 75582 | LEVITON MANUFACTURING CO., INC. DBA LEVITON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-510-7620
Technical Data | NSN 5920-00-510-7620
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 125.0 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| CONTACT MATERIAL | COPPER |

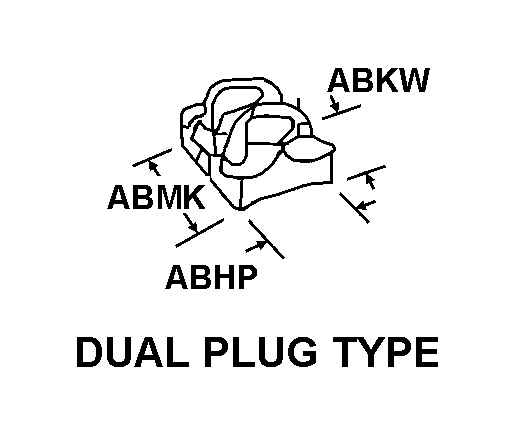

| BODY STYLE | E3 DUAL PLUG TYPE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.625 INCHES NOMINAL |
| MOUNTING HOLE STYLE | F28 IN-LINE ALONG THE LENGTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.750 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 2 POLE, MAINLINE, FUSED |
Restrictions/Controls & Freight Information | NSN 5920-00-510-7620
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
