NSN 5920-00-504-0564 B446475, B44-647-5, 24370281
Product Details | BLOCK FUSEHOLDER
5920-00-504-0564 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: B446475, B44-647-5, 24370281, 2437028-1, 441168, 44-1168, 44647, 44-647, 446475, 44-647-5, 5920-00-504-0564, 00-504-0564, 5920005040564, 005040564
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUL 1974 | 00-504-0564 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-00-504-0564
Demand History | NSN 5920-00-504-0564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-504-0564 | 2018-05-137 | 2 | France |
| 5920-00-504-0564 | 2016-07-213 | 70 | DIBBS |
| 5920-00-504-0564 | 2016-03-61 | 1 | us |
| 5920-00-504-0564 | 2016-02-49 | 2 | us |
| 5920-00-504-0564 | 2011-09-244 | 52 | DIBBS |
| 446475 | 2011-07-207 | 1 | United States |
Cross Reference | NSN 5920-00-504-0564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2437028-1 | 11243 | COSMODYNE, LLC |
| 44-1168 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 44-1168 | 3B858 | EATON CORP AEROSPACE AND COMMERCIAL |
| 44-647 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 44-647-5 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| B44-647-5 | 3B858 | EATON CORP AEROSPACE AND COMMERCIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-504-0564
Related Products | NSN 5920-00-504-0564
Technical Data | NSN 5920-00-504-0564
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |

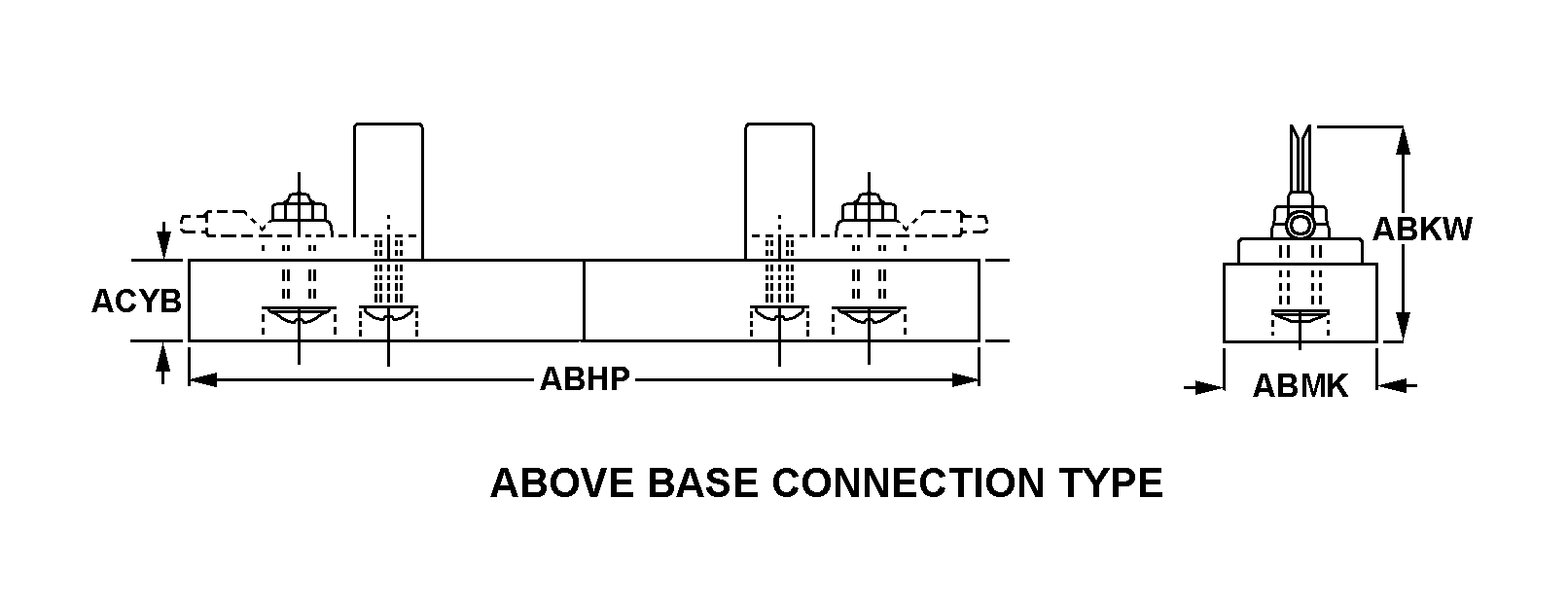

| BODY STYLE | C8 ABOVE BASE CONNECTION TYPE |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 2.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| BASE THICKNESS | 1.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FUSE CONTACTS | 1.500 INCHES NOMINAL |

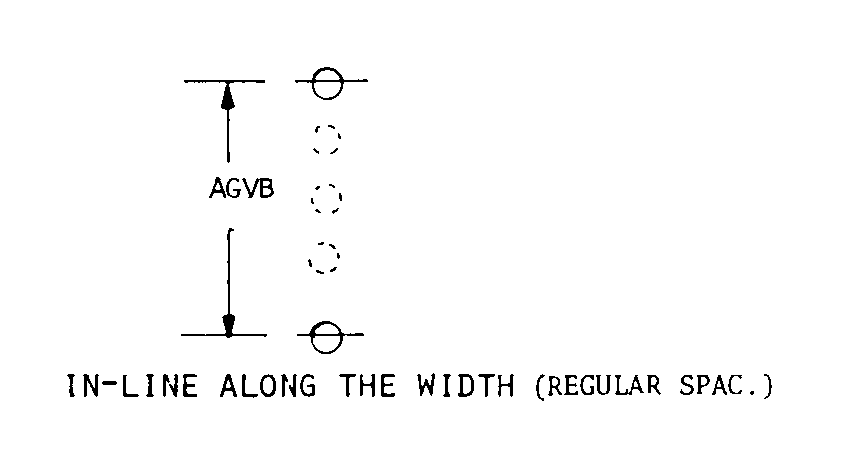

| MOUNTING HOLE STYLE | F29 IN-LINE ALONG THE WIDTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.210 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 2.000 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.562 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, FUSED |
