Product Details | BLOCK FUSEHOLDER

5920-00-453-4377 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: 516-4-98033, 5920-99-947, 5920-00-453-4377, 00-453-4377, 5920004534377, 516498033, 592099947, 004534377

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 08 MAY 1970 00-453-4377

Drawings & Photos | NSN 5920-00-453-4377


Cross Reference | NSN 5920-00-453-4377

Part Number Cage Code Manufacturer
516-4-98033 K0668 SELEX ES LTD DBA SELEX S & A S
516-4-98033 K1423 BRITISH AEROSPACE LAND & SEA SYSTEMS POST DESIGN SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-453-4377

Technical Data | NSN 5920-00-453-4377

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 1
CURRENT CARRYING RATING IN AMPS 15.0
VOLTAGE IN VOLTS 250.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 2 TAB, SOLDER LUG
CONTACT MATERIAL BERYLLIUM COPPER
CONTACT SURFACE TREATMENT ANY ACCEPTABLE

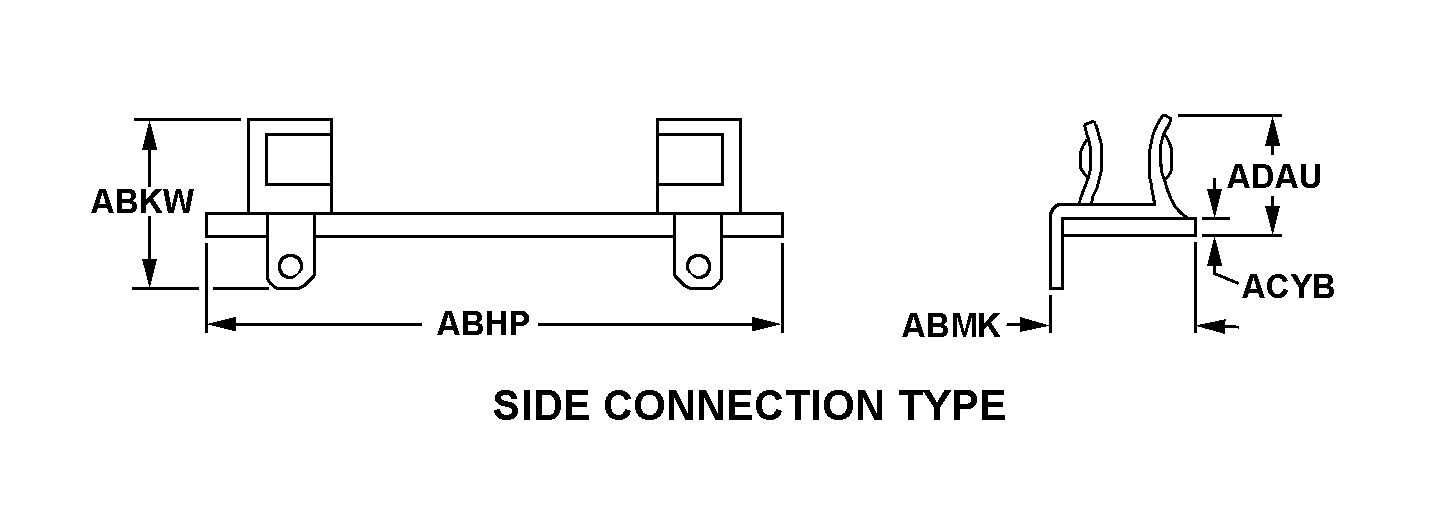

BODY STYLE C12 SIDE CONNECTION TYPE
OVERALL LENGTH 0.688 INCHES NOMINAL
OVERALL HEIGHT 0.312 INCHES NOMINAL
OVERALL WIDTH 0.188 INCHES NOMINAL
BASE THICKNESS 0.062 INCHES NOMINAL
BODY HEIGHT ANY ACCEPTABLE
MOUNTING HOLE STYLE F1 ONE HOLE MOUNTING
MOUNTING HOLE QUANTITY 1
MOUNTING HOLE DIAMETER 0.142 INCHES NOMINAL
ACCOMMODATED FUSE LENGTH 0.625 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER 0.125 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY 1 POLE, MAINLINE, FUSED
III TERMINAL MATERIAL BRASS
III BODY MATERIAL PLASTIC
