NSN 5920-00-424-8873 AGC15, BA1008216, BA10082-16
Product Details | CARTRIDGE FUSE
5920-00-424-8873 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: AGC15, BA1008216, BA10082-16, BACF30A315, BACF30A3-15, 2.0313 , 20313, 5043420, 5043-420, 65X4165, 5920-00-424-8873, 00-424-8873, 5920004248873, 004248873
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 1971 | 00-424-8873 | 00248 ( FUSE, CARTRIDGE ) |

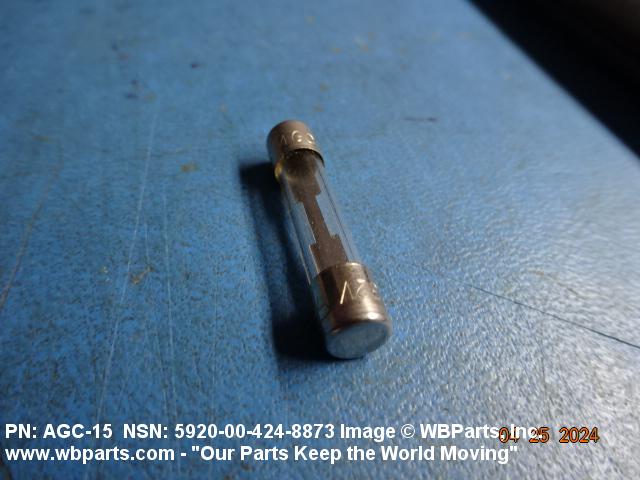

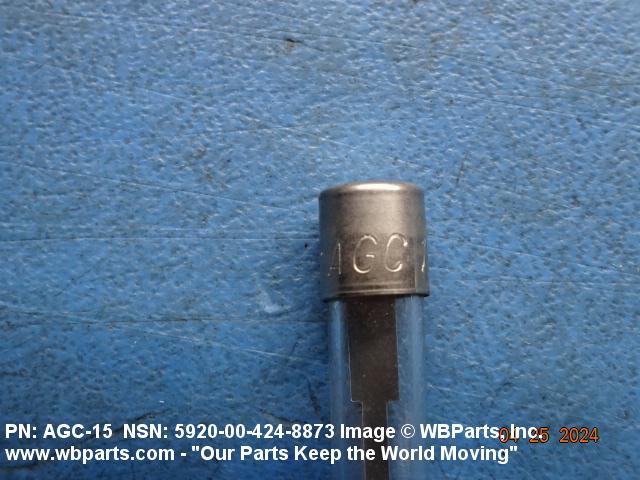

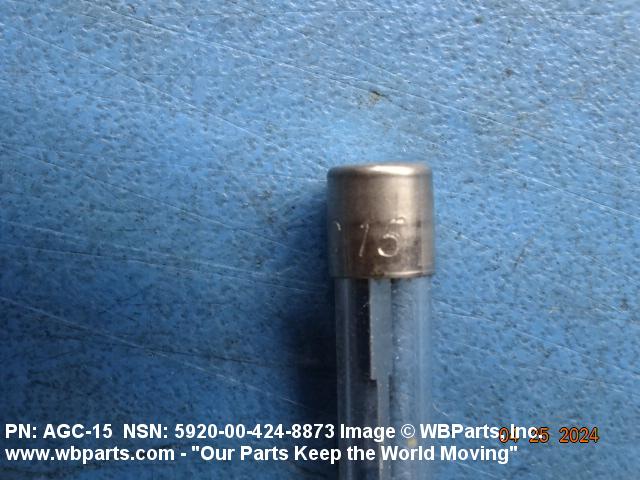

Drawings & Photos | NSN 5920-00-424-8873
Demand History | NSN 5920-00-424-8873
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-424-8873 | 2024-03-76 | 1 | us |
Cross Reference | NSN 5920-00-424-8873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2.0313 | 58961 | WAYTEK, INC. |
| 5043-420 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 65X4165 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 65X4165 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| AGC15 | 71400 | COOPER BUSSMANN INC |
| AGC15 | 72853 | STANT CORP EDELMANN DIV |
| AGC15 | 75915 | LITTELFUSE, INC. |
| BA10082-16 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| BACF30A3-15 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-424-8873
Technical Data | NSN 5920-00-424-8873
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

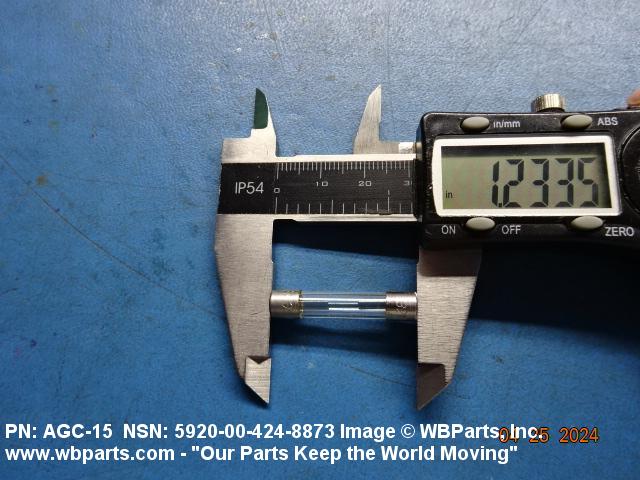

| OVERALL LENGTH | 1.250 INCHES NOMINAL |

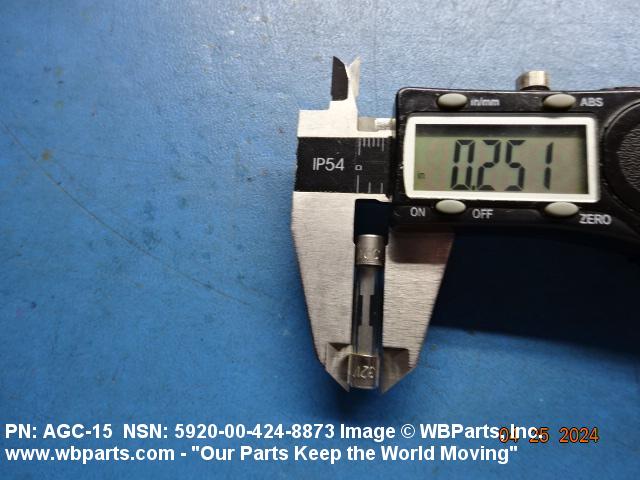

| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 15.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 32.0 AC AND 32.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| III CASE MATERIAL | GLASS |
Restrictions/Controls & Freight Information | NSN 5920-00-424-8873
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-424-8873
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
