NSN 5920-00-296-0531 MDM1A, BA1008292, BA10082-92

Product Details | CARTRIDGE FUSE

5920-00-296-0531 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.

Part Alternates: MDM1A, BA1008292, BA10082-92, GF815C100, MDM1, 2601353Z, 280621, 28062-1, 413001, 42345812, 423458-12, 65K880865, 7124592P9, 91752737, 5920-00-296-0531, 00-296-0531, 5920002960531, 002960531

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-296-0531	00248 ( FUSE, CARTRIDGE )

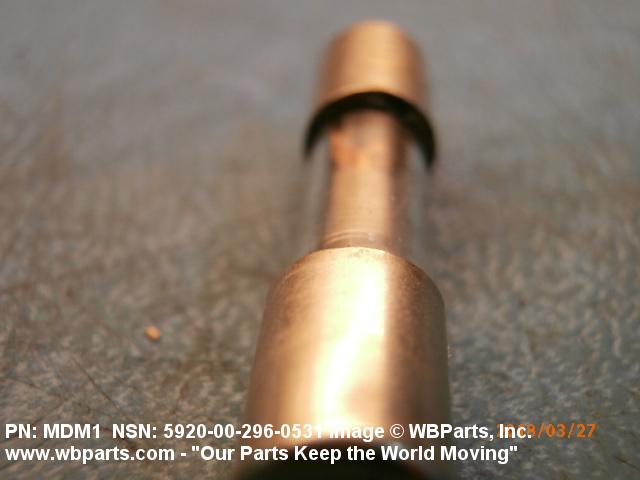

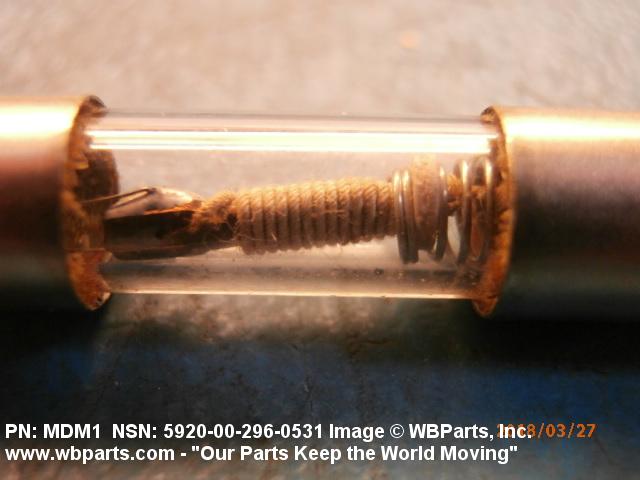

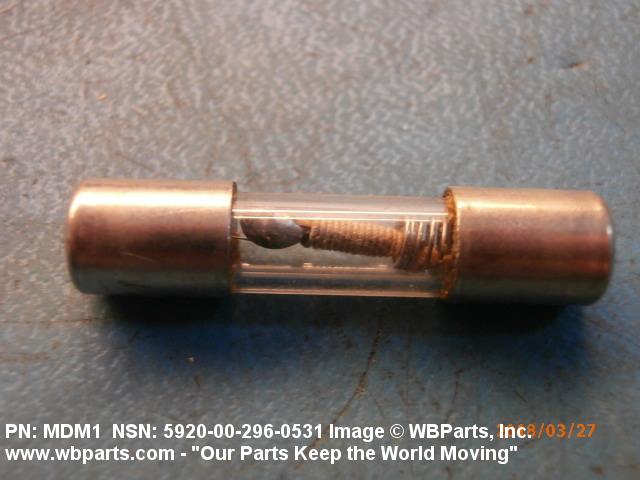

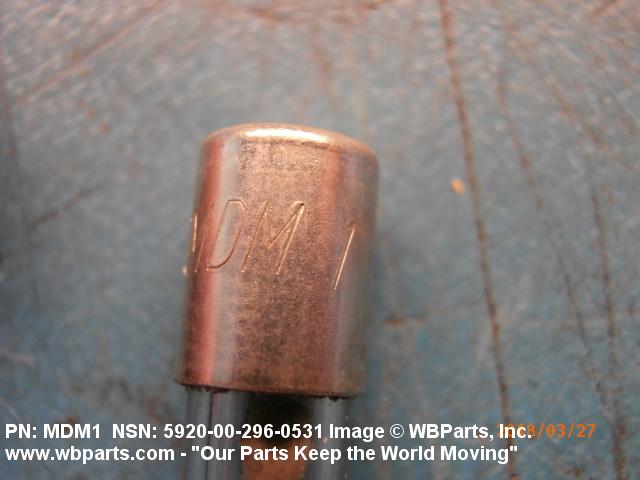

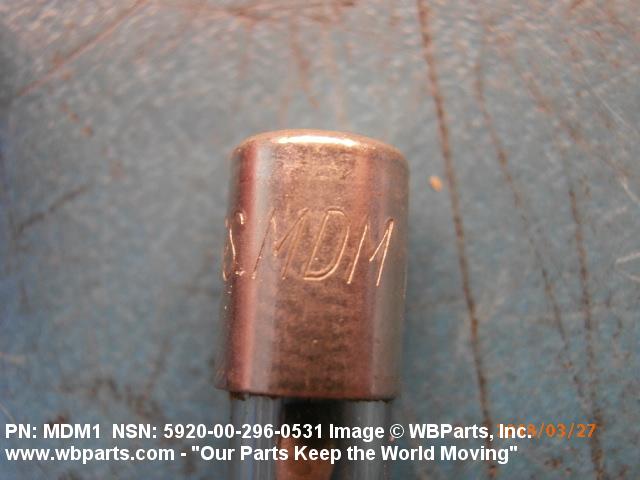

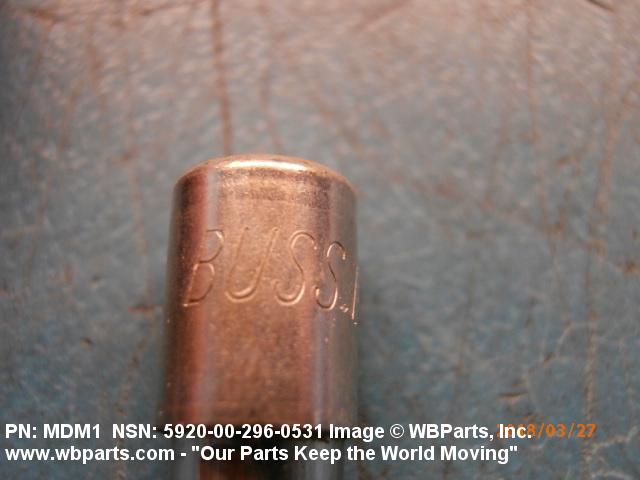

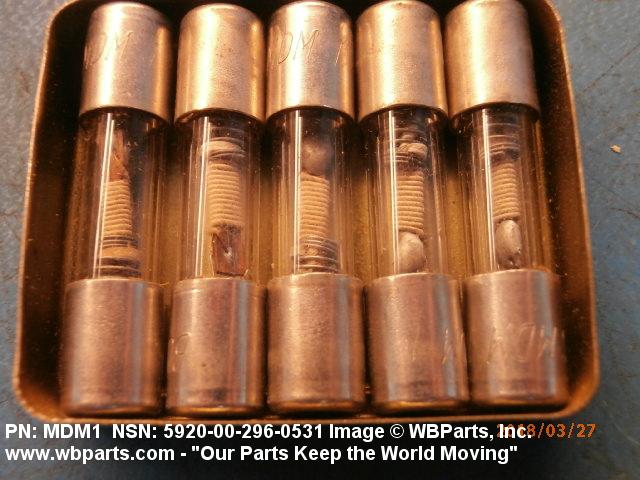

Drawings & Photos | NSN 5920-00-296-0531

Part Number	Request Date	QTY	Origin
5920-00-296-0531	2024-10-291	1	United States
5920-00-296-0531	2024-08-236	64	United States
5920-00-296-0531	2024-08-229	10	Malaysia
5920-00-296-0531	2022-08-230	377	Malaysia
MDM1	2021-05-131	57	United States
5920-00-296-0531	2020-10-293	20	Malaysia
5920-00-296-0531	2018-03-72	2	Sweden
413001	2016-09-250	20	Malaysia
MDM1	2016-09-250	7	Malaysia
MDM1	2016-09-245	30	Malaysia
MDM1	2016-09-245	7	Malaysia
5920-00-296-0531	2016-08-235	20	Malaysia
5920-00-296-0531	2016-08-235	7	Malaysia
5920-00-296-0531	2014-02-45	3026	DIBBS
5920-00-296-0531	2014-01-30	3026	DIBBS
5920-00-296-0531	2013-10-304	3087	DIBBS
413001	2013-07-211	25	US
413001	2013-07-211	25	US
5920-00-296-0531	2012-06-181	1212	DIBBS
413001	2012-06-170	20	Indonesia
5920-00-296-0531	2012-05-125	868	DIBBS
5920-00-296-0531	2012-01-04	911	DIBBS
5920-00-296-0531	2011-06-175	1211	DIBBS
5920-00-296-0531	2010-08-214	1442	DIBBS
5920-00-296-0531	2010-06-158	1155	DIBBS
5920-00-296-0531	2010-06-158	2854	DIBBS
5920-00-296-0531	2010-05-141	1155	DIBBS
5920-00-296-0531	2010-03-82	2796	DIBBS
5920-00-296-0531	2009-11-322	1062	DIBBS
5920-00-296-0531	2009-11-316	447	DIBBS
5920-00-296-0531	2009-10-302	419	DIBBS
5920-00-296-0531	2009-06-155	995	DIBBS
5920-00-296-0531	2006-06-164	0	DIBBS

Cross Reference | NSN 5920-00-296-0531

Part Number	Cage Code	Manufacturer
2601353Z	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
28062-1	53711	NAVAL SEA SYSTEMS COMMAND
413001	75915	LITTELFUSE, INC.
423458-12	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
65K880865	1VPW8	GENERAL DYNAMICS C4 SYSTEMS, INC.
65K880865	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
7124592P9	03538	LOCKHEED MARTIN CORPORATION DIV MST
91752737	F6481	THALES SA
BA10082-92	01714	LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS
GF815C100	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MDM1	71400	COOPER BUSSMANN INC
MDM1A	75915	LITTELFUSE, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-296-0531

Compare

Related Products | NSN 5920-00-296-0531

5920-00-296-0532, 5920-00-296-0533, 5920-00-296-0575, 5920-00-296-0576, 5920-00-296-0580

Technical Data | NSN 5920-00-296-0531

Characteristic	Specifications
BODY STYLE	2A TUBE TYPE

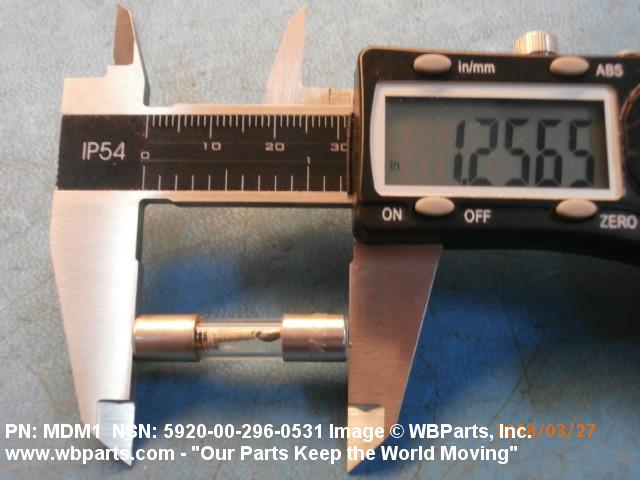

OVERALL LENGTH	1.250 INCHES NOMINAL

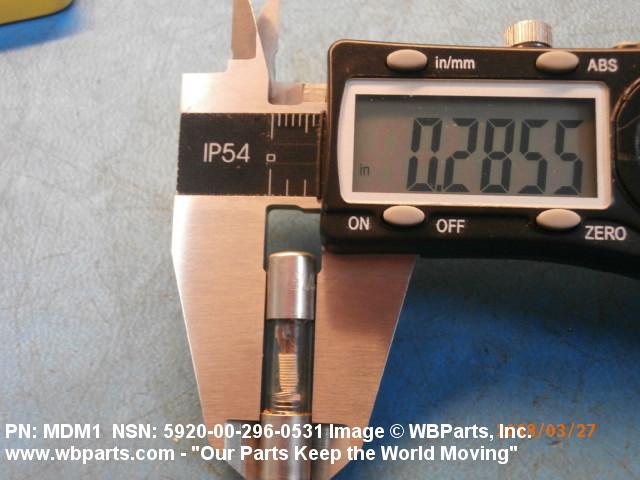

OVERALL DIAMETER	0.281 INCHES NOMINAL
