NSN 5920-00-296-0454 MCL10A, MCL-10A, ATM10
Product Details | CARTRIDGE FUSE
5920-00-296-0454 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: MCL10A, MCL-10A, ATM10, ATM-10, CST15010, CST-150-10, F60500V10A, F60C50010A, F60C500V10A, F60C-500V-10A, F60C500V10AS, F60C550V10A, F60G10R0C, F60H10R0C, KLM10A500V, KLM10A600V, KTK 10, KTK10, MIL-PRF-15160/60, MILPRF1516060, 98377, 100457, 105.814-4, 1058144, 106.878-12, 10687812, 1376-50-154, 30505100, 305-05-100, 31503000, 5920-00-296-0454, 00-296-0454, 5920002960454, 137650154, 002960454
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-0454 | 00248 ( FUSE, CARTRIDGE ) |

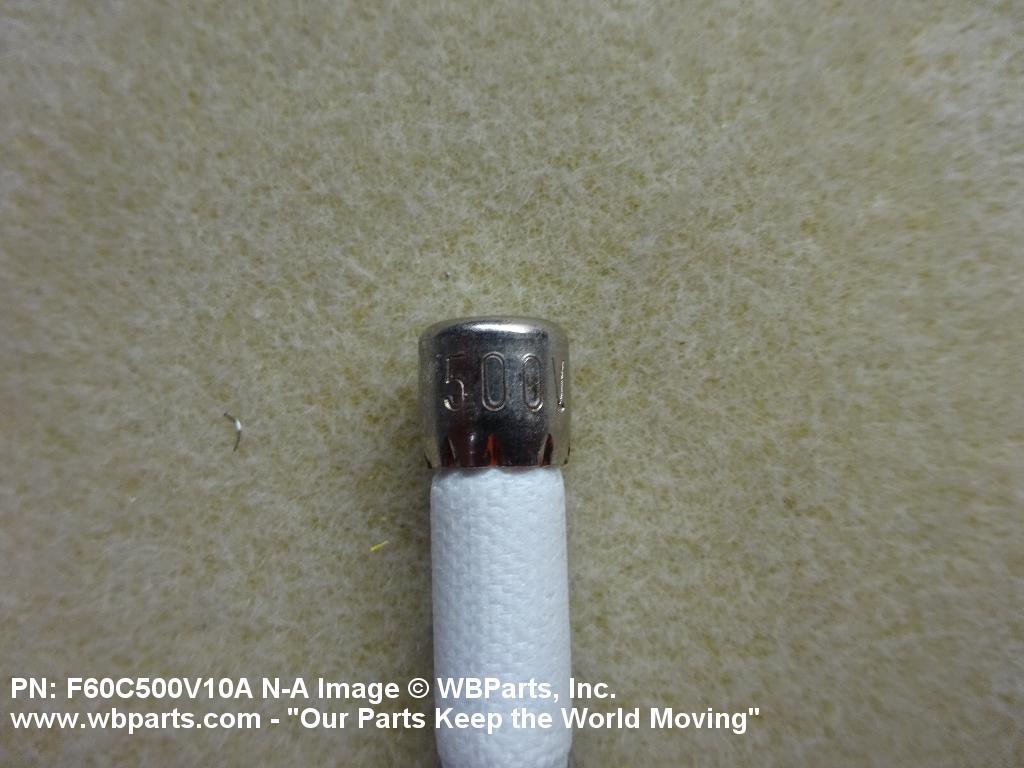

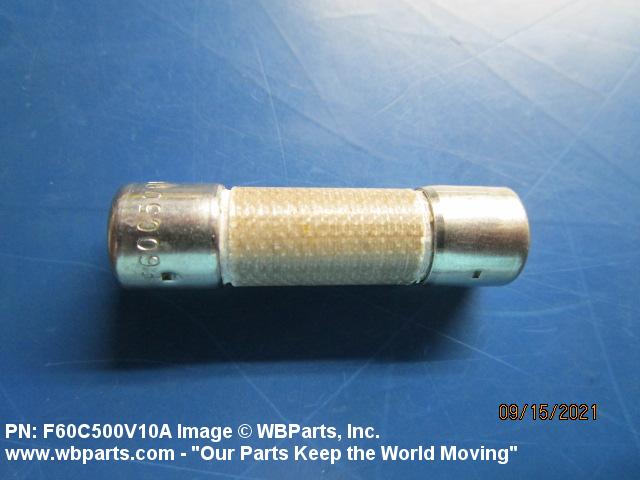

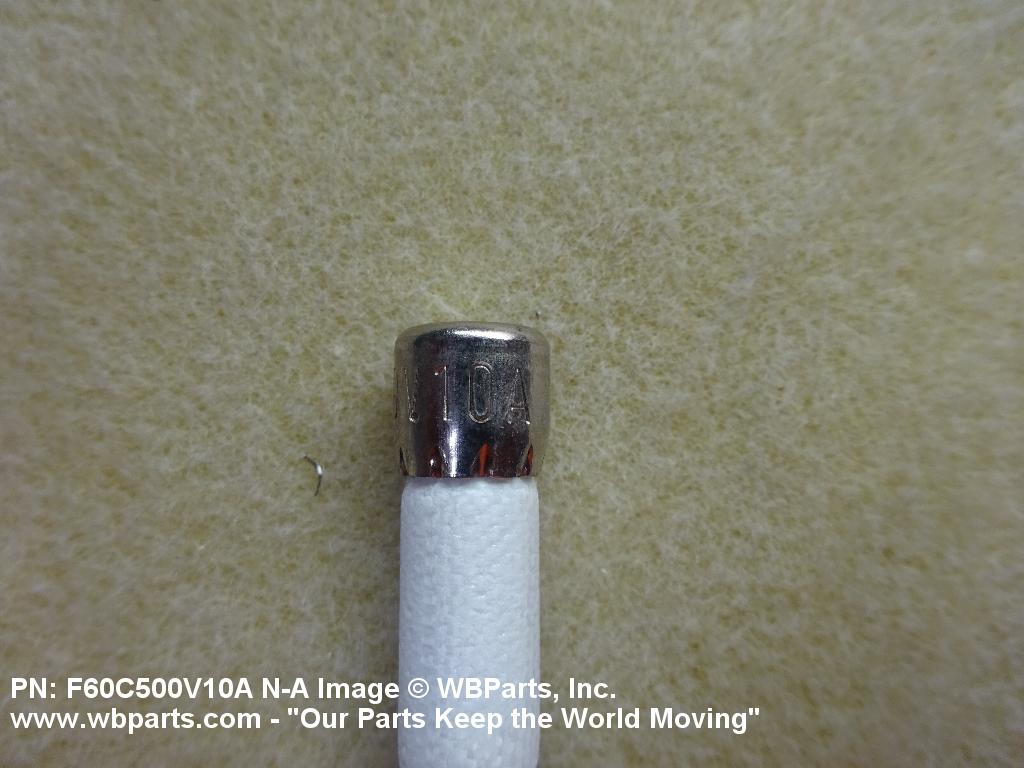

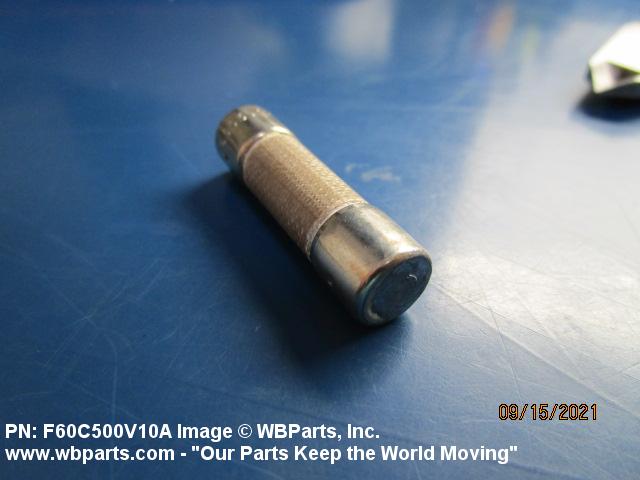

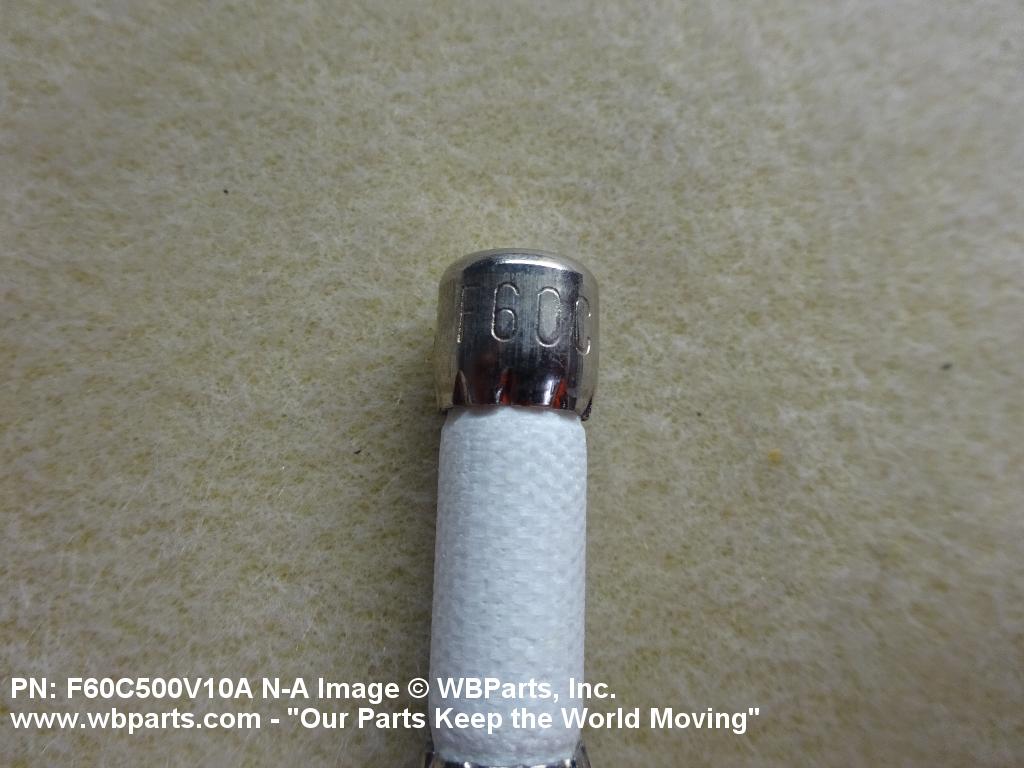

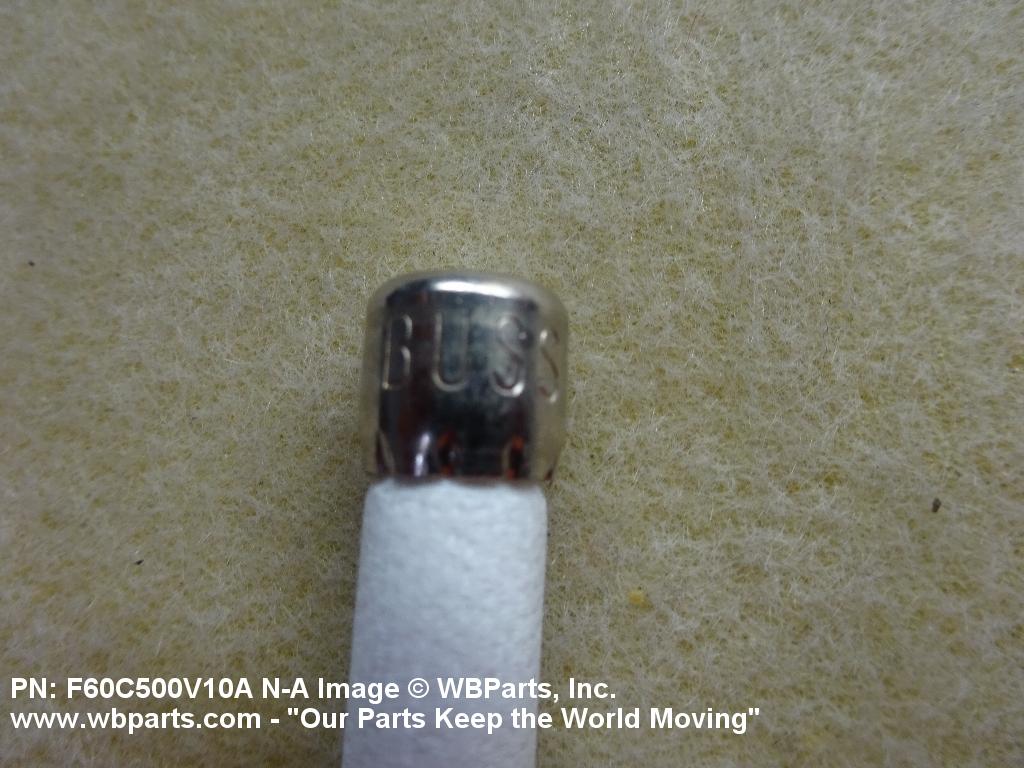

Drawings & Photos | NSN 5920-00-296-0454
Demand History | NSN 5920-00-296-0454
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KTK10 | 2023-06-05 | 1 | United States |
| 5920-00-296-0454 | 2023-03-13 | 8509 | DIBBS |
| 5920-00-296-0454 | 2022-10-12 | 8509 | DIBBS |
| F60C500V10AS | 2022-04-01 | 200 | United States |
| F60C500V10A | 2021-08-03 | 100 | United States |
| 5920-00-296-0454 | 2019-02-07 | 8000 | DIBBS |
| F60C500V10AS | 2019-01-15 | 150 | United States |
| F60C500V10AS | 2019-01-15 | 1000 | United States |
| F60C500V10AS | 2018-12-20 | 1000 | United States |
| 5920-00-296-0454 | 2018-12-02 | 9687 | DIBBS |
| 5920-00-296-0454 | 2018-10-15 | 4500 | DIBBS |
| 5920-00-296-0454 | 2018-10-03 | 4500 | DIBBS |
| 5920-00-296-0454 | 2018-09-04 | 4516 | DIBBS |
| 5920-00-296-0454 | 2018-08-21 | 4516 | DIBBS |
| F60C500V10AS | 2018-05-16 | 1000 | United States |
| KTK10 | 2018-03-13 | 5 | United States |
| F60C500V10AS | 2017-06-06 | 4 | United States |
| 5920-00-296-0454 | 2015-08-20 | 8000 | DIBBS |
| 5920-00-296-0454 | 2013-12-25 | 5384 | DIBBS |
| 5920-00-296-0454 | 2013-03-19 | 948 | DIBBS |
| 5920-00-296-0454 | 2012-02-02 | 1752 | DIBBS |
| F60C500V10A | 2011-04-01 | 50 | Thailand |
| 5920-00-296-0454 | 2010-10-25 | 1956 | DIBBS |
| 5920-00-296-0454 | 2010-08-06 | 1991 | DIBBS |
| 5920-00-296-0454 | 2008-01-31 | 2200 | DIBBS |
| 5920-00-296-0454 | 2007-10-12 | 1800 | DIBBS |
Cross Reference | NSN 5920-00-296-0454
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100457 | 26759 | MELLEY INDUSTRIES INC |
| 105.814-4 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 106.878-12 | 74100 | MILLER WELDING SUPPLY CO |
| 1376-50-154 | A0199 | OTO MELARA SPA |
| 305-05-100 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 31503000 | 21340 | ITT TELECOM PRODUCTS CORP NETWORK SYSTEMS DIV |
| 98377 | 42892 | SMITH A O CORP CONSUMER PRODUCTS DIV |
| ATM-10 | 21574 | MERSEN CANADA TORONTO INC FORMELYFERRAZ SHAWMUT CO |
| CST-150-10 | 26636 | LEWIS CORP |
| F60500V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C-500V-10A | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| F60C50010A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V10A | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| F60C500V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V10AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C550V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60G10R0C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60H10R0C | 13214 | CHEMFAB NEW YORK INC DIV OF CHEMICAL FABRICS CORP |
| KLM10A500V | 27315 | MORRIS MATERIAL HANDLING, INC. |
| KLM10A600V | 71400 | COOPER BUSSMANN INC |
| KTK 10 | 56425 | INTERNATIONAL SWITCHBOARD CORP DIV OF EQUUS POWER SYSTEMS CORP |
| MCL-10A | 21810 | CHALLENGER ELECTRICAL EQUIPMENT CORP |
| MIL-PRF-15160/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-296-0454
Related Products | NSN 5920-00-296-0454
Technical Data | NSN 5920-00-296-0454
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

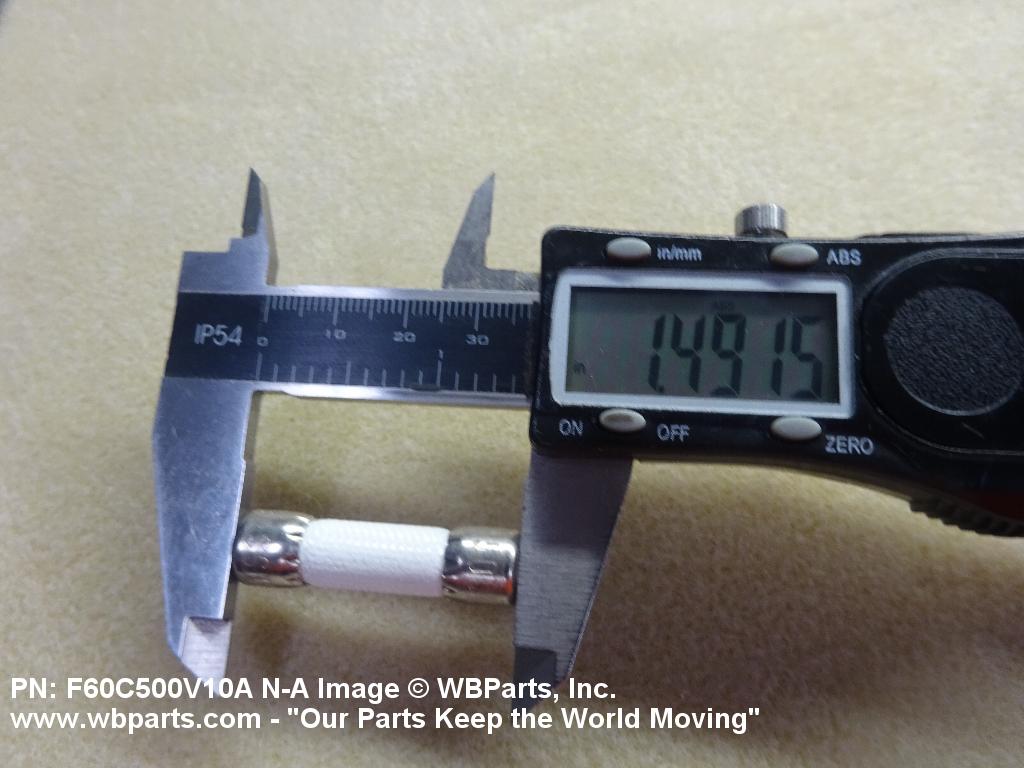

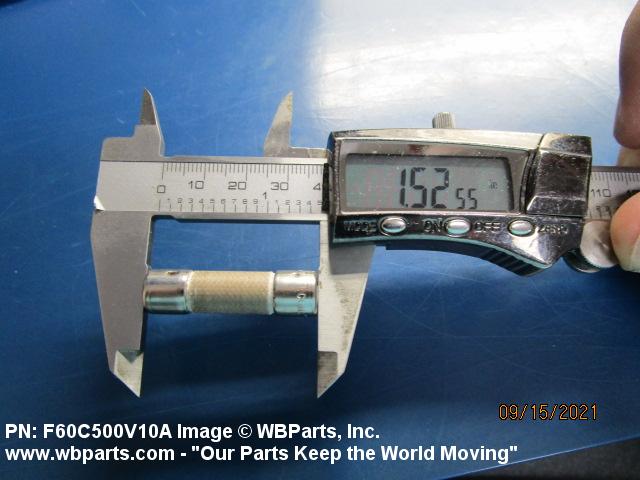

| OVERALL LENGTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |

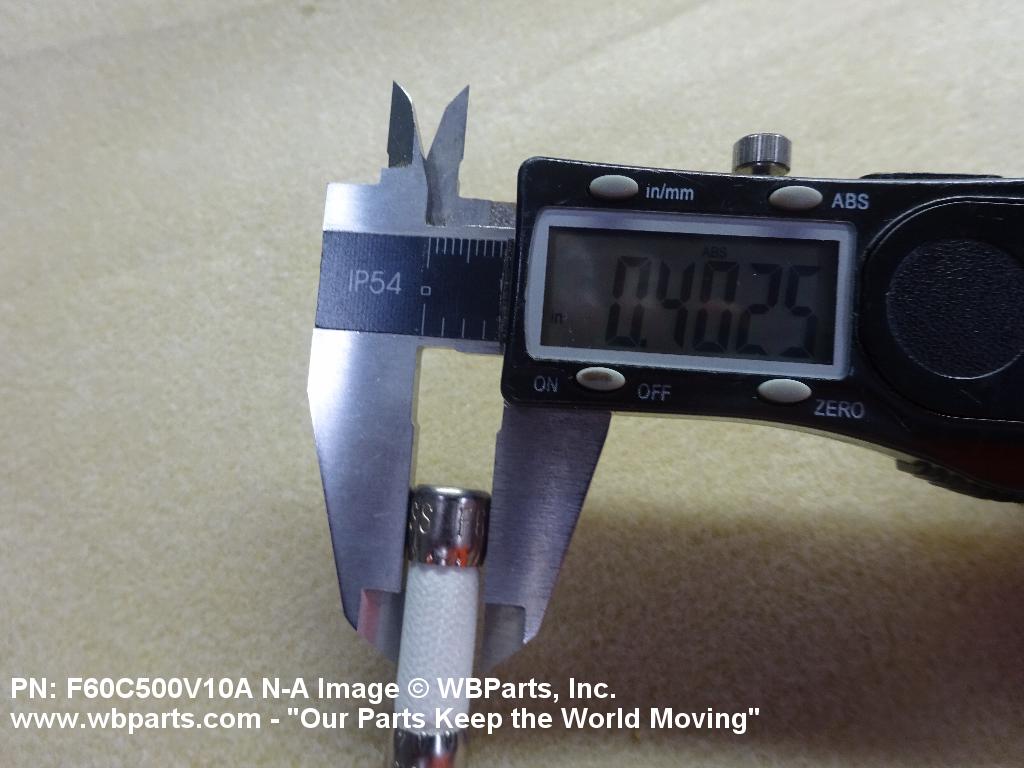

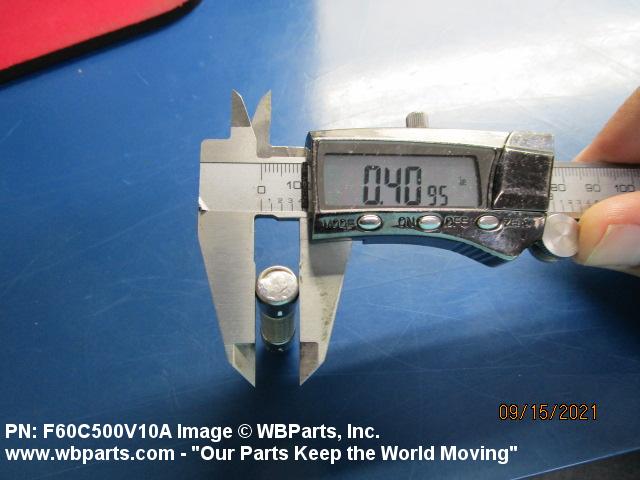

| OVERALL DIAMETER | 0.402 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 10.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 500.0 AC AND 500.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 150000.0 AND 200000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/60 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC, MELAMINE, GLASS FILLED |
| III TERMINAL MATERIAL | BRASS OR COPPER OR BRONZE OR COPPER ALLOY |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F60C500V10A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/60 |
