NSN 5920-00-296-0445 F60C500V5A, MIL-PRF-15160/60, MILPRF1516060
Product Details | CARTRIDGE FUSE
5920-00-296-0445 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: F60C500V5A, MIL-PRF-15160/60, MILPRF1516060, 5920-00-296-0445, 00-296-0445, 5920002960445, 002960445
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-0445 | 00248 ( FUSE, CARTRIDGE ) |

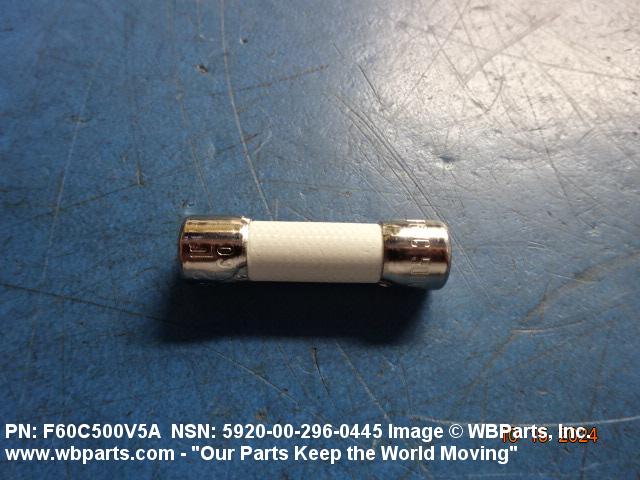

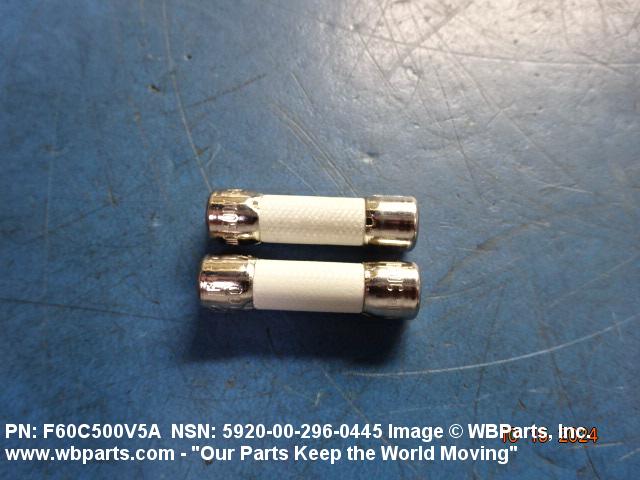

Drawings & Photos | NSN 5920-00-296-0445
Demand History | NSN 5920-00-296-0445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-296-0445 | 2024-09-264 | 2 | United States |
| F60C500V5A | 2023-05-131 | 12 | United States |
| F60C500V5A | 2015-05-138 | 6 | United States |
| F60C500V5A | 2015-03-76 | 5 | TH |
| 5920-00-296-0445 | 2014-01-01 | 7050 | DIBBS |
| 5920-00-296-0445 | 2013-03-87 | 3876 | DIBBS |
| 5920-00-296-0445 | 2013-02-33 | 3289 | DIBBS |
| 5920-00-296-0445 | 2012-08-237 | 802 | DIBBS |
| 5920-00-296-0445 | 2012-01-03 | 674 | DIBBS |
| 5920-00-296-0445 | 2010-08-224 | 865 | DIBBS |
| 5920-00-296-0445 | 2010-04-111 | 10 | US |
| 5920-00-296-0445 | 2008-11-317 | 1649 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-296-0445
Related Products | NSN 5920-00-296-0445
Technical Data | NSN 5920-00-296-0445
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |
| OVERALL LENGTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.402 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 5.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 500.0 AC AND 500.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 68000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/60 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC, POLYCARBONATE |
| III TERMINAL MATERIAL | BRASS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F60C500V5A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/60 |
