NSN 5920-00-296-0361 F60C250V10AS, F60C500V10A, F60C500V10AS
Product Details | CARTRIDGE FUSE
5920-00-296-0361 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: F60C250V10AS, F60C500V10A, F60C500V10AS, F60C500V-10AS, F60C500V1OAS, F60C500Y10AS, F60H6R00C, KLM10, KLM10A500V, MIL-F-15160/60, MILF1516060, MIL-PRF-15160/60, MILPRF1516060, V018161, 68507492, 6850749-2, 6956ED518 PC 11, 6956ED518PC11, 6968ED516 PC9, 6968ED516PC9, 7498R100PC38, 02103028, 02-10-3028, 103.9-147, 1039147, 229B3554G4AS617, 229B3554G4AS6-17, 229B3554G4S617, 229B3554G4S6-17, 229B3554G5AS517, 229B3554G5AS5-17, 229B3554G6AS617, 229B3554G6AS6-17, 2635-088-22 ITEM 1-376, 263508822ITEM1376, 288A899AB10, 288A899BP10, 441551, 44-1551, 5920-00-296-0361, 00-296-0361, 5920002960361, 002960361
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-0361 | 00248 ( FUSE, CARTRIDGE ) |

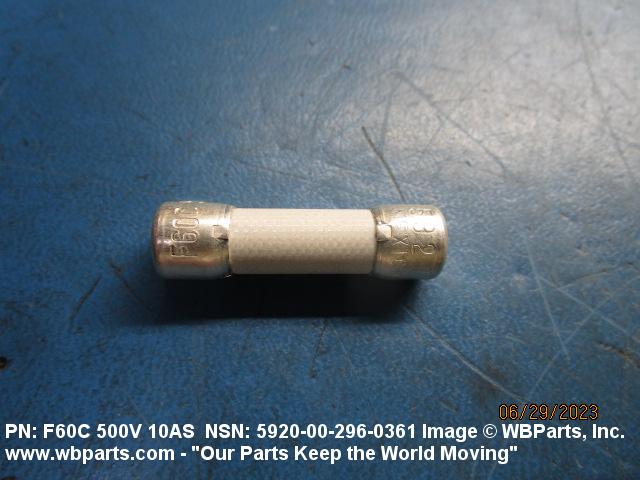

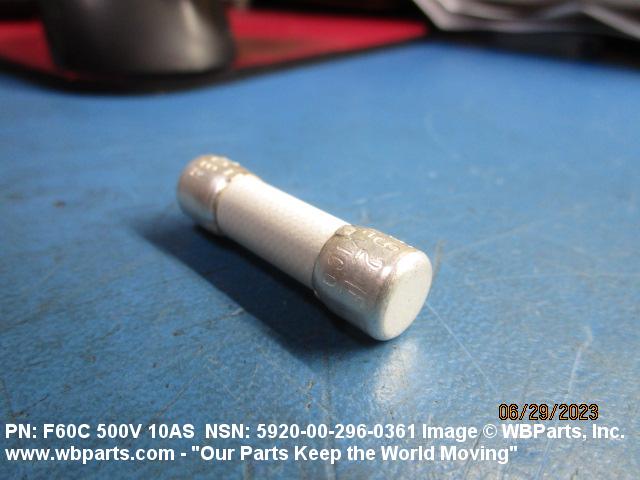

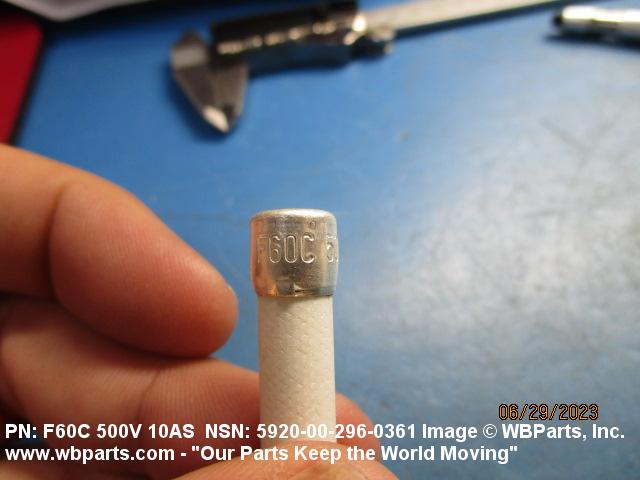

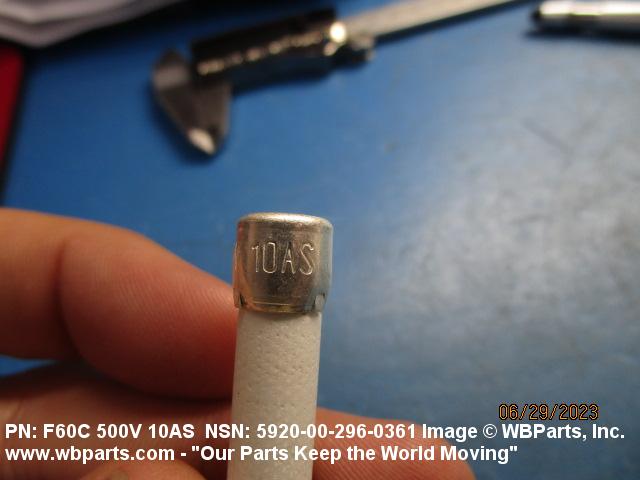

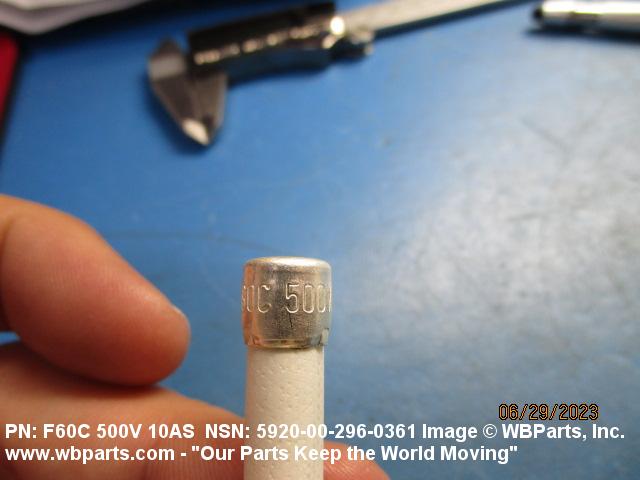

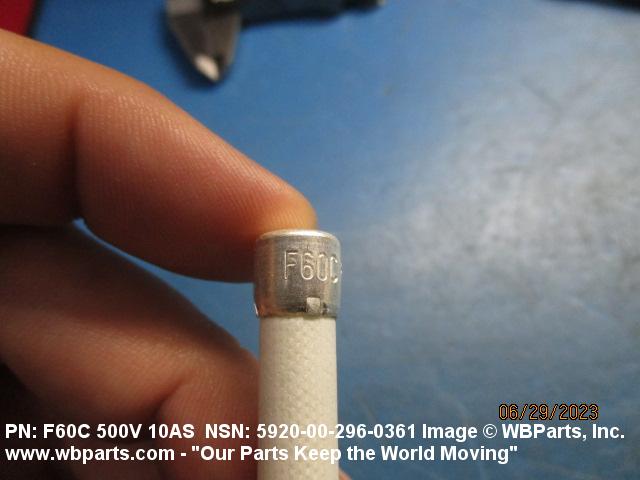

Drawings & Photos | NSN 5920-00-296-0361
Demand History | NSN 5920-00-296-0361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-296-0361 | 2024-09-270 | 3000 | DIBBS |
| 5920-00-296-0361 | 2024-09-256 | 12000 | DIBBS |
| 5920-00-296-0361 | 2024-06-156 | 5000 | DIBBS |
| 5920-00-296-0361 | 2024-04-117 | 1 | United States |
| 5920-00-296-0361 | 2024-02-35 | 5000 | DIBBS |
| 5920-00-296-0361 | 2023-11-310 | 2 | United States |
| 5920-00-296-0361 | 2023-10-288 | 6000 | DIBBS |
| 5920-00-296-0361 | 2023-06-166 | 19 | United States |
| 5920-00-296-0361 | 2022-04-96 | 10 | US |
| F60C500V10AS | 2022-04-91 | 200 | United States |
| F60C500V10A | 2021-08-215 | 100 | United States |
| 441551 | 2020-11-321 | 1 | US |
| 5920-00-296-0361 | 2020-07-197 | 6 | United States |
| 5920-00-296-0361 | 2019-03-80 | 11410 | DIBBS |
| F60C500V10AS | 2019-01-15 | 150 | United States |
| F60C500V10AS | 2019-01-15 | 1000 | United States |
| 5920-00-296-0361 | 2019-01-03 | 3375 | DIBBS |
| F60C500V10AS | 2018-12-354 | 1000 | United States |
| F60C500V10AS | 2018-05-136 | 1000 | United States |
| F60C500V10AS | 2017-06-157 | 4 | United States |
| 441551 | 2016-08-222 | 1 | United States |
| 5920-00-296-0361 | 2014-09-246 | 31 | United States |
| 5920-00-296-0361 | 2013-11-331 | 1 | DIBBS-RFPs |
| 5920-00-296-0361 | 2013-06-156 | 10000 | DIBBS |
| 5920-00-296-0361 | 2013-03-80 | 1550 | DIBBS |
| 5920-00-296-0361 | 2013-03-64 | 4023 | DIBBS |
| 5920-00-296-0361 | 2012-11-325 | 0 | DIBBS |
| 5920-00-296-0361 | 2012-08-237 | 3112 | DIBBS |
| 5920-00-296-0361 | 2012-05-137 | 2512 | DIBBS |
| F60C500V10A | 2011-04-91 | 50 | Thailand |
| 5920-00-296-0361 | 2010-12-337 | 4862 | DIBBS |
| 5920-00-296-0361 | 2010-10-280 | 140 | US |
| 5920-00-296-0361 | 2010-10-277 | 6500 | US |
| 5920-00-296-0361 | 2010-09-270 | 6416 | DIBBS |
| 5920-00-296-0361 | 2010-09-265 | 140 | United States |
| 5920-00-296-0361 | 2010-08-216 | 3437 | DIBBS |
| 5920-00-296-0361 | 2010-05-144 | 3253 | DIBBS |
| 5920-00-296-0361 | 2010-04-111 | 3357 | DIBBS |
| 5920-00-296-0361 | 2009-10-278 | 3231 | DIBBS |
| 5920-00-296-0361 | 2008-09-261 | 50 | Malaysia |
| 5920-00-296-0361 | 2007-09-265 | 6872 | DIBBS |
| 5920-00-296-0361 | 2007-04-99 | 3882 | DIBBS |
Cross Reference | NSN 5920-00-296-0361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-10-3028 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 103.9-147 | 71400 | COOPER BUSSMANN INC |
| 229B3554G4AS6-17 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 229B3554G4S6-17 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 229B3554G5AS5-17 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 229B3554G6AS6-17 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 2635-088-22 ITEM 1-376 | 96169 | ELECTRIC BOAT CORPORATION |
| 288A899AB10 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 288A899BP10 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 44-1551 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 44-1551 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 44-1551 | 34712 | OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE |
| 44-1551 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 6850749-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6956ED518 PC 11 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6968ED516 PC9 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 7498R100PC38 | 95210 | PEERLESS INSTRUMENT CO., INC. |
| F60C250V10AS | 71400 | COOPER BUSSMANN INC |
| F60C500V-10AS | 71400 | COOPER BUSSMANN INC |
| F60C500V10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V10AS | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| F60C500V10AS | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| F60C500V10AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V10AS | 84613 | FIC CORPORATION |
| F60C500V1OAS | 6W438 | CALIFORNIA MARINE SUPPLY, INC |
| F60C500Y10AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60H6R00C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| KLM10 | 71400 | COOPER BUSSMANN INC |
| KLM10A500V | 71400 | COOPER BUSSMANN INC |
| MIL-F-15160/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-15160/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| V018161 | 36334 | INDAL TECHNOLOGIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-296-0361
Related Products | NSN 5920-00-296-0361
Technical Data | NSN 5920-00-296-0361
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |
| OVERALL LENGTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |

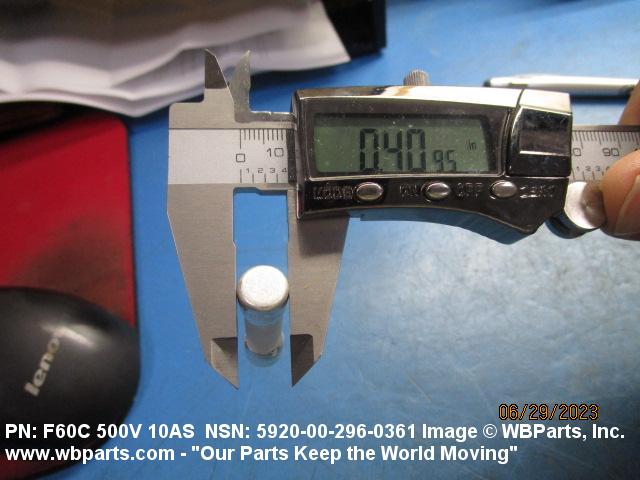

| OVERALL DIAMETER | 0.402 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 10.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 500.0 AC AND 500.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 68000.0 |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/60C GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC, MELAMINE, GLASS FILLED |
| III TERMINAL MATERIAL | BRASS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F60C500V10AS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/60 |
Restrictions/Controls & Freight Information | NSN 5920-00-296-0361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-296-0361
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
