Product Details | CARTRIDGE FUSE
5920-00-280-8580 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: 1751430709, 175-14307-09, 70G, 5920-00-280-8580, 00-280-8580, 5920002808580, 100203389, 002808580
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-8580 | 00248 ( FUSE, CARTRIDGE ) |

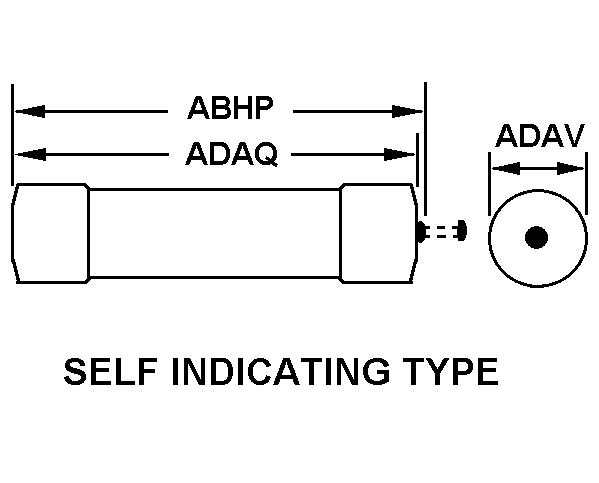

Drawings & Photos | NSN 5920-00-280-8580
Demand History | NSN 5920-00-280-8580
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-280-8580 | 2018-08-225 | 170 | DIBBS |
| 5920-00-280-8580 | 2007-08-215 | 345 | DIBBS |
| 5920-00-280-8580 | 2007-03-79 | 122 | DIBBS |
| 5920-00-280-8580 | 2006-05-133 | 106 | DIBBS |
Cross Reference | NSN 5920-00-280-8580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100203389 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| 100203389 | 09JX9 | ALCATEL-LUCENT USA INC. |
| 175-14307-09 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| 175-14307-09 | 09017 | EDO |
| 70G | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| 70G | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 70G | 71424 | FERRAZ SHAWMUT INC |
| 70G | 75915 | LITTELFUSE, INC. |
| 70G | 98997 | SIGHTMASTER CORP |
