NSN 5920-00-241-6792 KRFC601, 00-241-6792, 002416792
Product Details | CARTRIDGE FUSE
5920-00-241-6792 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: KRFC601, 5920-00-241-6792, 00-241-6792, 5920002416792, 002416792
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JUN 1973 | 00-241-6792 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-241-6792
Cross Reference | NSN 5920-00-241-6792
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KRFC601 | 71400 | COOPER BUSSMANN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-241-6792
Technical Data | NSN 5920-00-241-6792
| Characteristic | Specifications |
|---|---|

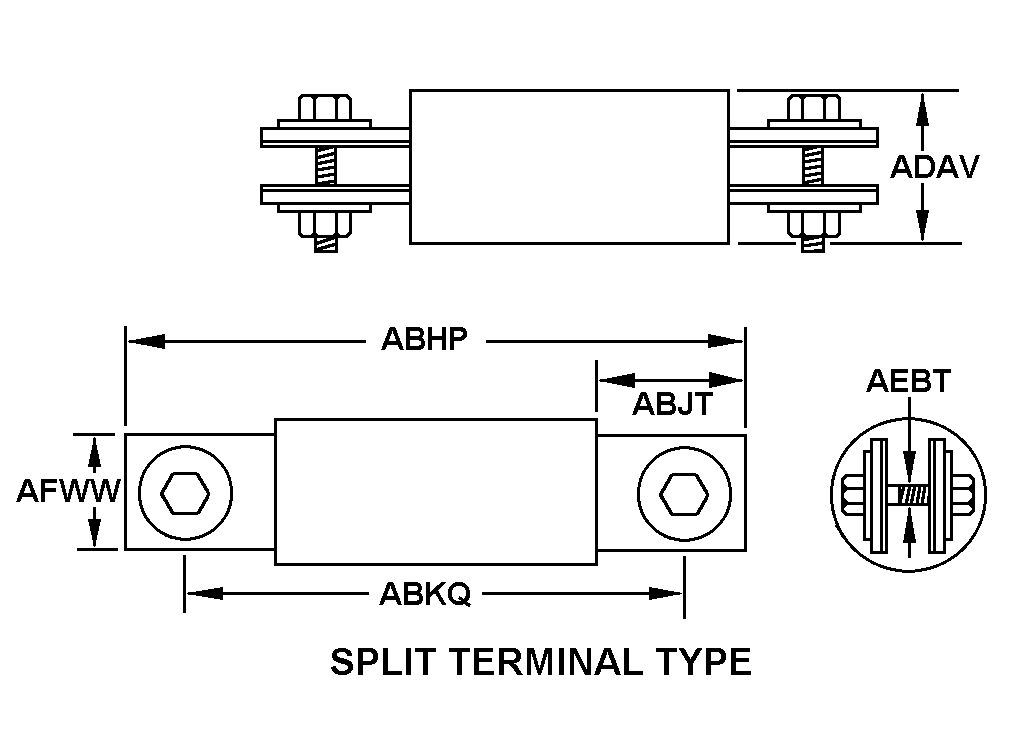

| BODY STYLE | 13A SPLIT TERMINAL TYPE |
| OVERALL LENGTH | 10.500 INCHES NOMINAL |
| TERMINAL LENGTH | 3.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 7.875 INCHES NOMINAL |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.312 INCHES NOMINAL |
| TERMINAL WIDTH | 2.000 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 601.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 4.0 500 PCT OF CURRENT RATING |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 600.0 |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
Restrictions/Controls & Freight Information | NSN 5920-00-241-6792
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
