NSN 5920-00-228-4417 9S5532-6ALT2EL1/125, 9S55326ALT2EL1125, 9S5532LALT2EL1
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-228-4417 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: 9S5532-6ALT2EL1/125, 9S55326ALT2EL1125, 9S5532LALT2EL1, 9S5532-LALT2EL1, 5920-00-228-4417, 00-228-4417, 5920002284417, 002284417
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-228-4417 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

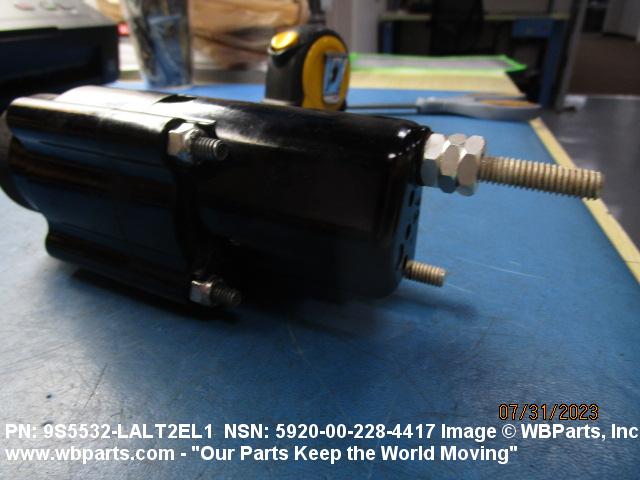

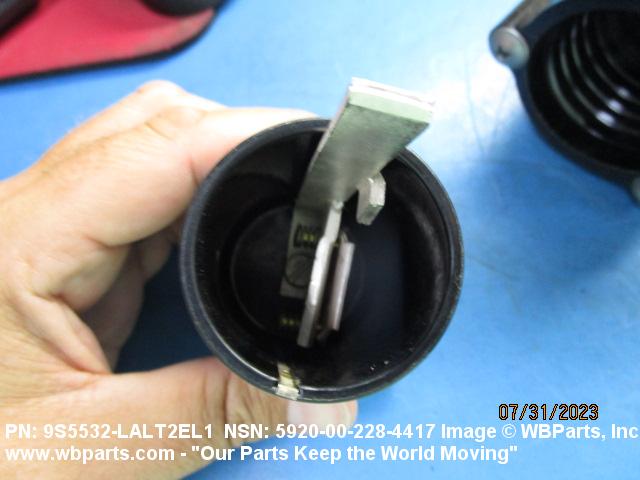

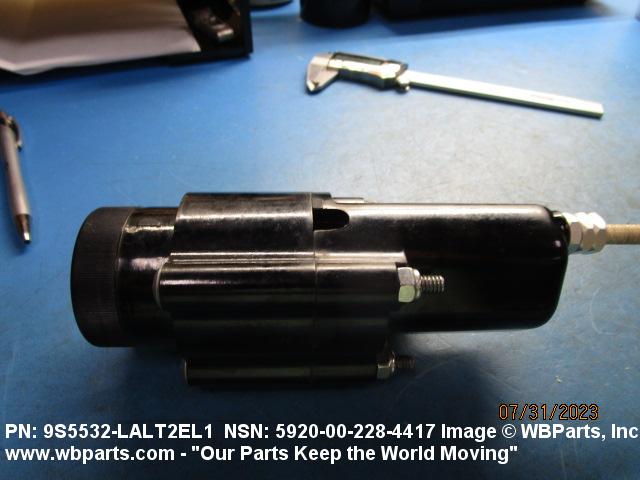

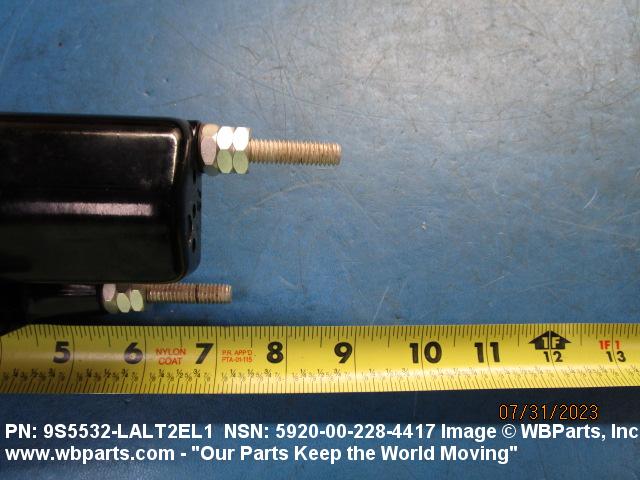

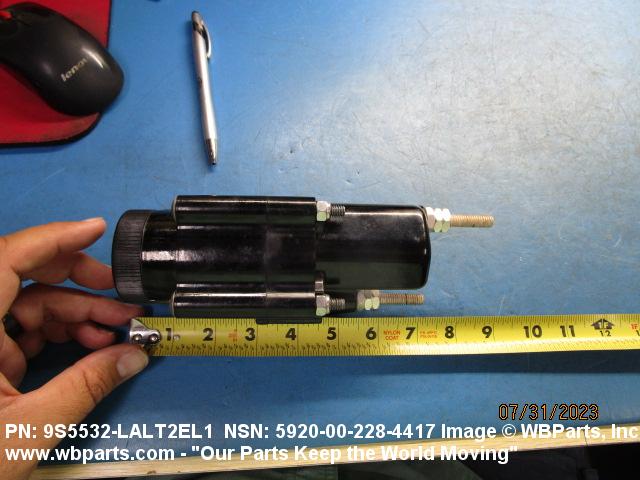

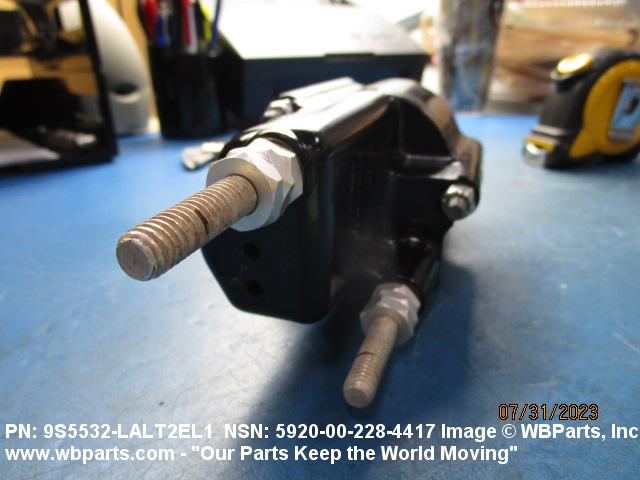

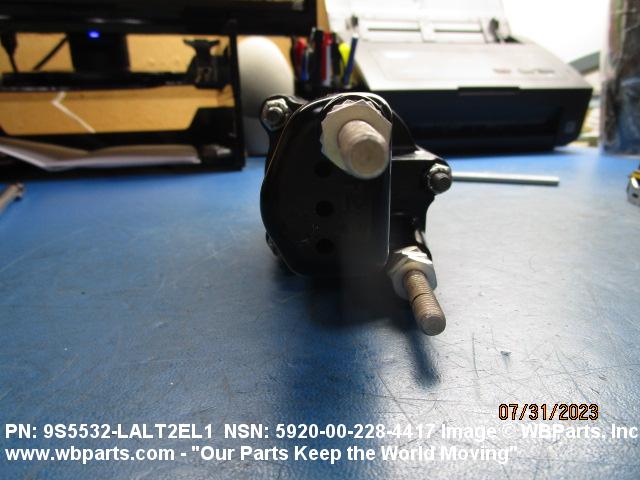

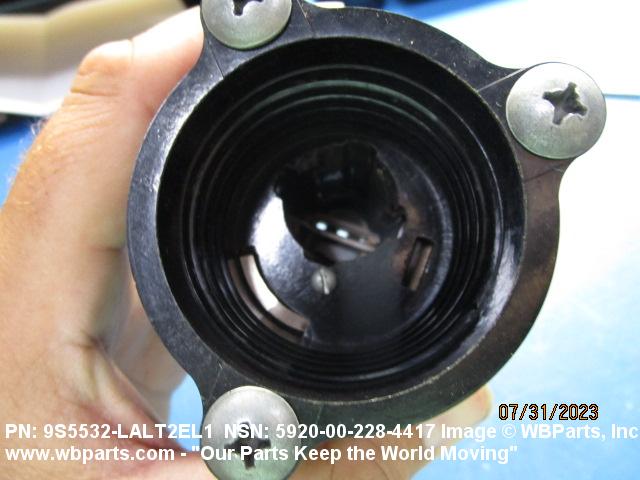

Drawings & Photos | NSN 5920-00-228-4417
Demand History | NSN 5920-00-228-4417
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-228-4417 | 2023-07-207 | 1 | us |
| 5920-00-228-4417 | 2023-07-191 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-228-4417
Technical Data | NSN 5920-00-228-4417
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 100.0 |
| VOLTAGE IN VOLTS | 125.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | KNIFE BLADE |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | SILVER PLATED |
| OVERALL LENGTH | 8.828 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 2.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.938 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 5.875 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 1.000 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY VOLTAGE REQUIREMENT |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 9S5532-LALT2EL1 |
Restrictions/Controls & Freight Information | NSN 5920-00-228-4417
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-228-4417
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
