NSN 5920-00-107-2798 296501, 29650-1, 2M
Product Details | RECEPTACLE FUSEHOLDER
5920-00-107-2798 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.
Part Alternates: 296501, 29650-1, 2M, 5920-00-107-2798, 00-107-2798, 5920001072798, 001072798
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 AUG 1968 | 00-107-2798 | 28910 ( FUSEHOLDER, RECEPTACLE ) |
Drawings & Photos | NSN 5920-00-107-2798
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-107-2798
Related Products | NSN 5920-00-107-2798
Technical Data | NSN 5920-00-107-2798
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 125.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | SCREW BASE |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |

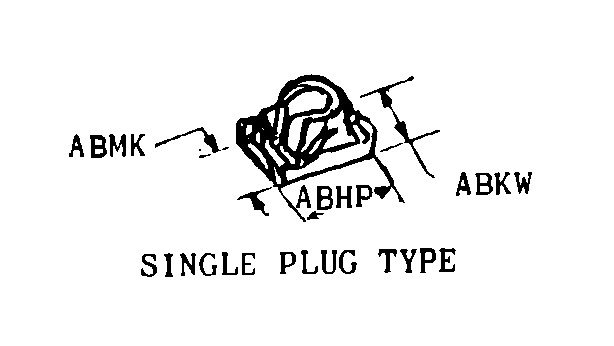

| BODY STYLE | E1 SINGLE PLUG TYPE |
| OVERALL LENGTH | 2.562 INCHES NOMINAL |
| OVERALL HEIGHT | 1.469 INCHES NOMINAL |
| OVERALL WIDTH | 2.281 INCHES NOMINAL |
| MOUNTING HOLE STYLE | F28 IN-LINE ALONG THE LENGTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.750 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 1 AND 1 |
| MOUNTING HOLE DIAMETER | 0.219 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, SOLID NEUTRAL |
| III BODY MATERIAL | CERAMIC |
Restrictions/Controls & Freight Information | NSN 5920-00-107-2798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
