Product Details | EXTRACTOR POST FUSEHOLDER

5920-00-102-3790 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).

Part Alternates: L1348, 5920-00-102-3790, 00-102-3790, 5920001023790, 001023790

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 05 JUN 1968 00-102-3790

Drawings & Photos | NSN 5920-00-102-3790


Demand History | NSN 5920-00-102-3790

Part Number Request Date QTY Origin
5920-00-102-3790 2012-10-302 8 DIBBS
5920-00-102-3790 2012-03-68 8 DIBBS

Cross Reference | NSN 5920-00-102-3790

Part Number Cage Code Manufacturer
L1348 K0059 DIALIGHT EUROPE LIMITED

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-102-3790

Technical Data | NSN 5920-00-102-3790

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 1
CURRENT CARRYING RATING IN AMPS 5.0
VOLTAGE IN VOLTS 250.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 2 TAB, SOLDER LUG
CONTACT MATERIAL COPPER
CONTACT SURFACE TREATMENT ANY ACCEPTABLE
BODY STYLE D15 BUSHING MOUNTED TYPE
OVERALL LENGTH 2.095 INCHES NOMINAL
OVERALL DIAMETER 0.750 INCHES NOMINAL
LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE 0.203 INCHES NOMINAL
BUSHING THREAD LENGTH ANY ACCEPTABLE

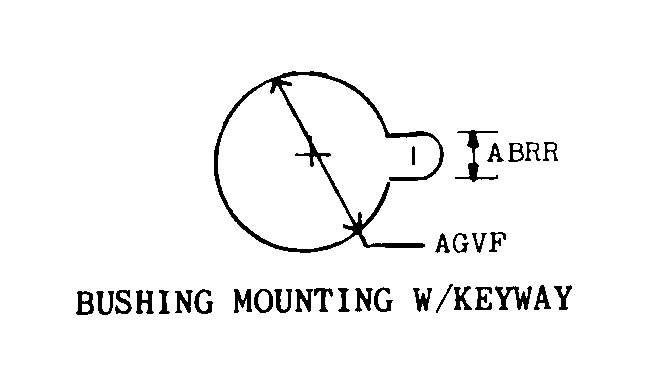

MOUNTING HOLE STYLE F19 BUSHING MOUNTING W/KEYWAY
KEYWAY WIDTH 0.140 INCHES MINIMUM AND 0.145 INCHES MAXIMUM
BUSHING HOLE DIAMETER 0.640 INCHES MINIMUM AND 0.645 INCHES MAXIMUM
MOUNTING HOLE QUANTITY 1
ACCOMMODATED FUSE LENGTH 1.250 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER 0.250 INCHES NOMINAL
ENVIRONMENTAL PROTECTION ANY ACCEPTABLE
III TERMINAL MATERIAL BRASS
III BODY MATERIAL PLASTIC
