NSN 5920-00-097-7643 GA11613L1, 00-097-7643, 000977643
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-097-7643 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: GA11613L1, 5920-00-097-7643, 00-097-7643, 5920000977643, 000977643
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 MAY 1968 | 00-097-7643 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-097-7643
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-097-7643
Technical Data | NSN 5920-00-097-7643
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 15.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |
| BODY STYLE | D4 PANEL MOUNTED TYPE |
| OVERALL LENGTH | 3.219 INCHES NOMINAL |
| OVERALL HEIGHT | 1.688 INCHES NOMINAL |
| OVERALL WIDTH | 1.688 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 1.000 INCHES NOMINAL |

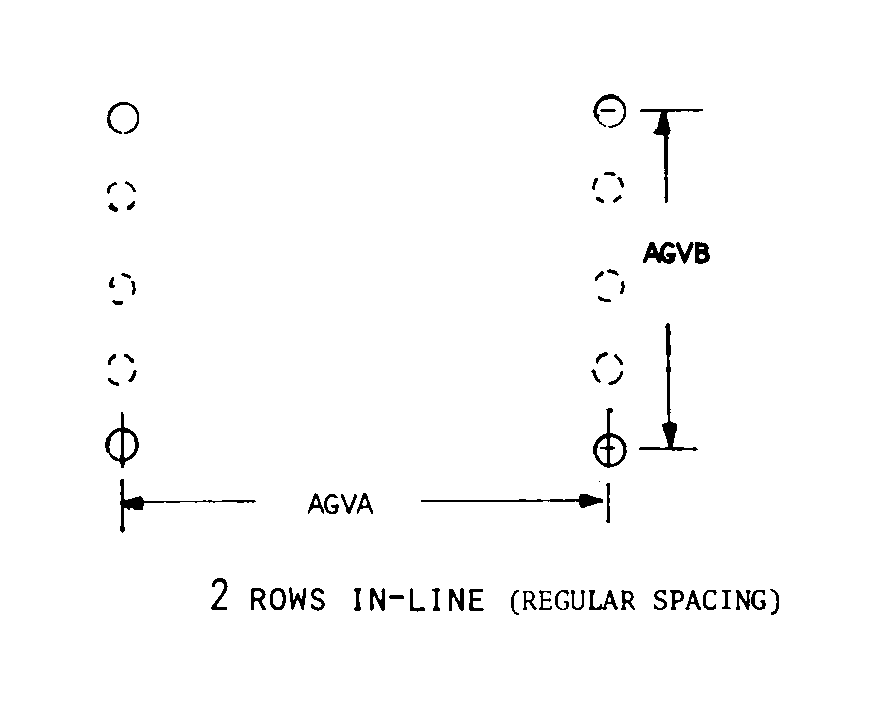

| MOUNTING HOLE STYLE | F32 2 ROWS IN-LINE |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.375 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.152 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| III TERMINAL MATERIAL | BRASS |
| III TERMINAL SURFACE TREATMENT | COPPER AND TIN PLATED |
| III BODY MATERIAL | PLASTIC, PHENOLIC, MIL-M-14, TYPE CFG |
