Product Details | BLOCK FUSEHOLDER

5920-00-042-9165 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: 72587, 5920-00-042-9165, 00-042-9165, 5920000429165, 000429165

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1961 00-042-9165

Drawings & Photos | NSN 5920-00-042-9165


Cross Reference | NSN 5920-00-042-9165

Part Number Cage Code Manufacturer
72587 04009 COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-042-9165

Technical Data | NSN 5920-00-042-9165

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 4
CURRENT CARRYING RATING IN AMPS 30.0
VOLTAGE IN VOLTS 250.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 8 SCREW
CONTACT MATERIAL COPPER

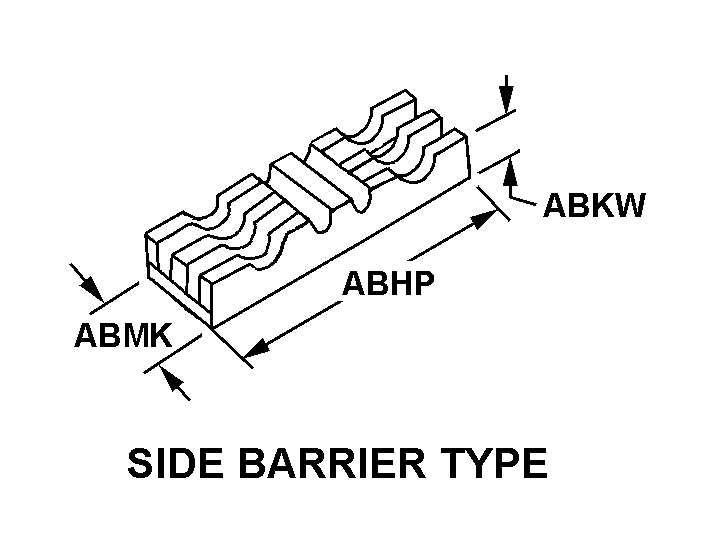

BODY STYLE C15 SIDE BARRIER TYPE
OVERALL LENGTH 7.937 INCHES NOMINAL
OVERALL HEIGHT ANY ACCEPTABLE
OVERALL WIDTH 3.000 INCHES NOMINAL
MANUFACTURERS CODE 04009
DESIGN CONTROL REFERENCE 72587

Restrictions/Controls & Freight Information | NSN 5920-00-042-9165

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
