Product Details | BLOCK FUSEHOLDER

5920-00-040-2923 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: 885178, 5920-00-040-2923, 00-040-2923, 5920000402923, 000402923

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-040-2923

Drawings & Photos | NSN 5920-00-040-2923


Cross Reference | NSN 5920-00-040-2923

Part Number Cage Code Manufacturer
885178 06141 L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-040-2923

Technical Data | NSN 5920-00-040-2923

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 4
CURRENT CARRYING RATING IN AMPS 30.0
VOLTAGE IN VOLTS 250.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 8 SCREW
CONTACT MATERIAL PHOSPHOR BRONZE
CONTACT SURFACE TREATMENT NICKEL PLATED
BODY STYLE C7 CENTER BARRIER TYPE
OVERALL LENGTH 4.000 INCHES NOMINAL
OVERALL HEIGHT 0.687 INCHES NOMINAL
OVERALL WIDTH 2.750 INCHES NOMINAL
BASE THICKNESS 0.188 INCHES NOMINAL

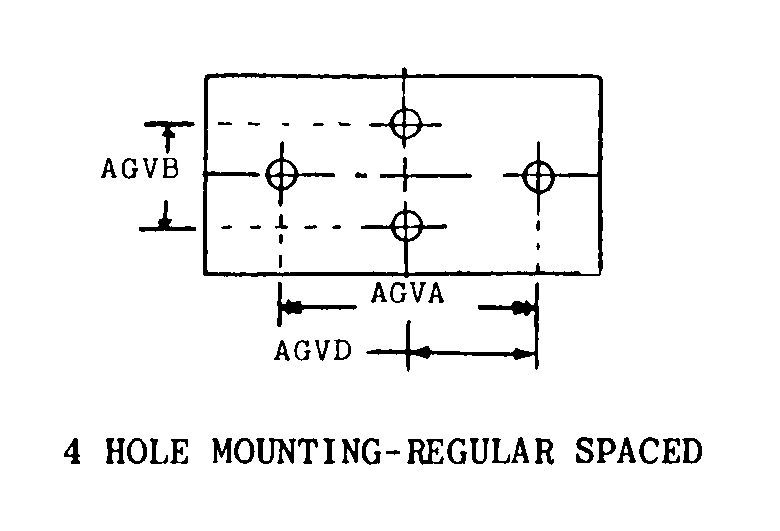

MOUNTING HOLE STYLE F11 4 HOLE MOUNTING-REGULAR SPACED
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH 3.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH 2.124 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN INSIDE MOUNTING HOLES ALONG LENGTH 0.750 INCHES NOMINAL
MOUNTING HOLE QUANTITY 4
MOUNTING HOLE DIAMETER 0.180 INCHES NOMINAL
ACCOMMODATED FUSE LENGTH 1.250 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER 0.281 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY 4 POLE, MAINLINE, FUSED
III BODY MATERIAL PLASTIC, MELAMINE
