NSN 5920-00-010-6652 MS9007812, MS90078-12, MF127

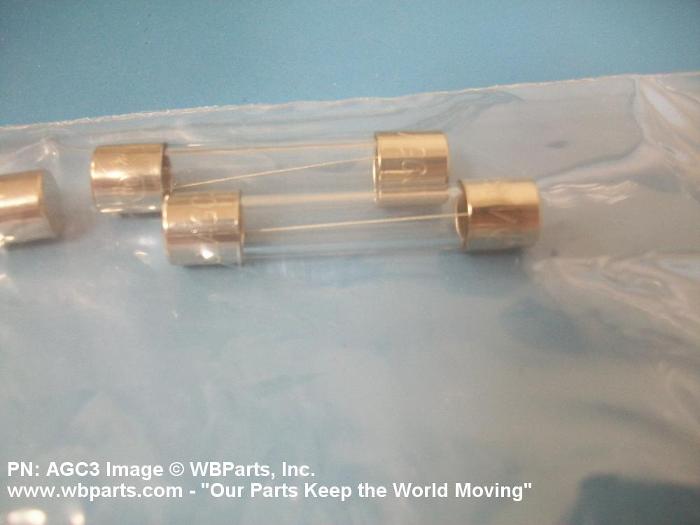

Product Details | CARTRIDGE FUSE

5920-00-010-6652 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.

Part Alternates: MS9007812, MS90078-12, MF127, MF1-27, AGC-3, AGC-3.0, AGC30, AGC3A250V, AGC3AMP250V, A5161, A80224, A8022-4, A82W43, A-82W43, BA1008211, BA10082-11, SS23A, SS2-3A, H61-3, T512016, W1116610, W-11166-10, MIL-F-15160/2, MILF151602, MIL-PRF-15160/2, MILPRF151602, FE634, FE6-34, G82674PC158, ES711C008, F0073002502D7, F02A125V3A, F02A250V300AS, F02A250V3-00AS, F02A250V300S, F02A250V3-00S, F02A250V3A, F05-3022.05, F05302205, F05-3022-05, F10300F, F212, FC10, H613, ACG3, AGC3, 1629727-22, 90-07217-00, 91450657, 93665, 936-65, 9461621212, 946162-1212, 99442514, 994425-14, 99901002, 5M481122054, 5M4811-220-54, 64490031, 6449-0031, 65S00020404 , 6614312003, 6614-312003, 7-13-101-060, 7149A, 7149-A, 7528001P055, 77510, 775-10, 81554, 83783200, 837832-00, 8450141, 845-0141, 875FU0098 , 8850001, 88-50001, 010079-112, 04164340303, 0416434-0303, 10000170, 1000-0170, 105-213528, 1090090012, 109-009-0012, 1209800003, 120-98-00003, 132927, 137M2, 15698, 1802839-21, 1850745, 185074-5, 193403A, 19340-3A, 20004071P5, 21100003, 2110-0003, 2267176P68, 226-7176P68, 226M0004P014, 2400050018, 2400-05-0018, 27F659, 3005533, 300553-3, 312003, 312-003, 3133A6, 313-3A6, 3150049, 320016, 341796, 35001030, 350-010-30, 100653-014, 159-0015-00, 16656-0016, 16708045267, 16708-04-5-267, 351-006-012, 3744W14P001, 3A3AG, 3AG312003, 3AG3A, 3AG-3A, 3AG3AMP, 40101304022, 40101-304-022, 4010304022, 4010-304-022, 4133725-43, 446802, 44-680-2, 4510002010, 451-0002-010, 5100053R0, 510005-3R0, 51533011, 51-533-011, 5253361, 5253-361, 56913000, 56913-000, 590526, 590-526, 5920-00-010-6652, 00-010-6652, 5920000106652, 413372543, 180283921, 162972722, 100800028, 105213528, 010079112, 030104005, 100653014, 159001500, 351006012, 000106652, 166560016, 900721700, 713101060

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-010-6652	00248 ( FUSE, CARTRIDGE )

Drawings & Photos | NSN 5920-00-010-6652

Part Number	Request Date	QTY	Origin
5920-00-010-6652	2024-03-76	1	us
5920-00-010-6652	2023-11-328	1247	DIBBS
5920-00-010-6652	2023-11-316	1247	DIBBS
5920-00-010-6652	2018-12-338	10000	DIBBS
5920-00-010-6652	2018-08-220	6162	DIBBS
5920-00-010-6652	2018-05-141	4025	DIBBS
5920-00-010-6652	2016-09-263	8500	DIBBS
5920-00-010-6652	2016-09-251	8500	DIBBS
5920-00-010-6652	2015-11-306	6510	DIBBS
5920-00-010-6652	2012-05-152	1500	DIBBS
5920-00-010-6652	2012-04-114	409	DIBBS
5920-00-010-6652	2012-04-94	3015	DIBBS
5920-00-010-6652	2012-03-62	529	DIBBS
5920-00-010-6652	2012-02-34	2568	DIBBS
5920-00-010-6652	2012-01-11	100	United States
5920-00-010-6652	2011-09-245	4740	DIBBS
5920-00-010-6652	2011-07-186	12	United States
5920-00-010-6652	2011-06-174	2324	DIBBS
5920-00-010-6652	2010-08-218	1788	DIBBS
5920-00-010-6652	2010-06-161	3571	DIBBS
5920-00-010-6652	2010-02-53	6092	DIBBS
5920-00-010-6652	2009-10-282	40	US
5920-00-010-6652	2009-09-266	40	US
5920-00-010-6652	2007-03-62	14300	DIBBS
5920-00-010-6652	2007-03-62	11746	DIBBS

Cross Reference | NSN 5920-00-010-6652

Part Number	Cage Code	Manufacturer
010079-112	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
030104005	92110	SERVO CORPORATION OF AMERICA
0416434-0303	06668	TEXAS INSTRUMENTS INC INFORMATION TECHNOLOGY GROUP
1000-0170	09017	EDO
100653-014	18336	AGSCO CORP
100653-014	18338	XEROX CORP XEROX DOCUMENTATION AND SOFTWARE
100800028	55299	STORAGE TECHNOLOGY CORPORATION DBA STORAGETEK
105-213528	05351	PYROTRONICS DIV OF BAKER INDUSTRIES INC
109-009-0012	88818	KEARFOTT CORPORATION DBA KEARFOTT
120-98-00003	06141	L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION
132927	19139	EASTMAN KODAK COMPANY DBA KODAK
137M2	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
15698	36575	AIRCHIME MFG CO LTD
159-0015-00	80009	TEKTRONIX, INC. DBA TEKTRONIX
1629727-22	0UU57	BLUE WAVE ULTRASONICS, INC.
16656-0016	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
16708-04-5-267	35181	CAE INC
1802839-21	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
185074-5	37695	RAYTHEON COMPANY DBA RAYTHEON
19340-3A	D3841	WICKMANN WERKE GMBH
19340-3A	DN837	LITTELFUSE GMBH
20004071P5	07076	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SIMULATION
2110-0003	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
2110-0003	75915	LITTELFUSE, INC.
226-7176P68	49956	RAYTHEON COMPANY DBA RAYTHEON
226M0004P014	49956	RAYTHEON COMPANY DBA RAYTHEON
2400-05-0018	23338	WAVETEK U S INC DIV OF WAVETEK CORP
27F659	02929	NEWARK ELECTRONICS CORPORATION DBA NEWARK
300553-3	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
312-003	14668	CALCOMP INC
312003	5K255	CRUCIBLE MATERIALS CORP CRUCIBLE SPECIALTY METALS DIV
312003	75915	LITTELFUSE, INC.
312003	95915	SJOGREN TOOL AND MACHINE CO INC
312003	D3841	WICKMANN WERKE GMBH
312003	DN837	LITTELFUSE GMBH
313-3A6	75915	LITTELFUSE, INC.
3150049	21340	ITT TELECOM PRODUCTS CORP NETWORK SYSTEMS DIV
320016	75915	LITTELFUSE, INC.
341796	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
350-010-30	30068	HENDERSON ENGINEERING CO INC DBA SAHARA AIR DRYERS
351-006-012	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
3744W14P001	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
3A3AG	75915	LITTELFUSE, INC.
3AG-3A	75915	LITTELFUSE, INC.
3AG312003	75915	LITTELFUSE, INC.
3AG3A	71400	COOPER BUSSMANN INC
3AG3AMP	75915	LITTELFUSE, INC.
4010-304-022	14668	CALCOMP INC
40101-304-022	14668	CALCOMP INC
4133725-43	05869	RAYTHEON COMPANY DBA RAYTHEON
44-680-2	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
451-0002-010	94756	BOEING COMPANY, THE DBA BOEING
51-533-011	08742	ASTEC AMERICA INC.
510005-3R0	25512	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA DENRO SYSTEMS
5253-361	05869	RAYTHEON COMPANY DBA RAYTHEON
56913-000	01534	RAYTHEON COMPANY DBA RAYTHEON
590-526	90031	RAYMOND CORPORATION, THE
5M4811-220-54	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6449-0031	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
65S00020404	50012	MOTOROLA COMMUNICATIONS GROUP PARTS DEPT
6614-312003	01496	AIR DRY CO OF AMERICA, LLC DIV ESTERLINE
7-13-101-060	57143	R F POWER LABS INC
7149-A	01420	HOYT CORPORATION
7528001P055	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
775-10	08576	PENTAIR FILTRATION SOLUTIONS, LLC DBA EVERPURE
81554	72617	BLACK AND DECKER /US/ INC DEWALT DIV
837832-00	32345	DEFENSE REDUCTION AGENCY
845-0141	01364	ALLIED ELECTRONICS INC SUB OF HALL-MARK ELECTRONICS CORP
875FU0098	A0199	OTO MELARA SPA
88-50001	06141	L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION
90-07217-00	15476	COMPAQ FEDERAL LLC
91450657	F6481	THALES SA
936-65	67177	ZENITH ELECTRONICS CORPORATION
946162-1212	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
994425-14	35351	GE AVIATION SYSTEMS LLC
99901002	U2735	QUANTITECH LTD
A-82W43	36346	UNION CARBIDE CORP SUB OF DOW CO THE
A5161	96787	STEWART AVIONICS INC
A8022-4	58166	LARRY HESS & ASSOCIATES INC DBA BLAST IT ALL
ACG3	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
AGC-3	73274	HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS
AGC-3.0	71400	COOPER BUSSMANN INC
AGC3	71400	COOPER BUSSMANN INC
AGC3	72853	STANT CORP EDELMANN DIV
AGC3	75915	LITTELFUSE, INC.
AGC3A250V	71400	COOPER BUSSMANN INC
AGC3AMP250V	71400	COOPER BUSSMANN INC
BA10082-11	01714	LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS
BA10082-11	71400	COOPER BUSSMANN INC
ES711C008	95093	NORTHROP GRUMMAN-CANADA LTD
F0073002502D7	0177B	INDRA SISTEMAS SA DBA TECNOLOGIA INFORMATICA AVANZADA,
F02A125V3A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F02A250V3-00AS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F02A250V3-00S	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F02A250V3A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F05-3022-05	57939	KENWOOD ELECTRONICS INC
F05-3022.05	57939	KENWOOD ELECTRONICS INC
F10300F	34764	SCIENTIFIC RADIO SYSTEMS INC
F212	57655	NAUTEL MAINE INC.
FC10	37338	NAUTEL LIMITED
FC10	57655	NAUTEL MAINE INC.
FE6-34	28873	HOBART CORPORATION DBA HOBART
G82674PC158	01379	EMERSON PROCESS MANAGEMENT VALVE ACTUATION LLC
H61-3	38589	MARTIN-DECKER TOTCO INC DBA M/D TOTCO
MF1-27	06793	BELSHAW BROS INC
MIL-F-15160/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-15160/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90078-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SS2-3A	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
T512016	50655	QUALIMETRICS INC
W-11166-10	28835	HOBART BROS CO
