NSN 5915-01-393-7892 FX360808SS, FX360-80-8SS, 0801410001
Product Details | BAND PASS FILTER
5915-01-393-7892 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: FX360808SS, FX360-80-8SS, 0801410001, 08-01410-001, 2850, 5915-01-393-7892, 01-393-7892, 5915013937892, 013937892
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JUL 1994 | 01-393-7892 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-01-393-7892
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-393-7892
Related Products | NSN 5915-01-393-7892
Technical Data | NSN 5915-01-393-7892
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 360.0 MEGAHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 0.7 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 320.00 MEGAHERTZ BLANK AND 400.00 MEGAHERTZ BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 THREADED STUD INPUT 1 THREADED STUD OUTPUT |

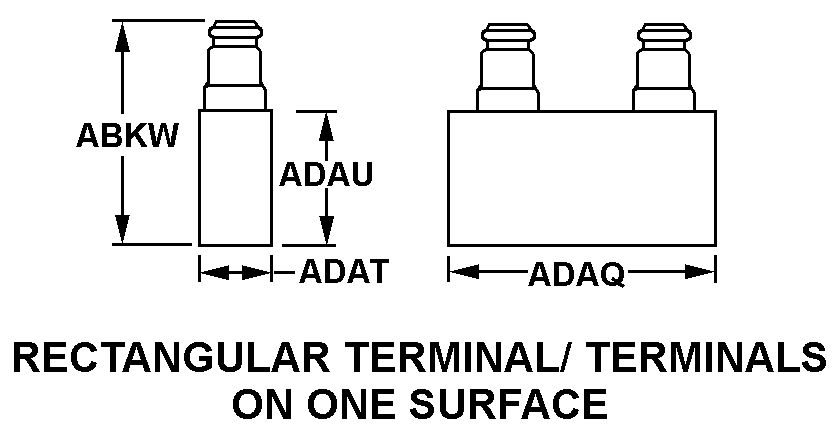

| STYLE DESIGNATOR | 44 RECTANGULAR TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| BODY LENGTH | 3.875 INCHES NOMINAL |
| BODY HEIGHT | 3.500 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| MANUFACTURERS CODE | 00724 |
| MFR SOURCE CONTROLLING REFERENCE | 08-01410-001 |
