NSN 5915-01-393-7220 RF10111, RF1011-1, 246601065000
Product Details | BAND PASS FILTER
5915-01-393-7220 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: RF10111, RF1011-1, 246601065000, 246-601065-000, 5915-01-393-7220, 01-393-7220, 5915013937220, 013937220
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUL 1994 | 01-393-7220 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-01-393-7220
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-393-7220
Related Products | NSN 5915-01-393-7220
Technical Data | NSN 5915-01-393-7220
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 300.0 MEGAHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 5.5 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 299.70 MEGAHERTZ BLANK AND 300.00 MEGAHERTZ BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 PIN INPUT 1 PIN OUTPUT 1 PIN GROUND |

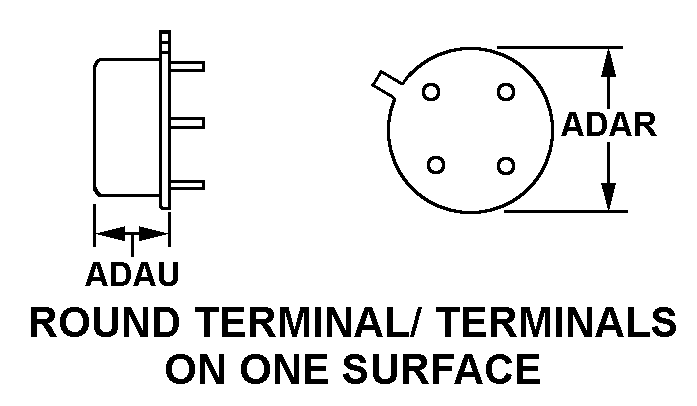

| STYLE DESIGNATOR | 40 ROUND TERMINAL/TERMINALS ON ONE SURFACE |
