NSN 5915-01-312-9126 08P22809303, 08P228093-03, 2850AY55B
Product Details | BAND PASS FILTER
5915-01-312-9126 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: 08P22809303, 08P228093-03, 2850AY55B, 2850-AY55-B, 5268499010, 526-8499-010, 5915-01-312-9126, 01-312-9126, 5915013129126, 013129126
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 DEC 1989 | 01-312-9126 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-01-312-9126
Cross Reference | NSN 5915-01-312-9126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08P228093-03 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 2850-AY55-B | 55097 | SHILOH INDUSTRIES, INC. |
| 526-8499-010 | 2X491 | ROCKWELL COLLINS INC. DBA ROCKWELL COLLINS FILTER PRODUCTS DIV FILTER |
| 526-8499-010 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-312-9126
Related Products | NSN 5915-01-312-9126
Technical Data | NSN 5915-01-312-9126
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 500.0 KILOHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 8.0 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 496.50 KILOHERTZ BLANK AND 503.50 KILOHERTZ BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG INPUT 2 TAB, SOLDER LUG OUTPUT 1 TAB, SOLDER LUG GROUND |

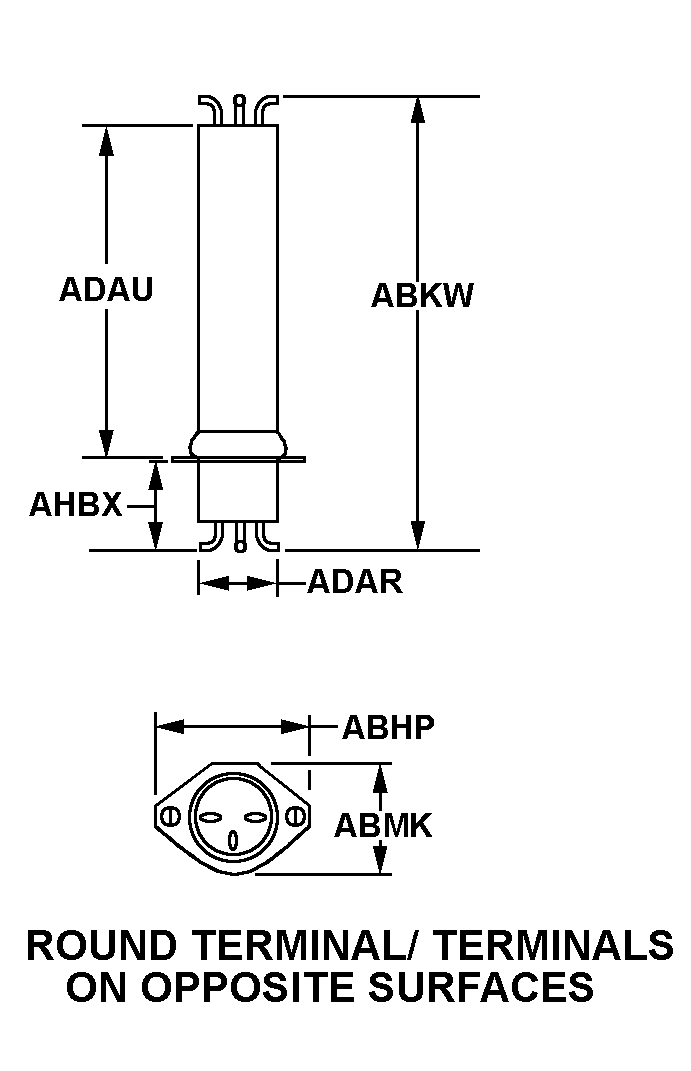

| STYLE DESIGNATOR | 14 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL HEIGHT | 2.624 INCHES MAXIMUM |
| OVERALL WIDTH | 0.660 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| BODY HEIGHT | 1.604 INCHES MINIMUM AND 1.696 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.432 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING SURFACE AND LOWER END | 0.584 INCHES MINIMUM AND 0.616 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.123 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| FEATURES PROVIDED | SHOCK RESISTANT |
| III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION | 490.50 KILOHERTZ BLANK AND 496.50 KILOHERTZ BLANK AND 503.50 KILOHERTZ BLANK AND 509.50 KILOHERTZ BLANK |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 60.0 MAXIMUM BLANK AND 3.0 MINIMUM BLANK AND 3.0 MINIMUM BLANK AND 60.0 MAXIMUM BLANK |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE BLANK |
| III OPERATING TEMP RANGE | -30.0 TO 85.0 DEG CELSIUS |
| III BODY MATERIAL | METAL |
| III BODY SURFACE TREATMENT | TIN |
Restrictions/Controls & Freight Information | NSN 5915-01-312-9126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-01-312-9126
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
