NSN 5915-01-041-6463 BC126, BC-126, SMC877192
Product Details | BAND PASS FILTER
5915-01-041-6463 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: BC126, BC-126, SMC877192, SM-C-877192, 3650, 5915-01-041-6463, 01-041-6463, 5915010416463, 010416463
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAY 1977 | 01-041-6463 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-01-041-6463
Demand History | NSN 5915-01-041-6463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5915-01-041-6463 | 2015-02-50 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-041-6463
Related Products | NSN 5915-01-041-6463
Technical Data | NSN 5915-01-041-6463
| Characteristic | Specifications |
|---|---|
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 1.0 BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| VOLTAGE STANDING WAVE RATIO PER FUNCTION | 1.5 BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE INPUT 1 CONNECTOR, RECEPTACLE OUTPUT |

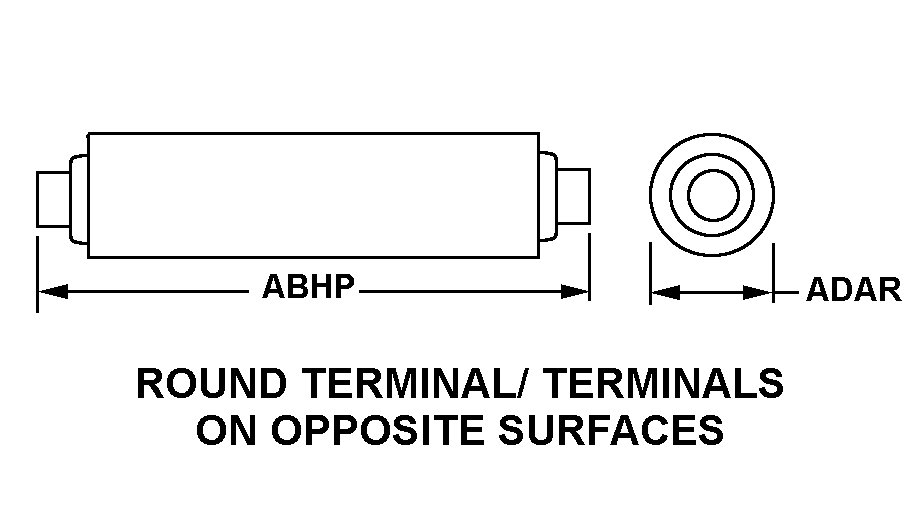

| STYLE DESIGNATOR | 26 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 4.250 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| FEATURES PROVIDED | NUT |
| SPECIAL FEATURES | WEAPO SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 30.0 MINIMUM BLANK AND 1.0 MAXIMUM BLANK AND 1.0 MAXIMUM BLANK AND 40.0 MINIMUM BLANK |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE BLANK |
| III INPUT TERMINAL MANUFACTURER CODE | 81349 |
| III INPUT TERMINAL IDENTIFICATION | TNC |
| III OUTPUT TERMINAL MANUFACTURER CODE | 81349 |
| III OUTPUT TERMINAL IDENTIFICATION | SMA |
| III UNPACKAGED UNIT WEIGHT | 5.000 OUNCES |
| III VIBRATION RESISTANCE RANGE IN HERTZ | 10.0 TO 2000.0 |
| III OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| III BODY MATERIAL | METAL |
