NSN 5915-00-933-2635 C523314, SMC523314, 00-933-2635
Product Details | CAPACITOR-RESISTOR
5915-00-933-2635 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: C523314, SMC523314, 5915-00-933-2635, 00-933-2635, 5915009332635, 009332635
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1966 | 00-933-2635 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-933-2635
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-933-2635
Technical Data | NSN 5915-00-933-2635
| Characteristic | Specifications |
|---|---|

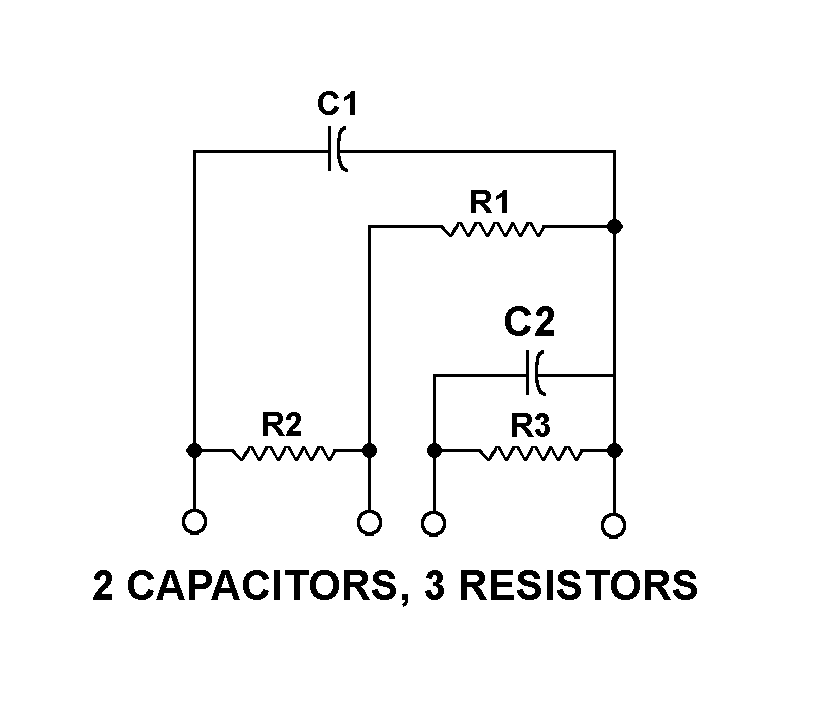

| SCHEMATIC DIAGRAM DESIGNATOR | 55 2 CAPACITORS, 3 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 1000.0 PICOFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -20.0 TO 20.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 20.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 2.7 KILOHMS RESISTOR R1 18.0 KILOHMS RESISTOR R2 150.0 OHMS RESISTOR R3 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.200 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| MOUNTING FACILITY QUANTITY | 4 |
| OVERALL LENGTH | 0.550 INCHES NOMINAL |
| OVERALL WIDTH | 0.415 INCHES NOMINAL |
| OVERALL HEIGHT | 0.140 INCHES NOMINAL |
| III CASE MATERIAL | PLASTIC |
| III CASE SURFACE TREATMENT | PLASTIC, PHENOLIC |
