NSN 5915-00-521-6775 SMC148666, 53343, 53343A
Product Details | CAPACITOR-RESISTOR
5915-00-521-6775 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: SMC148666, 53343, 53343A, 5915-00-521-6775, 00-521-6775, 5915005216775, 005216775
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-521-6775 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-521-6775
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-521-6775
Related Products | NSN 5915-00-521-6775
Technical Data | NSN 5915-00-521-6775
| Characteristic | Specifications |
|---|---|

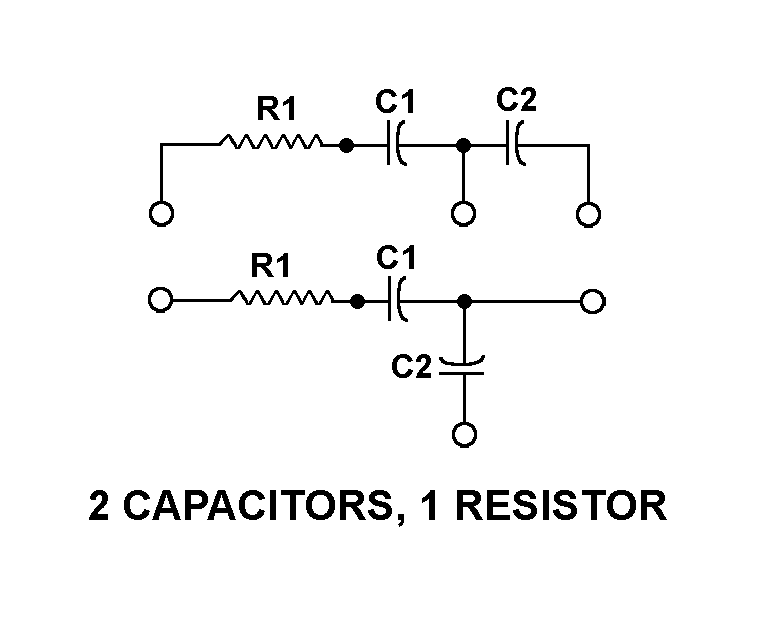

| SCHEMATIC DIAGRAM DESIGNATOR | 35 2 CAPACITORS, 1 RESISTOR |
| CAPACITANCE VALUE PER FUNCTION | 5.0 MICROFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -5.0 TO 5.0 ALL CAPACITORS |
| AC VOLTAGE RATING PER FUNCTION IN VOLTS | 330.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 10.0 OHMS RESISTOR R1 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 RESISTOR R1 |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 5.000 RESISTOR R1 |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 3 WIRE HOOK |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.185 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 5.500 INCHES NOMINAL |
| OVERALL LENGTH | 6.062 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.312 INCHES NOMINAL |
| TEST DATA DOCUMENT | 80063-SM-C-14866 DRAWING |
| III CASE MATERIAL | METAL |
| III CASE SURFACE TREATMENT | TINNED |
| III STORAGE TEMP RANGE | -80.0 TO 160.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SMC148666 |
Restrictions/Controls & Freight Information | NSN 5915-00-521-6775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-00-521-6775
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Q | Avionics |
| Weapons Systems/End Item or Homogeneous Group | QK | ATC Support |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
