NSN 5915-00-392-5981 SCDL208031, SC-DL-208031, SMD208032

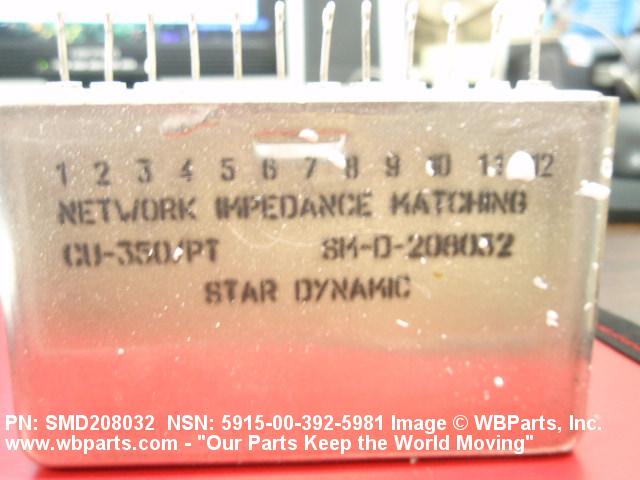

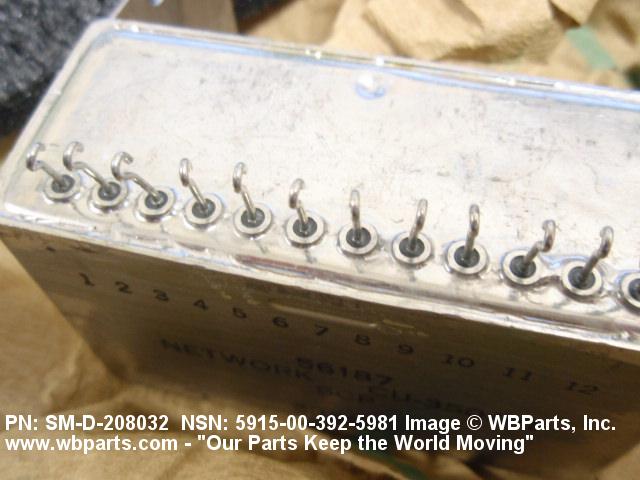

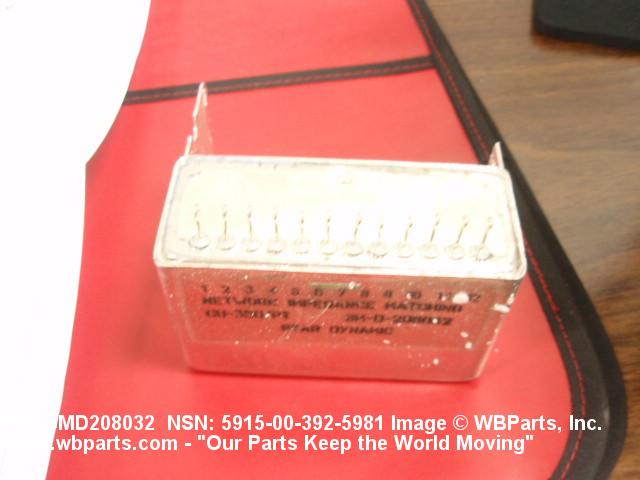

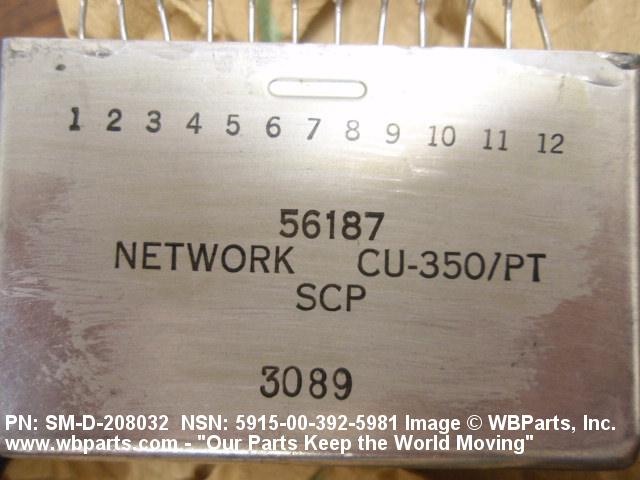

Product Details | IMPEDANCE MATCHING NETWORK

5915-00-392-5981 A grouping of two or more different discrete items, such as resistors, coils, and capacitors, electrically connected and used as a unit to couple two or more circuits in such a manner that the impedance of each circuit will be equal to the impedance into which it hooks. For items fabricated by monolithic and/or thin film techniques, see MICROCIRCUIT (as modified). See also ATTENUATOR (as modified); and TRANSFORMER (as modified). Excludes RESISTOR SET, MATCHED.

Part Alternates: SCDL208031, SC-DL-208031, SMD208032, SM-D-208032, CU-350/PT, CU350PT, GA51182, 03160001, 03160-001, 5915-00-392-5981, 00-392-5981, 5915003925981, 003925981

Electrical and Electronic Equipment Components | Filters and Networks

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-392-5981	60765 ( NETWORK, IMPEDANCE MATCHING )

Drawings & Photos | NSN 5915-00-392-5981

Part Number	Request Date	QTY	Origin
5915-00-392-5981	2013-02-41	1	DIBBS
5915-00-392-5981	2011-03-68	89	MANUAL
SMD208032	2010-10-277	2	United States
SMD208032	2010-09-271	1	United States
5915-00-392-5981	2010-04-119	158	DIBBS
5915-00-392-5981	2008-03-64	47	DIBBS
5915-00-392-5981	2008-01-31	94	DIBBS
5915-00-392-5981	2008-01-16	28	DIBBS
5915-00-392-5981	2008-01-10	4	DIBBS
5915-00-392-5981	2008-01-08	63	DIBBS
5915-00-392-5981	2007-12-353	250	DIBBS
5915-00-392-5981	2007-12-346	66	DIBBS
5915-00-392-5981	2007-10-285	25	DIBBS
5915-00-392-5981	2006-06-167	248	DIBBS

Cross Reference | NSN 5915-00-392-5981

Part Number	Cage Code	Manufacturer
03160-001	56187	CRYSTAL SOKOL PRODUCTS INC
CU-350/PT	56187	CRYSTAL SOKOL PRODUCTS INC
CU-350/PT	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
CU350PT	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
GA51182	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
GA51182	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
GA51182	70408	AT AND T CORP
GA51182	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SC-DL-208031	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SM-D-208032	28528	ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS
SM-D-208032	31550	EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS
SM-D-208032	53476	APOCA INDUSTRIES INC
SM-D-208032	60468	STAR DYNAMIC CORP
SM-D-208032	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SM-D-208032	99872	ENTRON INDUSTRIES LIMITED PARTNERSHIP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5915-00-392-5981

Compare

Related Products | NSN 5915-00-392-5981

5915-00-392-5982, 5915-00-392-5983, 5915-00-392-5984, 5915-00-392-5985, 5915-00-392-5986

Technical Data | NSN 5915-00-392-5981

Characteristic	Specifications
IMPEDANCE RATING IN OHMS	32.4 OUTPUT
INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS	1.8
FREQUENCY RANGE	300.00 HERTZ MINIMUM AND 3.30 KILOHERTZ MAXIMUM
VOLTAGE IN VOLTS AND CURRENT TYPE	0.1 AC
TERMINAL TYPE AND QUANTITY	10 PIN AND 2 WIRE HOOK
OPERATING TEMP RANGE	-40.0 TO 131.0 DEG CELSIUS
OVERALL LENGTH	3.609 INCHES NOMINAL
OVERALL HEIGHT	3.031 INCHES NOMINAL
OVERALL WIDTH	2.735 INCHES NOMINAL
