Product Details | CAPACITOR-RESISTOR
5915-00-342-4821 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: GA50747, 8007235, 5915-00-342-4821, 00-342-4821, 5915003424821, 003424821
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-342-4821 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-342-4821
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-342-4821
Technical Data | NSN 5915-00-342-4821
| Characteristic | Specifications |
|---|---|

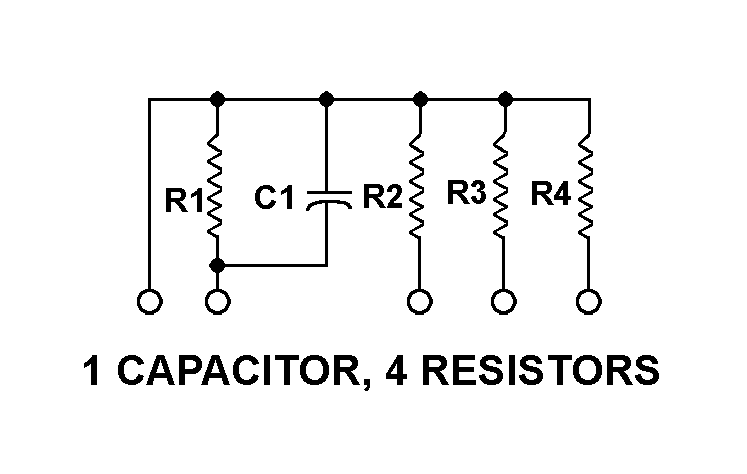

| SCHEMATIC DIAGRAM DESIGNATOR | 20 1 CAPACITOR, 4 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 820.0 PICOFARADS CAPACITOR C1 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 CAPACITOR C1 |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 400.0 CAPACITOR C1 |
| ELECTRICAL RESISTANCE PER FUNCTION | 800.0 KILOHMS RESISTOR R1 500.0 KILOHMS RESISTOR R2 500.0 KILOHMS RESISTOR R3 500.0 KILOHMS RESISTOR R4 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -2.0 TO 0.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 2.000 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 5 FEEDTHRU |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.656 INCHES MINIMUM AND 1.781 INCHES MAXIMUM |
| OVERALL WIDTH | 1.219 INCHES NOMINAL |
| OVERALL HEIGHT | 4.875 INCHES NOMINAL |
| TEST DATA DOCUMENT | 18876-8007235 DRAWING |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8007235 |
