NSN 5915-00-290-1569 SAE12447, 4303408901, 43-034089-01
Product Details | CAPACITOR-RESISTOR
5915-00-290-1569 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: SAE12447, 4303408901, 43-034089-01, 5915-00-290-1569, 00-290-1569, 5915002901569, 002901569
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 SEP 1973 | 00-290-1569 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-290-1569
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-290-1569
Technical Data | NSN 5915-00-290-1569
| Characteristic | Specifications |
|---|---|

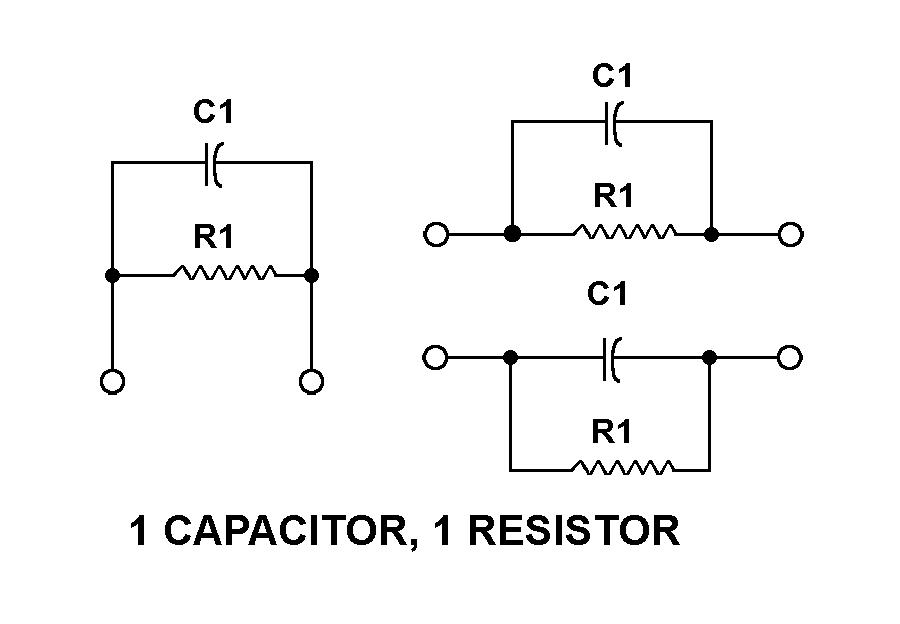

| SCHEMATIC DIAGRAM DESIGNATOR | 2 1 CAPACITOR, 1 RESISTOR |
| CAPACITANCE VALUE PER FUNCTION | 220.0 PICOFARADS CAPACITOR C1 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 CAPACITOR C1 |
| ELECTRICAL RESISTANCE PER FUNCTION | 4.7 KILOHMS RESISTOR R1 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -2.0 TO 2.0 RESISTOR R1 |
| ASSEMBLY FORM | MOLDED TOGETHER |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| OVERALL LENGTH | 0.475 INCHES NOMINAL |
| OVERALL WIDTH | 0.350 INCHES NOMINAL |
| OVERALL HEIGHT | 0.165 INCHES NOMINAL |
| MANUFACTURERS CODE | 23880 |
| DESIGN CONTROL REFERENCE | SAE12447 |
Restrictions/Controls & Freight Information | NSN 5915-00-290-1569
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
