Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-436-2291 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: DX027, PC750733, PC75073-3, 5910-01-436-2291, 01-436-2291, 5910014362291, 014362291
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1996 | 01-436-2291 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-436-2291
Demand History | NSN 5910-01-436-2291
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PC75073-3 | 2024-06-158 | 2 | DIBBS |
| PC75073-3 | 2024-05-137 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-436-2291
Related Products | NSN 5910-01-436-2291
Technical Data | NSN 5910-01-436-2291
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 8 |
| CAPACITANCE VALUE PER SECTION | 680.000 PICOFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC ALL SECTIONS |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -30.0 TO 30.0 ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

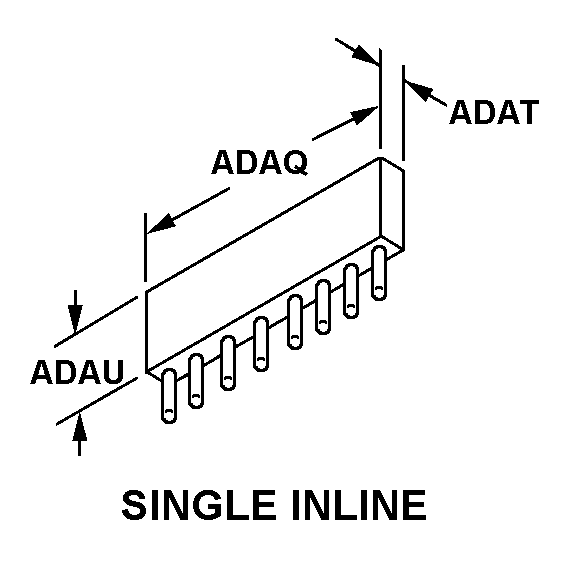

| BODY STYLE | 47A SINGLE INLINE |
| BODY LENGTH | 1.000 INCHES MAXIMUM |
| BODY WIDTH | 0.135 INCHES MAXIMUM |
| BODY HEIGHT | 0.300 INCHES MAXIMUM |

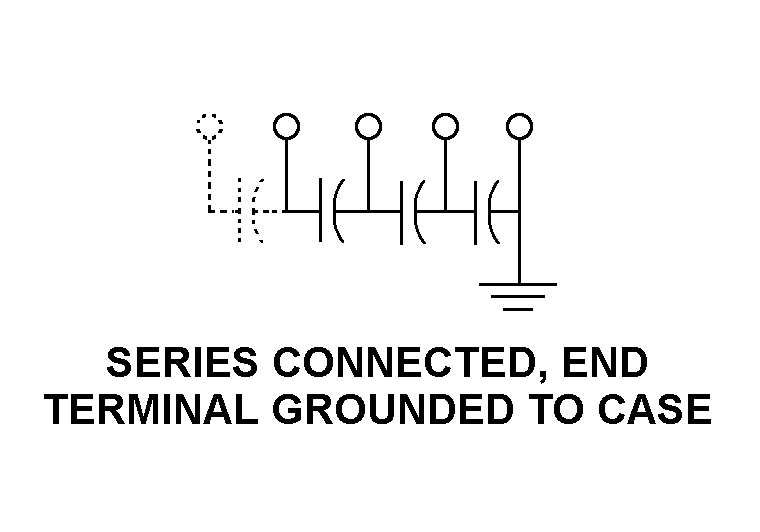

| SCHEMATIC DIAGRAM DESIGNATOR | 9C SERIES CONNECTED, END TERMINAL GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 10 PIN |
| TERMINAL LENGTH | 0.115 INCHES MINIMUM |
| CASE MATERIAL | PLASTIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.100 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
