NSN 5910-01-381-8212 CDR32BP751BFSS, MIL-C-55681/8, MILC556818
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-381-8212 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: CDR32BP751BFSS, MIL-C-55681/8, MILC556818, 5910-01-381-8212, 01-381-8212, 5910013818212, 013818212
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 OCT 1993 | 01-381-8212 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-381-8212
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-381-8212
Related Products | NSN 5910-01-381-8212
Technical Data | NSN 5910-01-381-8212
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 750.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 0.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -30.0 TO 30.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

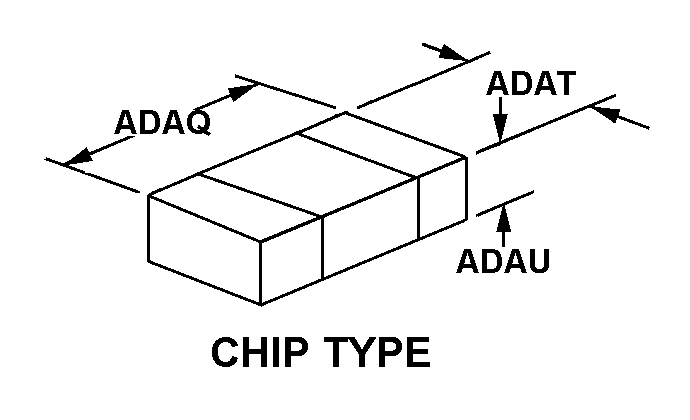

| BODY STYLE | 45A CHIP TYPE |
| BODY LENGTH | 3.0 MILLIMETERS MINIMUM AND 3.4 MILLIMETERS MAXIMUM |
| BODY WIDTH | 1.4 MILLIMETERS MINIMUM AND 1.8 MILLIMETERS MAXIMUM |
| BODY HEIGHT | 1.3 MILLIMETERS MAXIMUM |

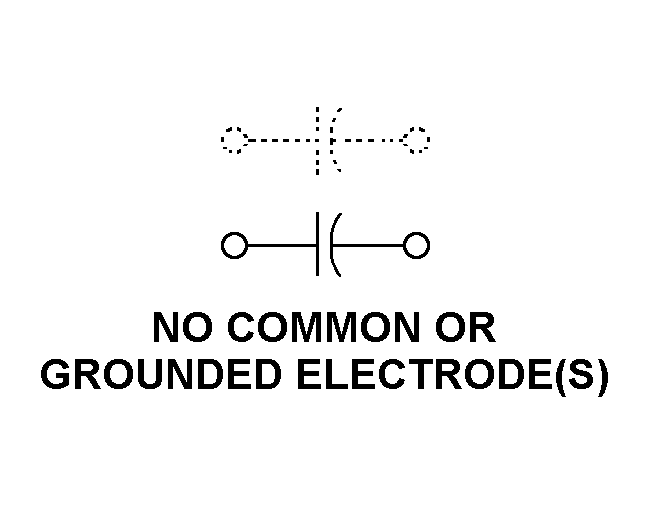

| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 BONDING PAD |
| TERMINAL LENGTH | 0.3 MILLIMETERS MINIMUM AND 0.7 MILLIMETERS MAXIMUM |
| CASE MATERIAL | CERAMIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.150 |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.001 |
| TEST DATA DOCUMENT | 81349-MIL-C-55681 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-55681/8 GOVERNMENT SPECIFICATION |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 3.0 MILLIMETERS MINIMUM AND 3.4 MILLIMETERS MAXIMUM |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 1000.0 MEGOHMS |
| (NON-CORE DATA) OVERALL HEIGHT | 1.3 MILLIMETERS MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 1.4 MILLIMETERS MINIMUM AND 1.8 MILLIMETERS MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CDR32BP751BFSS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-55681/8 |
