NSN 5910-01-347-1596 8700805, 87008-05, 01-347-1596
Product Details | CAPACITOR RETAINER
5910-01-347-1596 An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: 8700805, 87008-05, 5910-01-347-1596, 01-347-1596, 5910013471596, 013471596
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 OCT 1991 | 01-347-1596 | 19799 ( RETAINER, CAPACITOR ) |
Drawings & Photos | NSN 5910-01-347-1596
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-347-1596
Related Products | NSN 5910-01-347-1596
Technical Data | NSN 5910-01-347-1596
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | GOLD AND NICKEL OR ZINC |

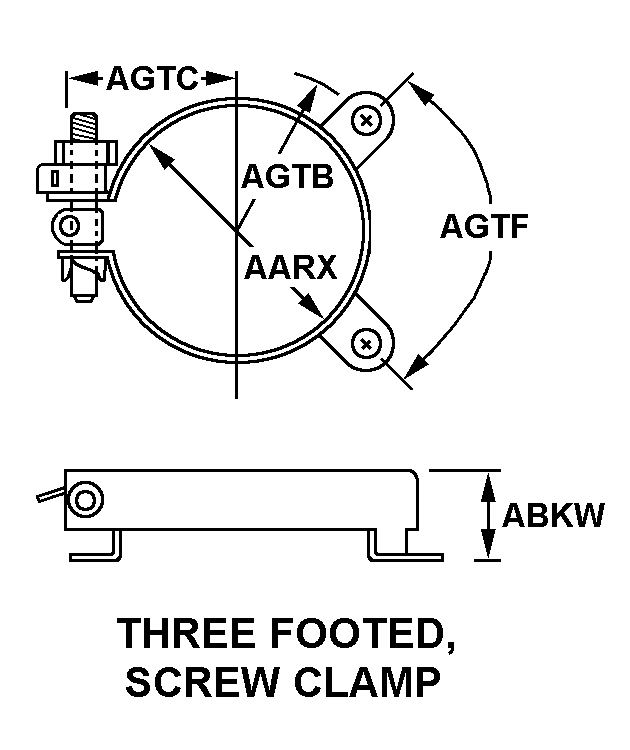

| STYLE DESIGNATOR | 26B THREE FOOTED, SCREW CLAMP |
| INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.203 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO MOUNTING FACILITY CENTER AT LOOP TIGHTENING DEVICE | 1.406 INCHES NOMINAL |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 120.0 |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 SLOT SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.176 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT LENGTH | 0.281 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | WEAPONS SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | SURFACES GOLD |
| III END ITEM IDENTIFICATION | TARAWA CLASS LHA, WASP CLASS LHD, NIMITZ CLASS CVN, FORRESTAL CLASS CV, RADAR, SEARCH, AN/SPS-48 |
Restrictions/Controls & Freight Information | NSN 5910-01-347-1596
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-347-1596
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
