NSN 5910-01-241-0210 SA305C104MAA, 01-241-0210, 012410210
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-241-0210 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: SA305C104MAA, 5910-01-241-0210, 01-241-0210, 5910012410210, 012410210
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 1986 | 01-241-0210 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-241-0210
Cross Reference | NSN 5910-01-241-0210
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SA305C104MAA | 04222 | AVX CORPORATION DBA OLEAN ADVANCED PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-241-0210
Technical Data | NSN 5910-01-241-0210
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 100000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -15.0 TO 15.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

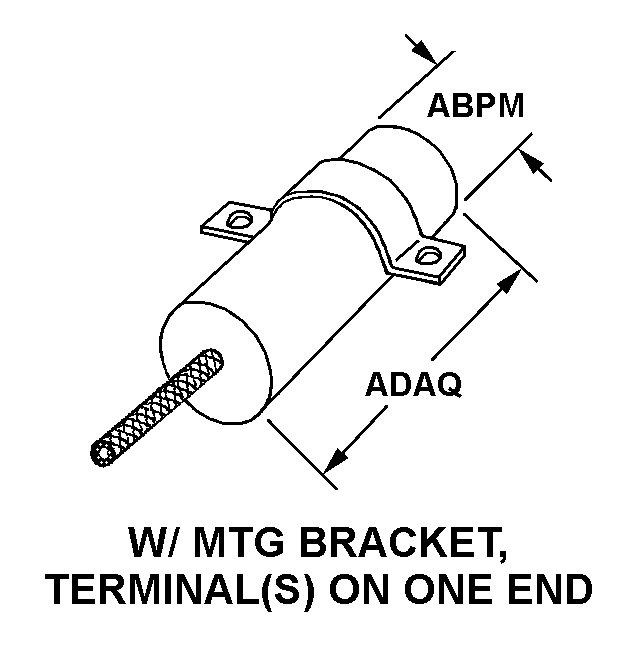

| BODY STYLE | 37B W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.150 INCHES MAXIMUM |
| BODY LENGTH | 0.300 INCHES MAXIMUM |
| BODY WIDTH | 0.300 INCHES MAXIMUM |
| BODY HEIGHT | 0.150 INCHES MINIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.250 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| CASE MATERIAL | CERAMIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 1000.0 MEGOHM-MICROFARADS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5910-01-241-0210
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
