NSN 5910-01-099-0946 MA26301K, MA26-301K, ATC100B301KNAR200
Product Details | GLASS DIELECTRIC FIXED CAPACITOR
5910-01-099-0946 A capacitor, whose capacitance value cannot be adjusted or varied, having a glass (silicas) or glass like substance (e.g., porcelain, vitreous enamel) as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: MA26301K, MA26-301K, ATC100B301KNAR200, 5910-01-099-0946, 01-099-0946, 5910010990946, 010990946
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 AUG 1980 | 01-099-0946 | 00004 ( CAPACITOR, FIXED, GLASS DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-099-0946
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-01-099-0946
Technical Data | NSN 5910-01-099-0946
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 300.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 90.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO 20.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

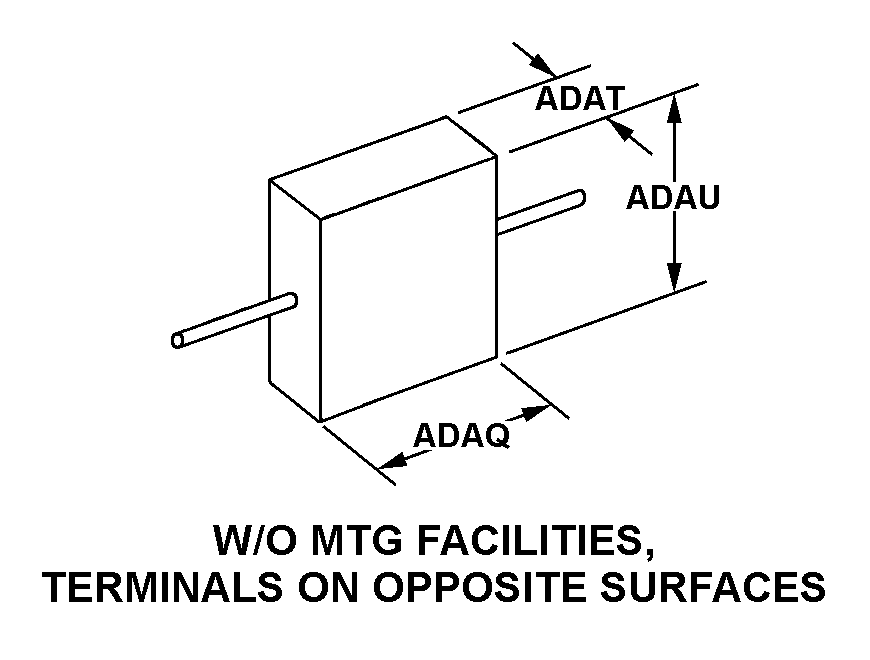

| BODY STYLE | 21A W/O MTG FACILITIES, TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 0.155 INCHES MAXIMUM |
| BODY WIDTH | 0.100 INCHES MAXIMUM |
| BODY HEIGHT | 0.125 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 RIBBON |
| TERMINAL LENGTH | 0.250 INCHES MINIMUM |
| CASE MATERIAL | GLASS |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
