NSN 5910-00-880-6082 P30ZN120, 49280, 00-880-6082
Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-880-6082 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: P30ZN120, 49280, 5910-00-880-6082, 00-880-6082, 5910008806082, 008806082
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-880-6082 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-880-6082
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-880-6082
Technical Data | NSN 5910-00-880-6082
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 4 |
| CAPACITANCE VALUE PER SECTION | 2.000 MICROFARADS 1ST SECTION 2.000 MICROFARADS 2ND SECTION 2.000 MICROFARADS 3RD SECTION 2.000 MICROFARADS 4TH SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT 1ST SECTION -20.00 TO 20.00 PERCENT 2ND SECTION -20.00 TO 20.00 PERCENT 3RD SECTION -20.00 TO 20.00 PERCENT 4TH SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 100.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 2A W/MTG TABS/FLANGES, TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| BODY HEIGHT | 0.625 INCHES NOMINAL |

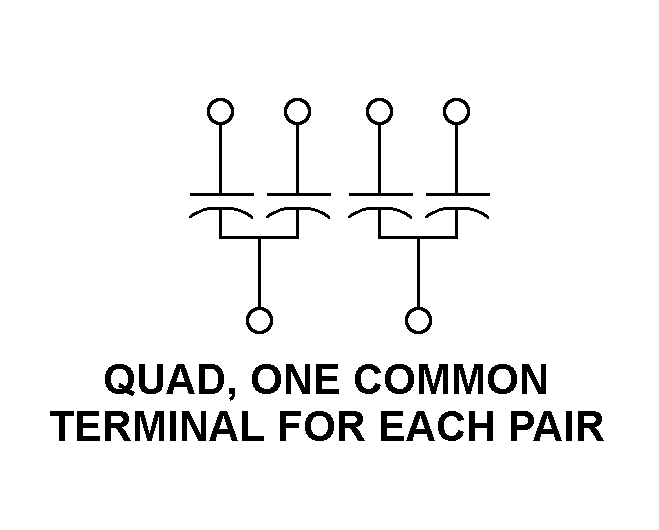

| SCHEMATIC DIAGRAM DESIGNATOR | 12C QUAD, ONE COMMON TERMINAL FOR EACH PAIR |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.375 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| (NON-CORE DATA) OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 00346 |
| DESIGN CONTROL REFERENCE | P30ZN120 |
