Product Details | GLASS DIELECTRIC FIXED CAPACITOR
5910-00-850-6216 A capacitor, whose capacitance value cannot be adjusted or varied, having a glass (silicas) or glass like substance (e.g., porcelain, vitreous enamel) as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: CY12C6R8C, MILC112725, MILC11272-5, 5910-00-850-6216, 00-850-6216, 5910008506216, 008506216
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-850-6216 | 00004 ( CAPACITOR, FIXED, GLASS DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-850-6216
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-850-6216
Related Products | NSN 5910-00-850-6216
Technical Data | NSN 5910-00-850-6216
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 6.800 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.25 TO 0.25 PICOFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 105.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -25.0 TO 25.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

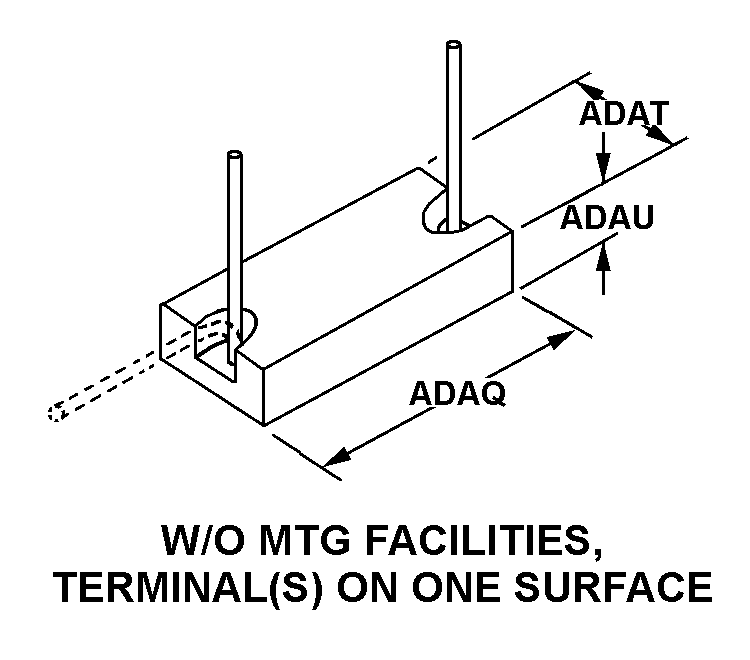

| BODY STYLE | 29A W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 0.375 INCHES NOMINAL |
| BODY WIDTH | 0.188 INCHES NOMINAL |
| BODY HEIGHT | 0.156 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.125 INCHES MINIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.285 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| CASE MATERIAL | GLASS |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.0010 |
| QUALITY FACTOR AT REFERENCE TEMP | 2000.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-C-11272 SPECIFICATION |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 0.375 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.156 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.188 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CY12C6R8C |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC11272-5 |
