NSN 5910-00-445-8890 24133619, 241-33619, 815100VZ5U0302M
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-445-8890 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: 24133619, 241-33619, 815100VZ5U0302M, 815-100VZ5U0-302M, Z5U, 5910-00-445-8890, 00-445-8890, 5910004458890, 004458890
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-445-8890 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |

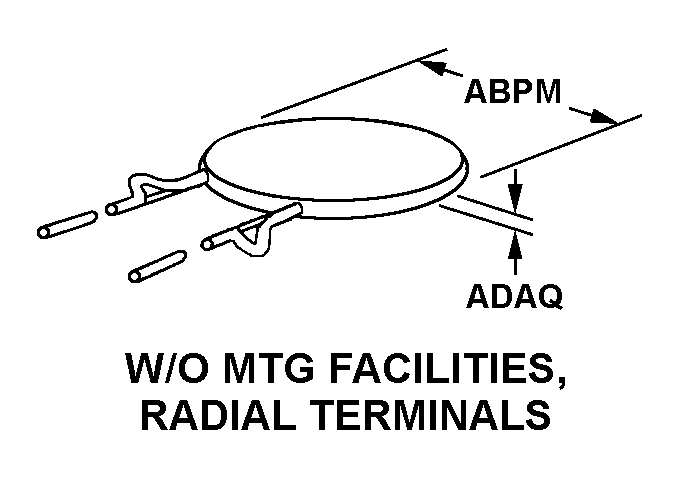

Drawings & Photos | NSN 5910-00-445-8890
Cross Reference | NSN 5910-00-445-8890
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10TSD30 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| 10TSD30 | 60705 | CERA-MITE CORP |
| 241-33619 | 24976 | DANFOSS INC |
| 562CX5FAA102EJ302K | 60705 | CERA-MITE CORP |
| 815-100VZ5U0-302M | 59660 | TUSONIX, INC. |
| C016B102K302K | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| C016B102K302K | 60705 | CERA-MITE CORP |
| JL | 91418 | RADIO MATERIALS CORP |
| Z5U | 91418 | RADIO MATERIALS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-445-8890
Technical Data | NSN 5910-00-445-8890
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 3000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE PER SECTION IN PPM PER DEG CELSIUS | 0.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT PER SECTION IN PPM PER DEG CELSIUS | -56.0 TO 22.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | 10.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 22B W/O MTG FACILITIES, RADIAL TERMINALS |
| BODY DIAMETER | 0.575 INCHES NOMINAL |
| BODY LENGTH | 0.125 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.375 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 7500.0 MEGOHMS |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 3.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 1000.0 MEGOHMS |
