Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-280-8382 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: SS19721, SS1972-1, 5910-00-280-8382, 00-280-8382, 5910002808382, 002808382
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-8382 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-280-8382
Cross Reference | NSN 5910-00-280-8382
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS1972-1 | 23663 | JOSLYN PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-280-8382
Related Products | NSN 5910-00-280-8382
Technical Data | NSN 5910-00-280-8382
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 2000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

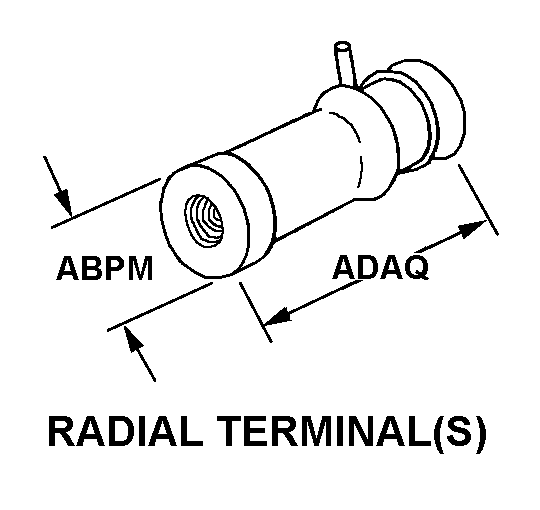

| BODY STYLE | 25B RADIAL TERMINAL(S) |
| BODY DIAMETER | 0.242 INCHES MAXIMUM |
| BODY LENGTH | 0.703 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 4C TWO TERMINALS COMMON TO ONE ELECTRODE |
| TERMINAL TYPE AND QUANTITY | 1 UNINSULATED WIRE LEAD AND 2 THREADED HOLE |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CASE MATERIAL | CERAMIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| (NON-CORE DATA) OVERALL LENGTH | 0.703 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.250 INCHES NOMINAL |
