NSN 5910-00-245-0328 S2351021P2ISSUE4, S235-1021P2ISSUE4 , 9072231
Product Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-245-0328 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: S2351021P2ISSUE4, S235-1021P2ISSUE4 , 9072231, 2351021, 235-1021, 23510212, 235-1021-2, 2450328, 2450-328, 2DSA91L472MAA, 5910-00-245-0328, 00-245-0328, 5910002450328, 002450328
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-245-0328 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-245-0328
Demand History | NSN 5910-00-245-0328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-00-245-0328 | 2009-12-350 | 20 | Spain |
| 5910-00-245-0328 | 2008-08-231 | 5 | DIBBS |
Cross Reference | NSN 5910-00-245-0328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 235-1021 | 91984 | MAIDA DEVELOPMENT CO |
| 235-1021-2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 235-1021-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 2450-328 | 54991 | ASCHBACHER AND ASSOCIATES INC |
| 2DSA91L472MAA | 21052 | HIGH ENERGY CORP. |
| 9072231 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| S235-1021P2ISSUE4 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| S235-1021P2ISSUE4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-245-0328
Related Products | NSN 5910-00-245-0328
Technical Data | NSN 5910-00-245-0328
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 4700.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

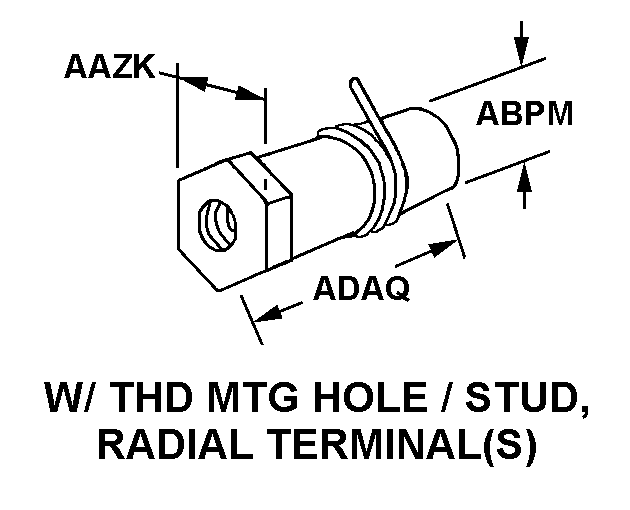

| BODY STYLE | 24B W/THD MTG HOLE/STUD, RADIAL TERMINAL(S) |
