NSN 5910-00-138-5090 T50310, 00-138-5090, 001385090
Product Details | MICA DIELECTRIC VARIABLE CAPACITOR
5910-00-138-5090 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: T50310, 5910-00-138-5090, 00-138-5090, 5910001385090, 001385090
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JUL 1971 | 00-138-5090 | 00722 ( CAPACITOR, VARIABLE, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-138-5090
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-138-5090
Related Products | NSN 5910-00-138-5090
Technical Data | NSN 5910-00-138-5090
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 4.0 TO 40.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -30.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

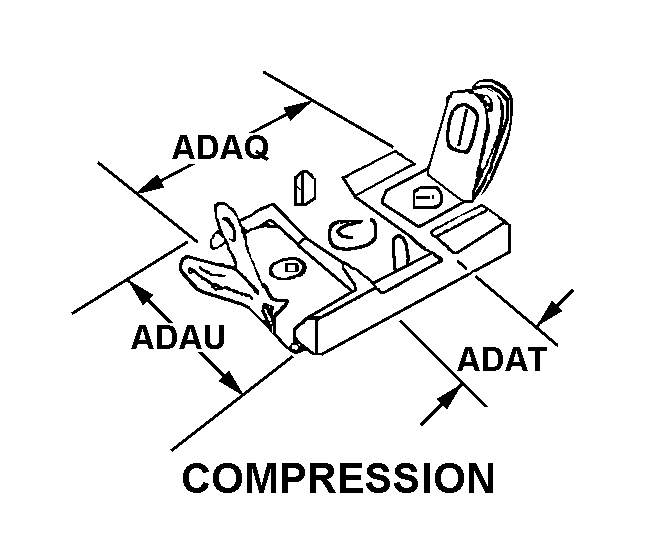

| BODY STYLE | 2 COMPRESSION |
| BODY LENGTH | 0.531 INCHES NOMINAL |
| BODY WIDTH | 0.563 INCHES NOMINAL |
| BODY HEIGHT | 0.375 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE TORQUE | 1.750 INCH-POUNDS NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TAB |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.656 INCHES NOMINAL |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 100000.0 MEGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 500.0 |
