NSN 5910-00-129-6123 CP06SA3, S600301469, S600-30146-9
Product Details | CAPACITOR RETAINER
5910-00-129-6123 An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Part Alternates: CP06SA3, S600301469, S600-30146-9, SPCP06SA3, MILC255, MILC25-5, 7649856, 8026555, 8176981, 5200239003, 5200239-003, 5910-00-129-6123, 00-129-6123, 5910001296123, 001296123
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-129-6123 | 19799 ( RETAINER, CAPACITOR ) |
Drawings & Photos | NSN 5910-00-129-6123
Cross Reference | NSN 5910-00-129-6123
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5200239-003 | 088A2 | C SYSTEMS LLC DBA CRAIG SYSTEMS |
| 7649856 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8026555 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8026555 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8176981 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8176981 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| CP06SA3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC25-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S600-30146-9 | 09017 | EDO |
| SPCP06SA3 | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-129-6123
Related Products | NSN 5910-00-129-6123
Technical Data | NSN 5910-00-129-6123
| Characteristic | Specifications |
|---|---|
| MATERIAL | METAL |
| SURFACE TREATMENT | ANY ACCEPTABLE |

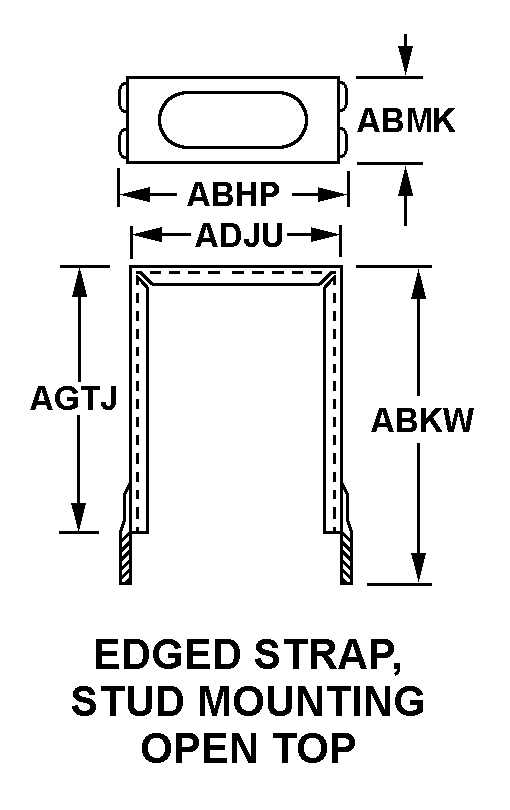

| STYLE DESIGNATOR | 7B EDGED STRAP, STUD MOUNTING OPEN TOP |
| OVERALL LENGTH | 1.812 INCHES NOMINAL |
| OVERALL HEIGHT | 2.188 INCHES MAXIMUM |
| OVERALL WIDTH | 0.766 INCHES MAXIMUM |
| INSIDE LENGTH | ANY ACCEPTABLE |
| DISTANCE FROM MOUNTING SURFACE TO RETAINING SURFACE | 1.562 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD SINGLE MOUNTING FACILITY |
| MOUNTING STUD LENGTH | 0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.138 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.563 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| TEST DATA DOCUMENT | 81349-MIL-C-25 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-25/7 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CP06SA3 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC25-5 |
Restrictions/Controls & Freight Information | NSN 5910-00-129-6123
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5910-00-129-6123
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
