NSN 5910-00-114-1357 CG66E050471G, CG66E050-471G, MILC231837
Product Details | GAS DIELECTRIC VARIABLE CAPACITOR
5910-00-114-1357 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable. Its dielectric may be either gas or vacuum.
Part Alternates: CG66E050471G, CG66E050-471G, MILC231837, MILC23183-7, 586615, 586-615, 5910-00-114-1357, 00-114-1357, 5910001141357, 001141357
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 NOV 1973 | 00-114-1357 | 30689 ( CAPACITOR, VARIABLE, GAS DIELECTRIC ) |

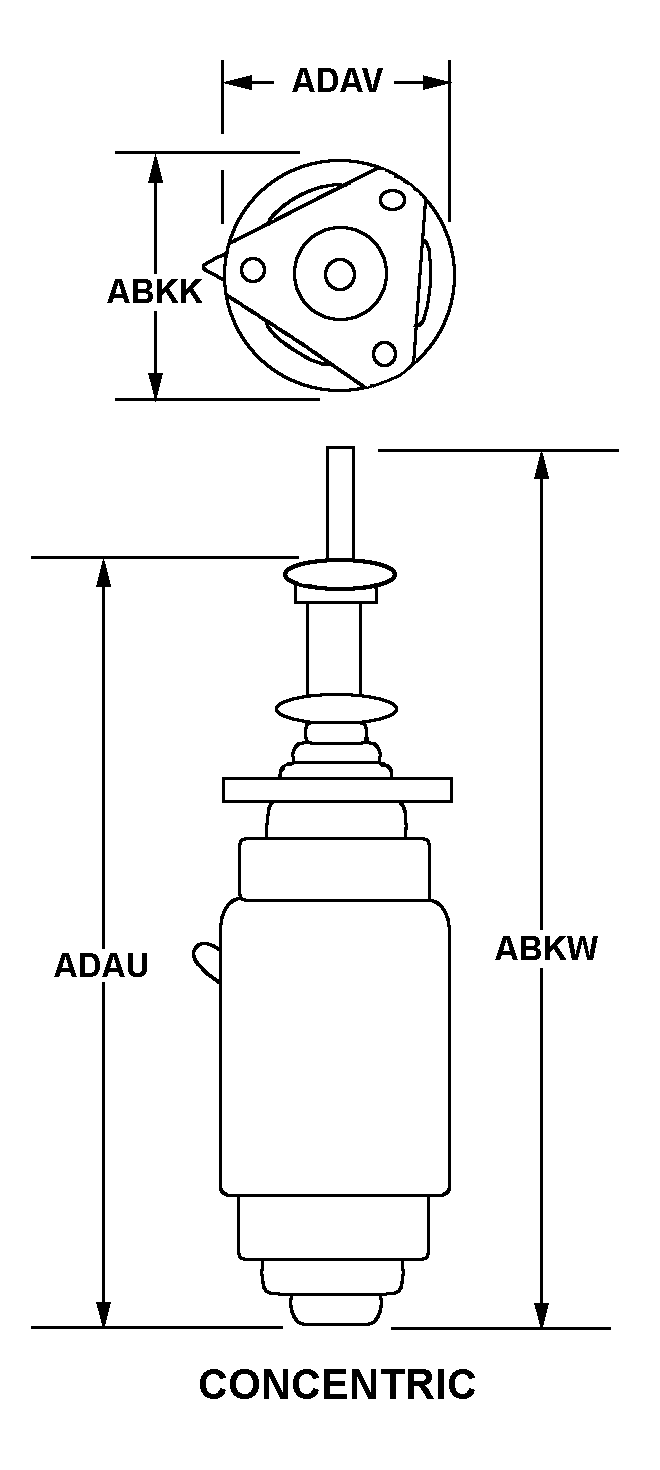

Drawings & Photos | NSN 5910-00-114-1357
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-114-1357
Related Products | NSN 5910-00-114-1357
Technical Data | NSN 5910-00-114-1357
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 5.0 TO 465.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 10000.0 AC PEAK SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 100.0 DEG CELSIUS MAXIMUM |
| ALTERNATING CURRENT RATING IN AMPS | 40.0 |
| BODY STYLE | 61 CONCENTRIC |
| FLANGE DIAMETER | 2.313 INCHES NOMINAL |
| OVERALL HEIGHT | 5.682 INCHES NOMINAL |
| BODY HEIGHT | 5.094 INCHES NOMINAL |
| OVERALL DIAMETER | 2.313 INCHES MAXIMUM |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 GEARED SHAFT |
| SHAFT TYPE | ROUND, PARALLEL FLATTED, THREADED HOLE SINGLE SHAFT |
| WIDTH BETWEEN FLATS | 0.188 INCHES NOMINAL SINGLE SHAFT |
| FIRST FLAT LENGTH | 0.100 INCHES NOMINAL SINGLE SHAFT |
| SHAFT DIAMETER | 0.2492 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.274 INCHES NOMINAL SINGLE SHAFT |
| ADJUSTMENT DEVICE ROTATION | 16.0 TURNS NOMINAL CLOCKWISE |
| ADJUSTMENT DEVICE TORQUE | 40.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 4 THREADED HOLE AND 1 FLANGE |
| MOUNTING FACILITY TYPE AND QUANTITY | 5 TERMINAL |
| TEST DATA DOCUMENT | 81349-MIL-C-23183 SPECIFICATION |
| III DISSIPATION FACTOR AT 25 DEG CELSIUS IN PERCENT | 0.001 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CG66E050-471G |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC23183-7 |
