NSN 5905-01-407-5274 DC125102J, DC125-102J, 01-407-5274
Product Details | THERMAL RESISTOR
5905-01-407-5274 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: DC125102J, DC125-102J, 5905-01-407-5274, 01-407-5274, 5905014075274, 014075274
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JAN 1995 | 01-407-5274 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-01-407-5274
Cross Reference | NSN 5905-01-407-5274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DC125-102J | 15454 | RTIE HOLDINGS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-407-5274
Technical Data | NSN 5905-01-407-5274
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 1000.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -5.0 TO 5.0 |
| MAXIMUM POWER DISSIPATION RATING | 0.125 WATTS |
| AMBIENT TEMP AT FULL RATED POWER | 100.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 125.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 54.0 |

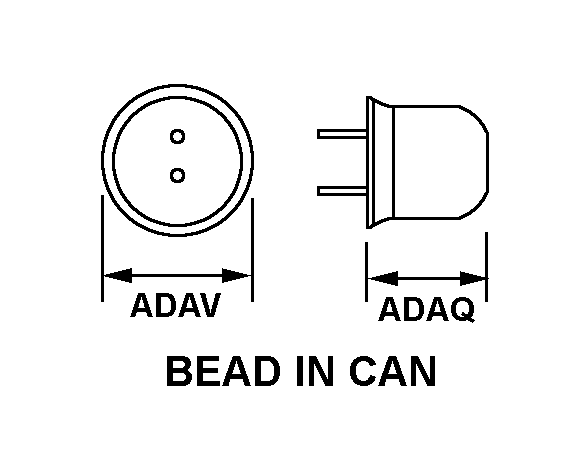

| STYLE DESIGNATOR | 61 BEAD IN CAN |
| BODY LENGTH | 0.245 INCHES NOMINAL |
| OVERALL DIAMETER | 0.350 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.016 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-01-407-5274
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
