NSN 5905-01-197-7348 20873210350, 20873210-350, 87135300435OHMS
Product Details | WIRE WOUND FIXED RESISTOR
5905-01-197-7348 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: 20873210350, 20873210-350, 87135300435OHMS, 5905-01-197-7348, 01-197-7348, 5905011977348, 011977348
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 DEC 1984 | 01-197-7348 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-01-197-7348
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-197-7348
Technical Data | NSN 5905-01-197-7348
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 35.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |

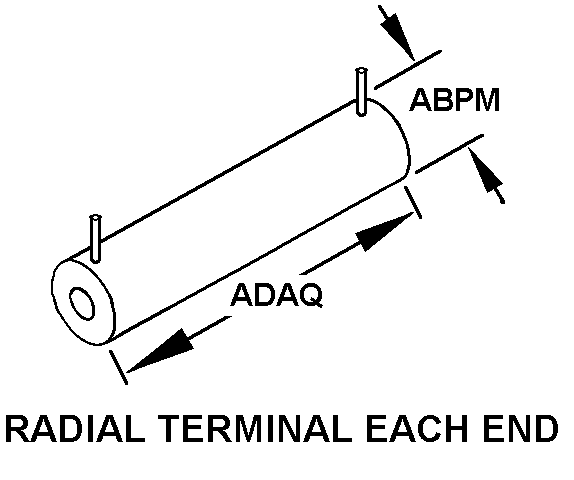

| STYLE DESIGNATOR | 74 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
Restrictions/Controls & Freight Information | NSN 5905-01-197-7348
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
