NSN 5905-01-175-1853 137HM, 176PK, 8TJ107AAB1

Product Details | THERMAL RESISTOR

5905-01-175-1853 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.

Part Alternates: 137HM, 176PK, 8TJ107AAB1, 5905-01-175-1853, 01-175-1853, 5905011751853, 011751853

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 MAR 1984	01-175-1853	00309 ( RESISTOR, THERMAL )

Drawings & Photos | NSN 5905-01-175-1853

Part Number	Request Date	QTY	Origin
5905-01-175-1853	2017-07-198	8	DIBBS
5905-01-175-1853	2017-06-180	8	DIBBS
5905-01-175-1853	2017-06-155	8	DIBBS
5905-01-175-1853	2016-12-340	6	DIBBS
5905-01-175-1853	2016-04-119	6	DIBBS
5905-01-175-1853	2013-11-321	2	DIBBS
5905-01-175-1853	2013-03-72	2	DIBBS
5905-01-175-1853	2012-04-118	2	DIBBS
5905-01-175-1853	2011-03-69	2	DIBBS
5905-01-175-1853	2010-07-183	1	DIBBS
5905-01-175-1853	2010-04-105	1	DIBBS
5905-01-175-1853	2010-01-04	2	DIBBS
5905-01-175-1853	2009-12-365	1	DIBBS
5905-01-175-1853	2009-12-358	1	DIBBS
5905-01-175-1853	2009-05-135	2	DIBBS

Cross Reference | NSN 5905-01-175-1853

Part Number	Cage Code	Manufacturer
137HM	04274	ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND
137HM	60678	ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION
176PK	04274	ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND
176PK	60678	ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION
8TJ107AAB1	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-175-1853

Compare

Related Products | NSN 5905-01-175-1853

5905-01-175-1854, 5905-01-175-1973, 5905-01-175-2160, 5905-01-175-2161, 5905-01-175-2162

Technical Data | NSN 5905-01-175-1853

Characteristic	Specifications
MAXIMUM OPERATING TEMP	350.0 DEG FAHRENHEIT

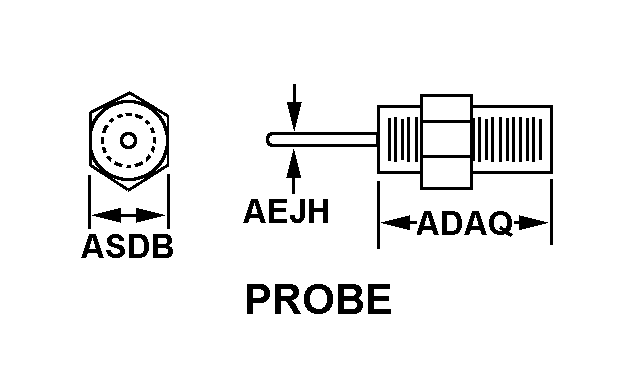

STYLE DESIGNATOR	34 PROBE
BODY LENGTH	2.730 INCHES NOMINAL
PROBE DIAMETER	0.250 INCHES NOMINAL
WIDTH ACROSS FLATS	0.875 INCHES NOMINAL
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR	UNJF
MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER	0.625 INCHES
MOUNTING THREAD QUANTITY	18 PER INCH
INCLOSURE TYPE	ENCASED
TERMINAL TYPE AND QUANTITY	1 CONNECTOR, PLUG
RELIABILITY INDICATOR	NOT ESTABLISHED

Restrictions/Controls & Freight Information | NSN 5905-01-175-1853

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	B	ESD sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062960	REOSTATS/PARTS NOI
Less than car load rating	J	100.2
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5905-01-175-1853

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	QD	SX:MISCELLANEOUS INSTRUMENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
