NSN 5905-01-167-9468 10307588, 10-30758-8, 7835451
Product Details | THERMAL RESISTOR
5905-01-167-9468 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 10307588, 10-30758-8, 7835451, 783545-1, 5905-01-167-9468, 01-167-9468, 5905011679468, 011679468
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-167-9468 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-01-167-9468
Demand History | NSN 5905-01-167-9468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-167-9468 | 2009-12-365 | 2 | DIBBS |
| 5905-01-167-9468 | 2009-01-12 | 2 | DIBBS |
| 5905-01-167-9468 | 2008-07-196 | 5 | DIBBS |
| 5905-01-167-9468 | 2007-04-95 | 2 | DIBBS |
| 5905-01-167-9468 | 2007-04-93 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-167-9468
Technical Data | NSN 5905-01-167-9468
| Characteristic | Specifications |
|---|---|

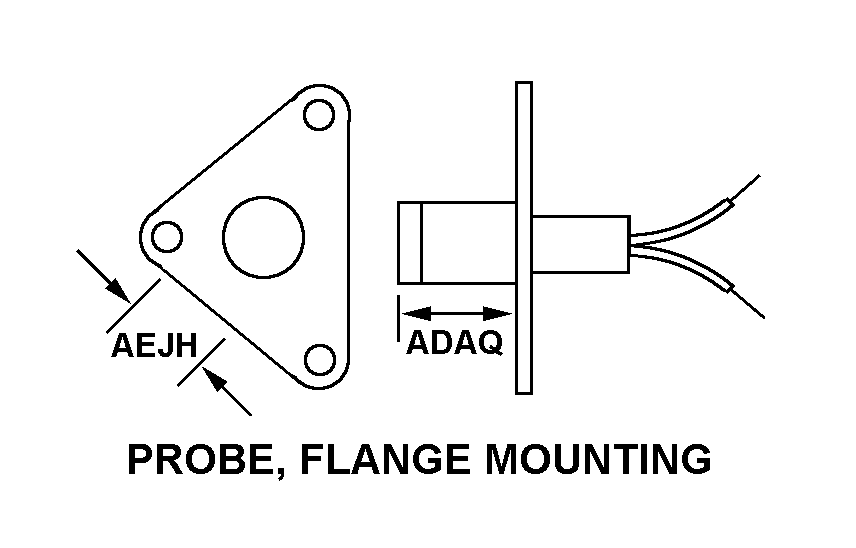

| STYLE DESIGNATOR | 30 PROBE, FLANGE MOUNTING |
| BODY LENGTH | 4.000 INCHES NOMINAL |
| PROBE DIAMETER | 1.020 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
| TERMINAL LENGTH | 0.840 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.572 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 783545-1 |
Restrictions/Controls & Freight Information | NSN 5905-01-167-9468
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
