NSN 5905-01-167-8646 75026111, 750261-1-1, 01-167-8646
Product Details | THERMAL RESISTOR
5905-01-167-8646 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 75026111, 750261-1-1, 5905-01-167-8646, 01-167-8646, 5905011678646, 011678646
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 DEC 1983 | 01-167-8646 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-01-167-8646
Demand History | NSN 5905-01-167-8646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 750261-1-1 | 2020-10-294 | 3 | DIBBS |
| 750261-1-1 | 2020-08-240 | 1 | DIBBS |
| 750261-1-1 | 2020-07-212 | 2 | DIBBS |
| 5905-01-167-8646 | 2018-05-142 | 2 | DIBBS |
| 5905-01-167-8646 | 2018-04-119 | 2 | DIBBS |
| 5905-01-167-8646 | 2017-08-235 | 2 | DIBBS |
| 5905-01-167-8646 | 2010-12-348 | 5 | DIBBS |
| 5905-01-167-8646 | 2010-07-209 | 2 | DIBBS |
| 5905-01-167-8646 | 2010-02-36 | 2 | DIBBS |
| 5905-01-167-8646 | 2008-12-350 | 16 | DIBBS |
| 5905-01-167-8646 | 2008-01-08 | 10 | DIBBS |
| 5905-01-167-8646 | 2007-10-288 | 19 | DIBBS |
Cross Reference | NSN 5905-01-167-8646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 750261-1-1 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-167-8646
Related Products | NSN 5905-01-167-8646
Technical Data | NSN 5905-01-167-8646
| Characteristic | Specifications |
|---|---|

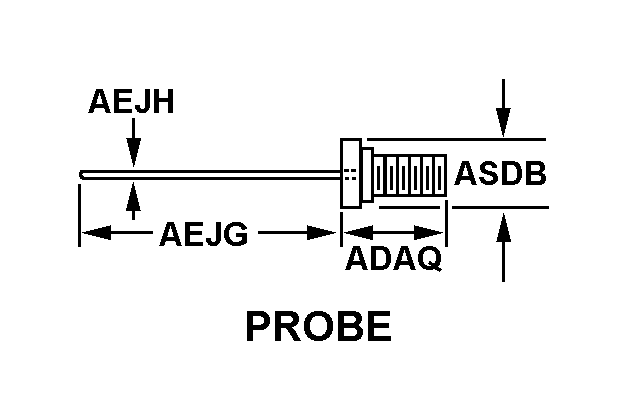

| STYLE DESIGNATOR | 31 PROBE |
| BODY LENGTH | 1.430 INCHES NOMINAL |
| PROBE LENGTH | 1.500 INCHES NOMINAL |
| PROBE DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.252 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.375 INCHES |
| MOUNTING THREAD QUANTITY | 24 PER INCH |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 750261-1-1 |
Restrictions/Controls & Freight Information | NSN 5905-01-167-8646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-01-167-8646
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QD | SX:MISCELLANEOUS INSTRUMENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
