Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR

5905-01-132-4244 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.

Part Alternates: DFN60094, DFN-60-094, 5905-01-132-4244, 01-132-4244, 5905011324244, 011324244

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 30 MAY 1982 01-132-4244

Drawings & Photos | NSN 5905-01-132-4244


Cross Reference | NSN 5905-01-132-4244

Part Number Cage Code Manufacturer
DFN-60-094 80103 VEECO INSTRUMENTS INC LAMBDA DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-132-4244

Technical Data | NSN 5905-01-132-4244

Characteristic Specifications
ELECTRICAL RESISTANCE 6.000 OHMS
RESISTANCE TOLERANCE IN PERCENT -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS 40.000 FREE AIR
INCLOSURE METHOD ENCAPSULATED

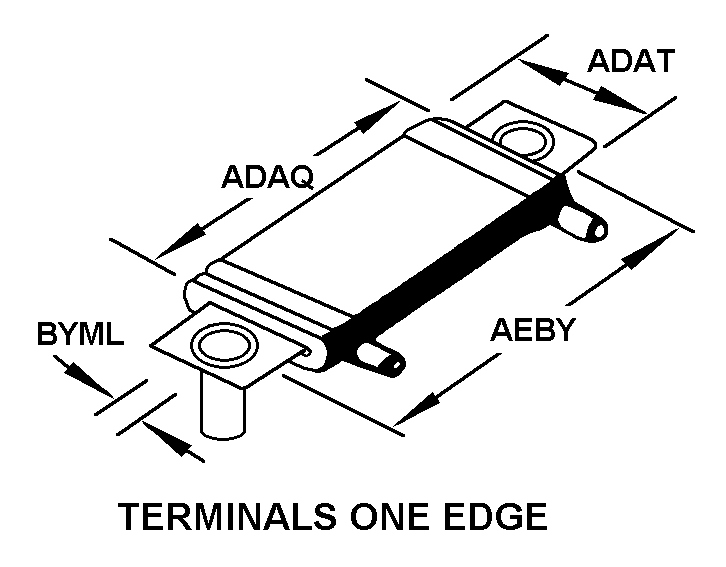

STYLE DESIGNATOR 12 TERMINALS ONE EDGE
BODY LENGTH 2.000 INCHES NOMINAL
BODY WIDTH 1.125 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH 2.750 INCHES NOMINAL
MOUNTING HOLE SIZE 0.196 INCHES NOMINAL
TERMINAL TYPE TAB, SOLDER LUG
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL LENGTH 0.438 INCHES NOMINAL
TERMINAL WIDTH 0.188 INCHES NOMINAL
