NSN 5905-01-092-5724 19391193, 1939-119-3, 581R889
Product Details | MOTOR DRIVEN VARIABLE RESISTOR
5905-01-092-5724 A resistor, whose resistance value is controlled by an electric motor, which is coupled to the resistor shaft by a friction type clutch.
Part Alternates: 19391193, 1939-119-3, 581R889, 581R889G01, 5905-01-092-5724, 01-092-5724, 5905010925724, 010925724
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAR 1980 | 01-092-5724 | 60948 ( RESISTOR, VARIABLE, MOTOR DRIVEN ) |
Drawings & Photos | NSN 5905-01-092-5724
Demand History | NSN 5905-01-092-5724
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-092-5724 | 2016-05-31 | 1 | DIBBS |
| 5905-01-092-5724 | 2016-05-17 | 1 | DIBBS |
| 5905-01-092-5724 | 2015-12-07 | 11 | DIBBS |
| 5905-01-092-5724 | 2015-11-18 | 11 | DIBBS |
| 5905-01-092-5724 | 2015-05-20 | 11 | DIBBS |
| 5905-01-092-5724 | 2014-10-30 | 12 | DIBBS |
| 5905-01-092-5724 | 2014-09-03 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-092-5724
Related Products | NSN 5905-01-092-5724
Technical Data | NSN 5905-01-092-5724
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| RESISTANCE ELEMENT TYPE PER SECTION | SINGLE SECTION WIRE WOUND |
| ELECTRICAL RESISTANCE PER SECTION | 16.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -3.0 TO 3.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO 0.50 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.6 FREE AIR SINGLE SECTION |

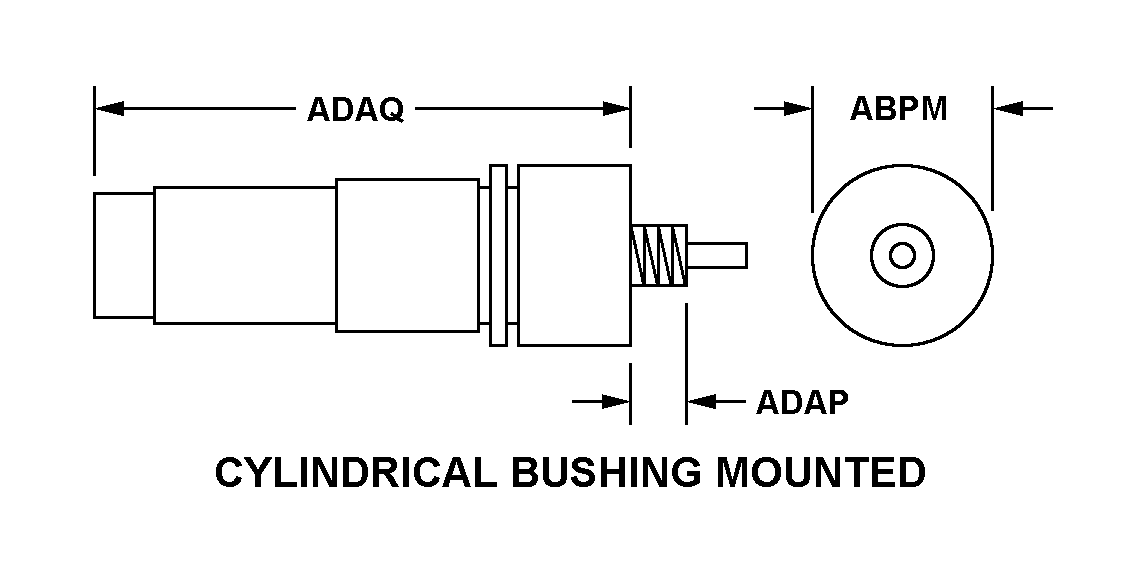

| BODY STYLE | 3A CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.380 INCHES NOMINAL |
| BODY LENGTH | 4.910 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.310 INCHES NOMINAL |

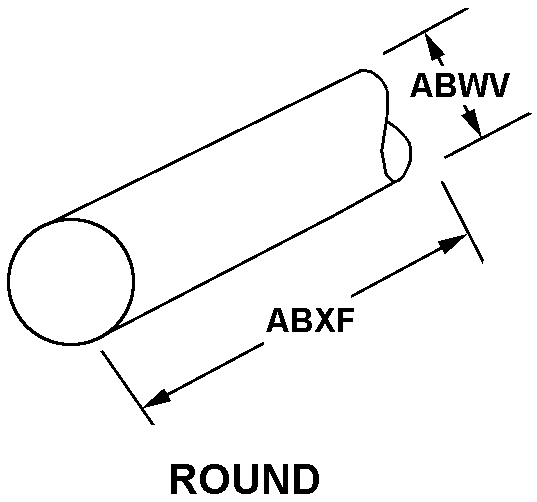

| SHAFT STYLE | 1B ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.810 INCHES NOMINAL |
| MOUNTING METHOD | CLAMP RING AND STANDARD BUSHING |
| MOUNTING FACILITY QUANTITY | 2 |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| MOTOR TYPE | SERVO |
| MOTOR VOLTAGE TYPE AND RATING IN VOLTS | 100.0 DC |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG AND 2 WIRE LEAD |
| PRECIOUS MATERIAL AND LOCATION | TAB,SOLDER LUG TERMINAL SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5905-01-092-5724
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-01-092-5724
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
